StarTech.com 150UE-USB4DOCKTRIPLE laptop dock / port replicator

StarTech.com Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless. Connectivity technology: Wired, Host interface: USB4, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Grey, Data transfer rate: 40 Gbit/s, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: ChromeOS

Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging

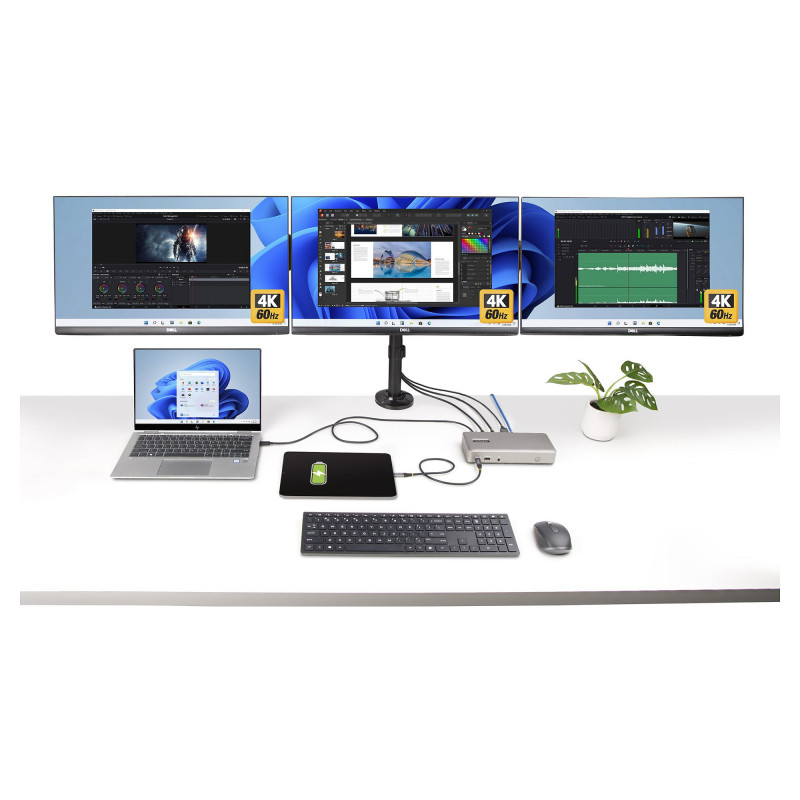

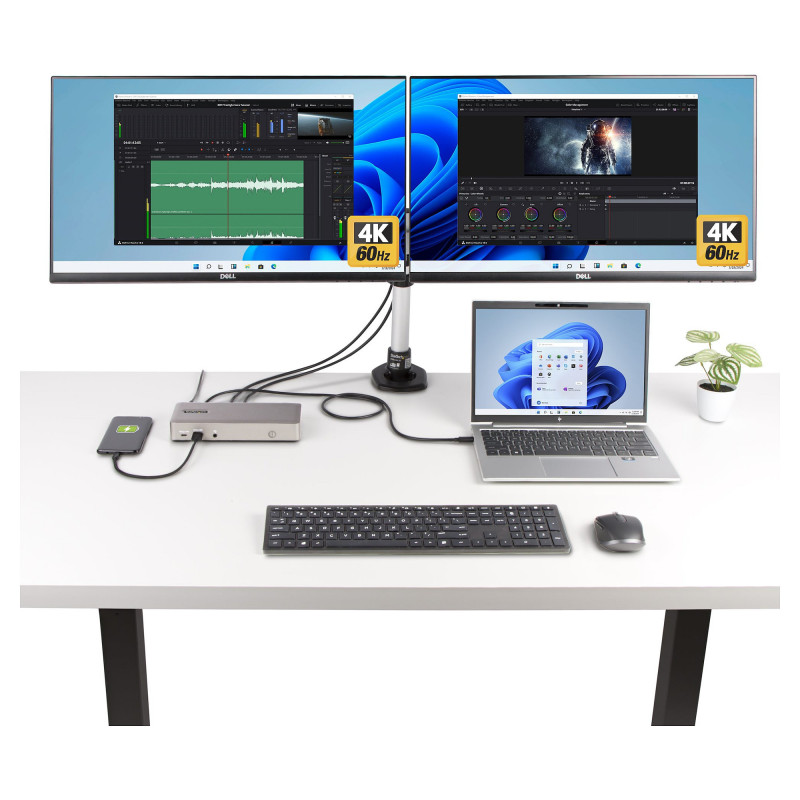

Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.

High-Performance Display and Networking

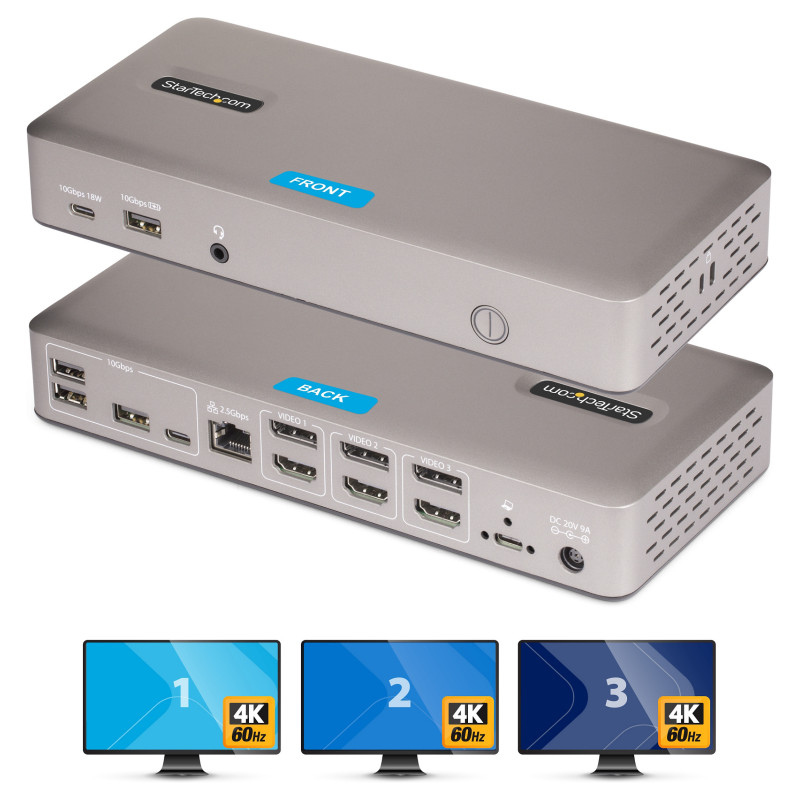

Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.

Comprehensive Connectivity and Power

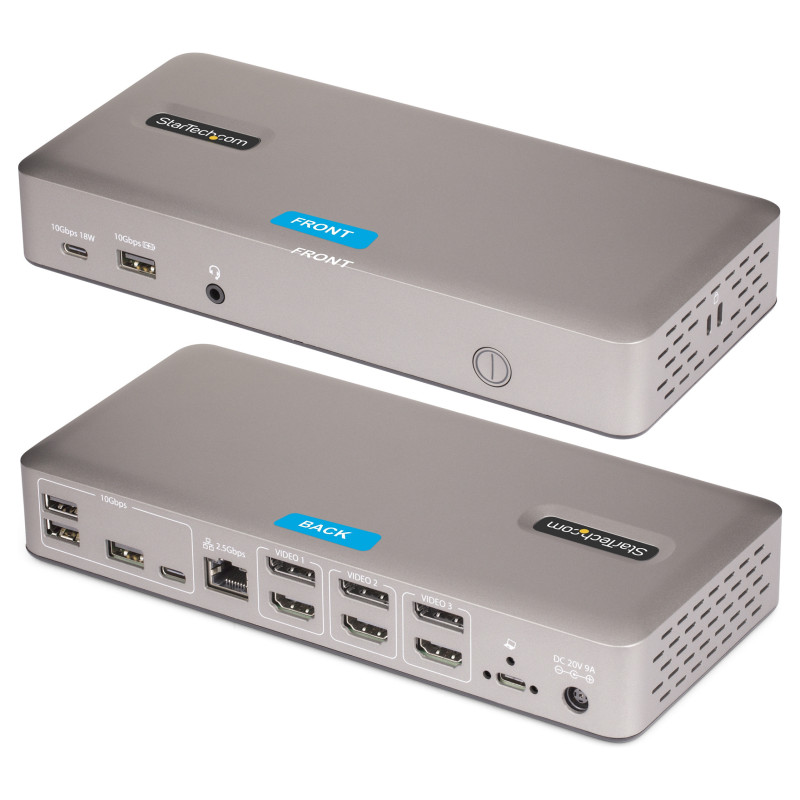

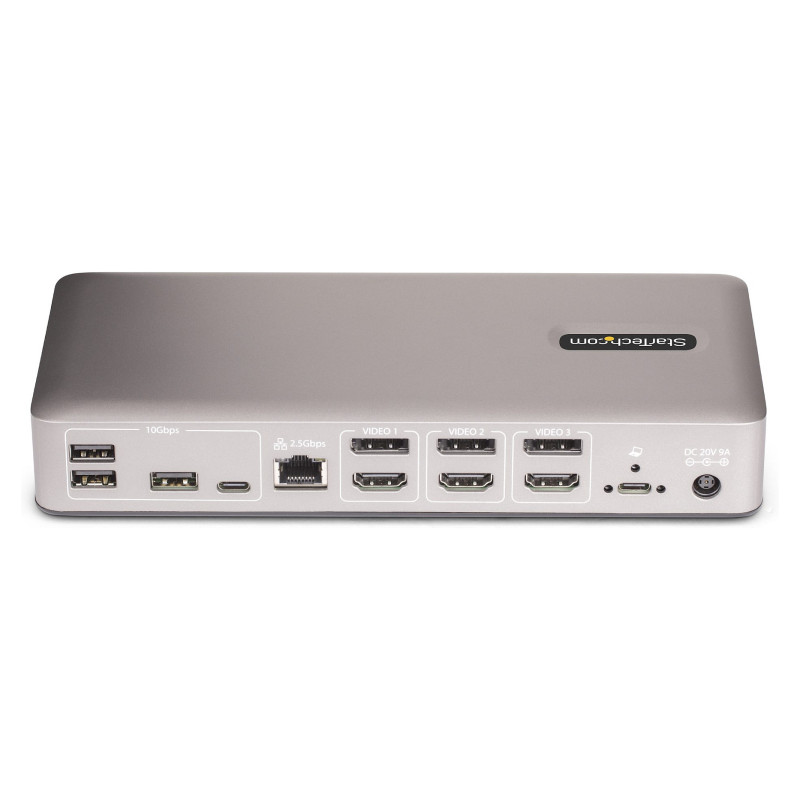

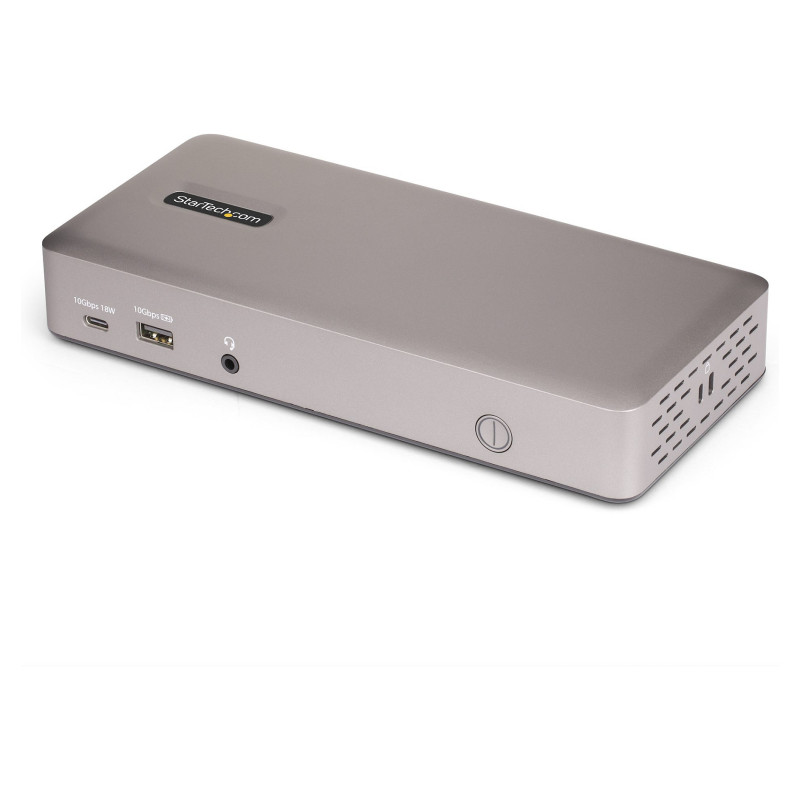

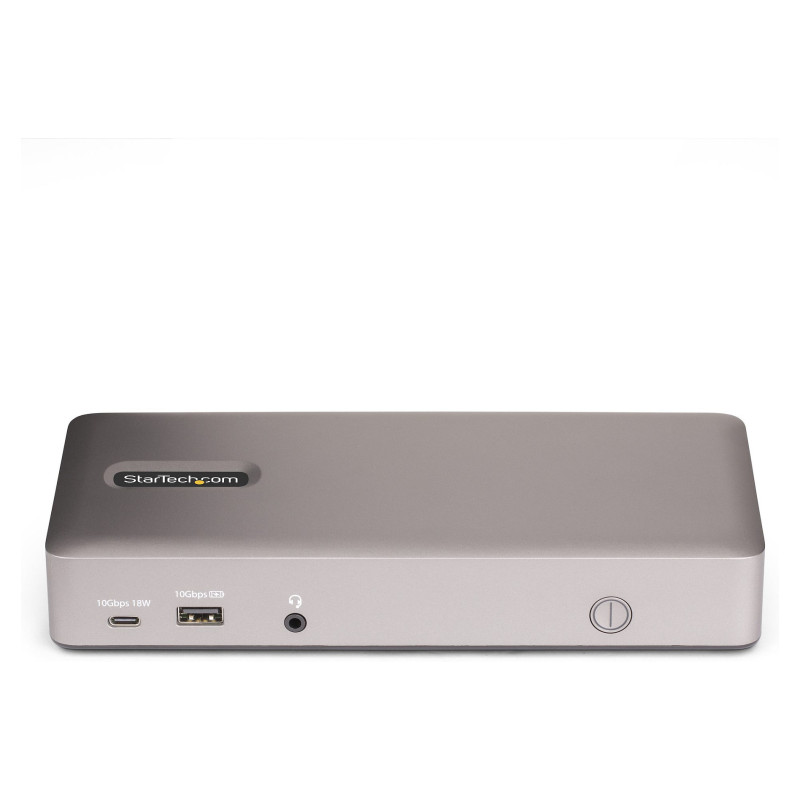

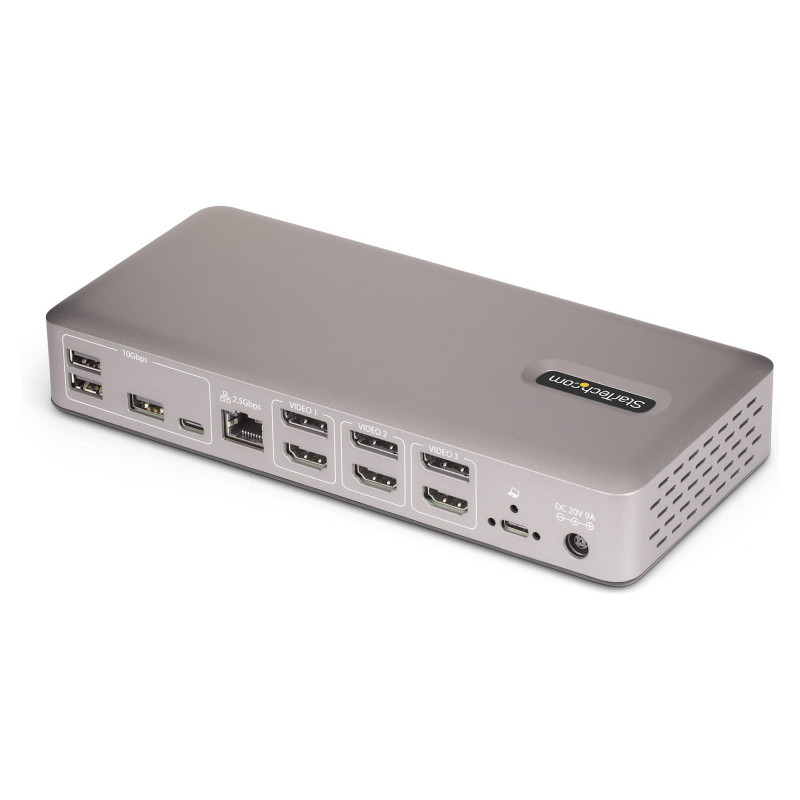

The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.

Driverless Deployment with Secure Mounting Options

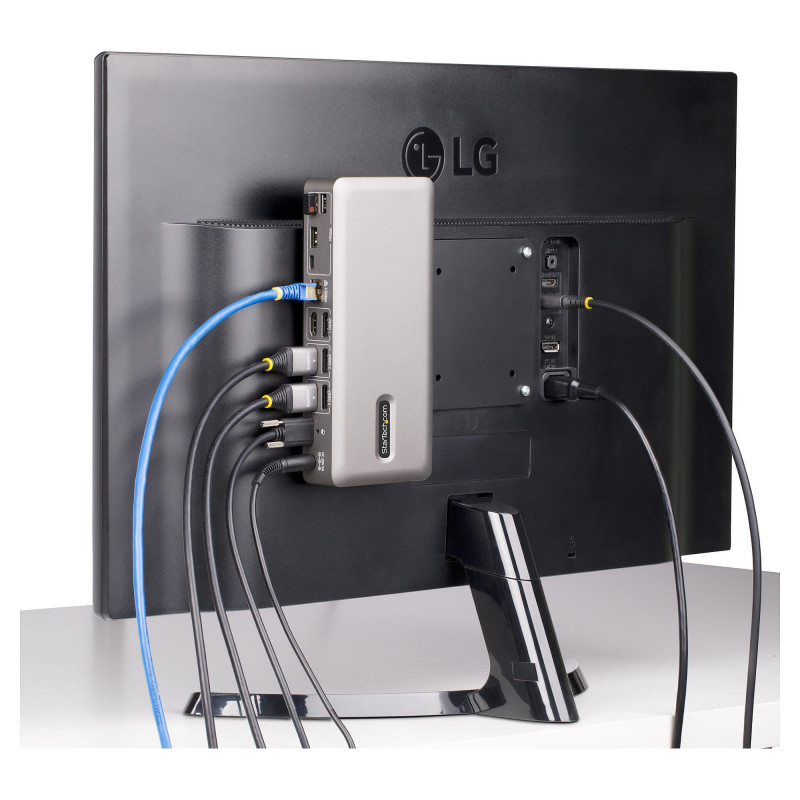

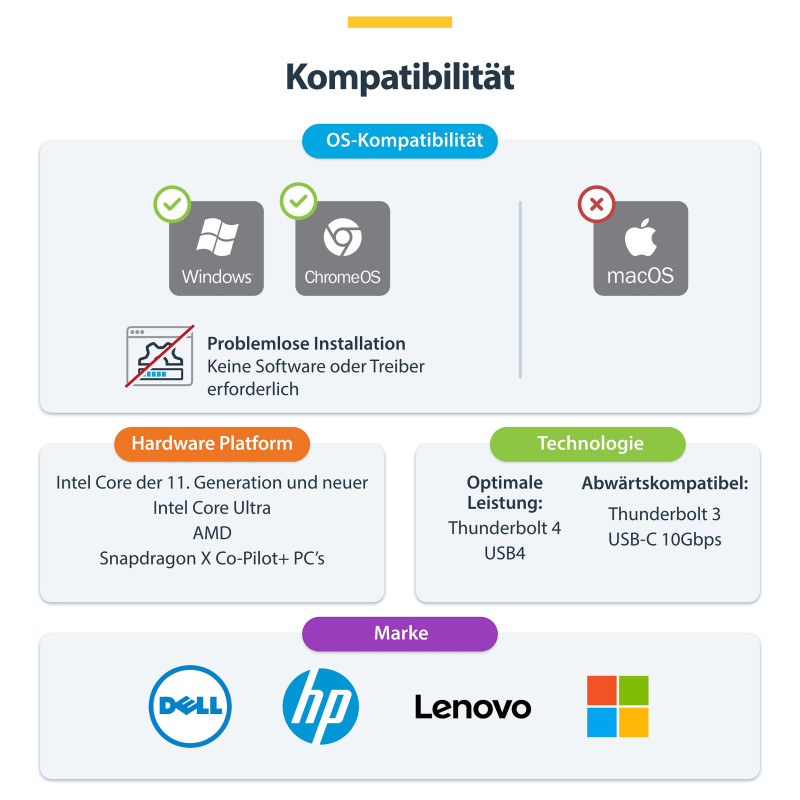

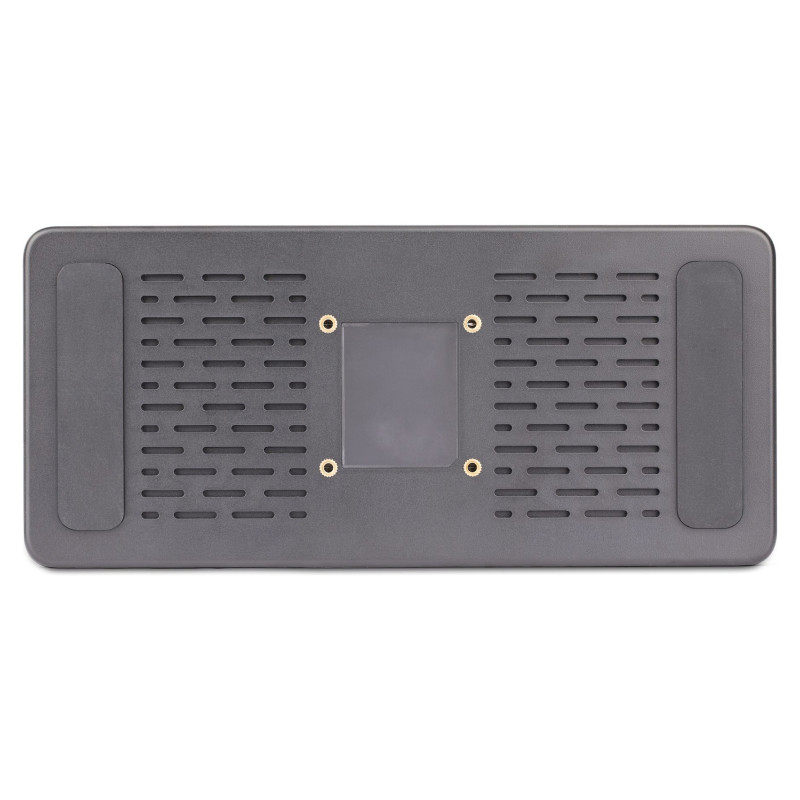

Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.

Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
HDMI ports quantity: 3
DisplayPorts quantity: 3
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex

Performance

Data transfer rate: 40 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 3
Maximum refresh rate: 144 Hz

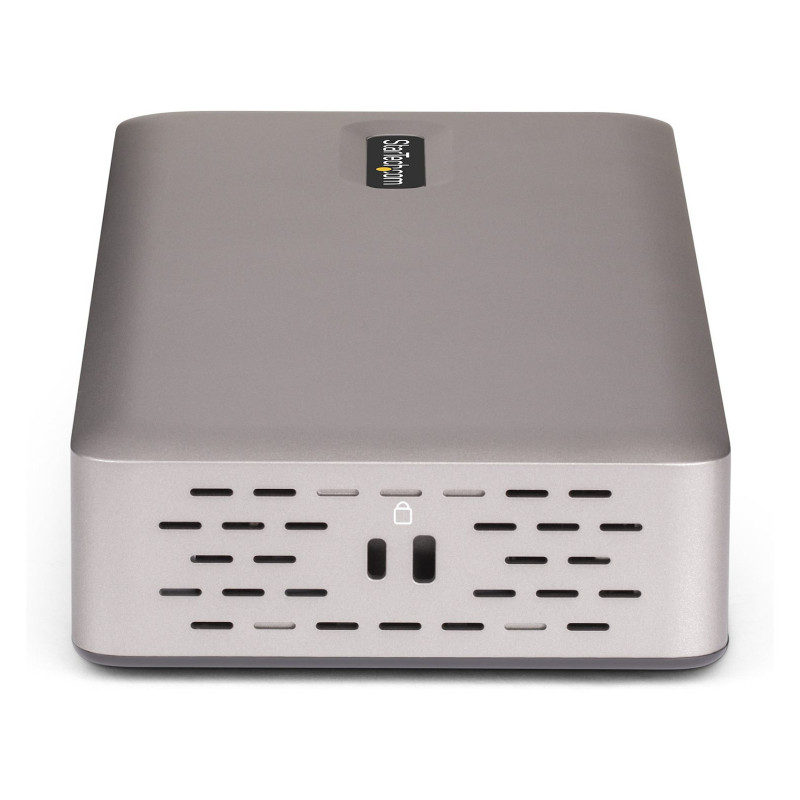

Feature: Cable lock slot
Cable lock slot type: Kensington, Nano
Product colour: Grey
Feature: UASP support

Power

AC input voltage: 100 - 240 V
Input current: 2.5 A
Output voltage: 20 V
Output current: 9 A
Power consumption (max): 180 W
Compatible power plug types: US

Software

Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 95 mm
Depth: 210 mm
Height: 34 mm
Weight: 1.06 kg

Packaging data

Package width: 145 mm
Package depth: 235 mm
Package height: 99 mm
Package weight: 1.4 kg

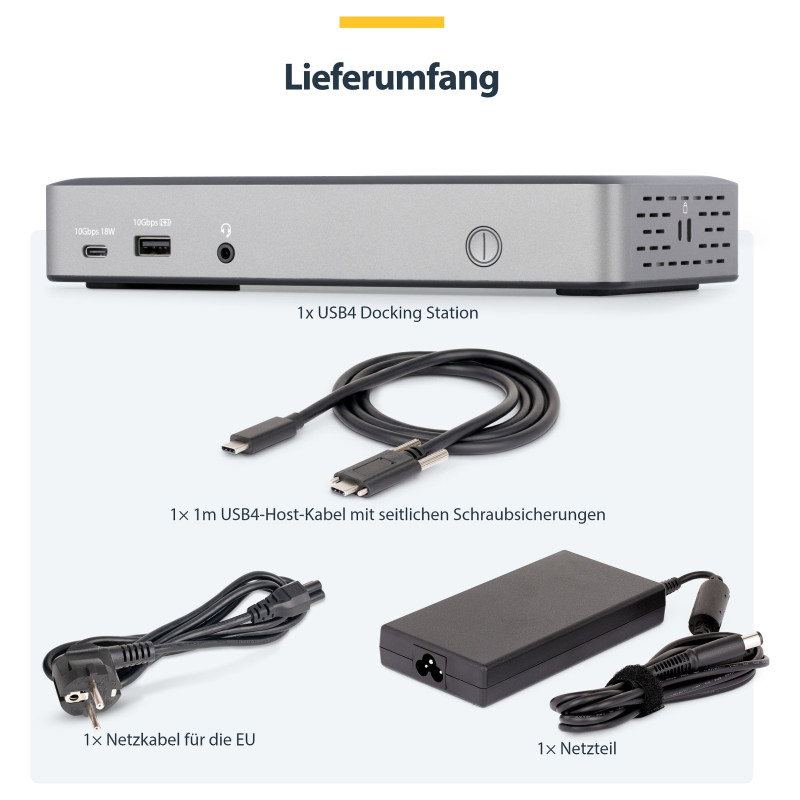

Packaging content

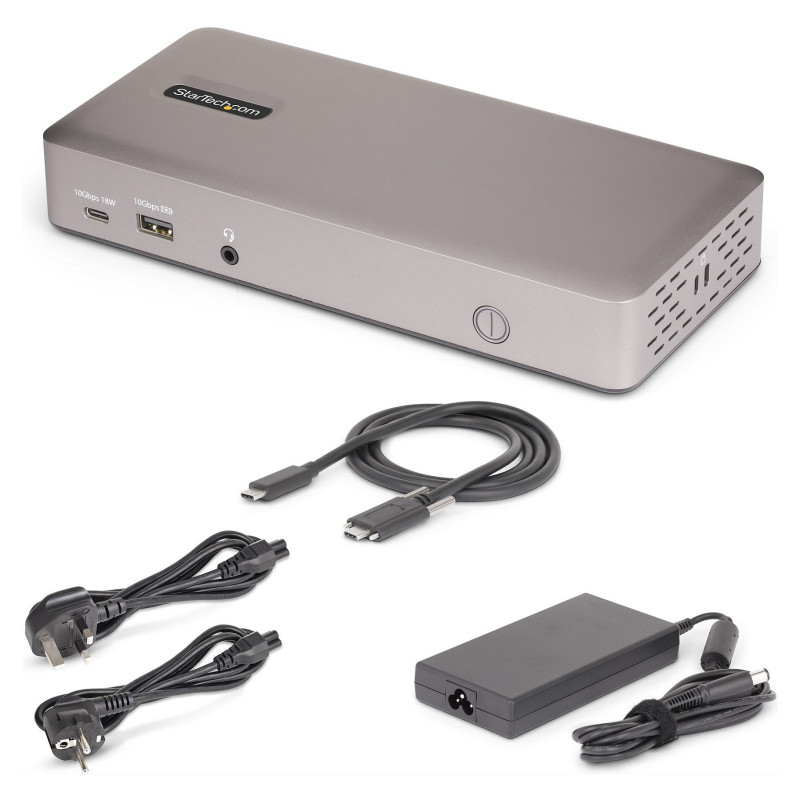

Cables included: USB Type-C
Feature: AC adapter included

Technical details

Compliance certificates: CE

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case width: 310 mm
Master (outer) case length: 380 mm
Master (outer) case height: 285 mm

Other features

Chipset: VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469
