Conceptronic DONN31B laptop dock / port replicator

Conceptronic DONN31B 17-in-1 DisplayLink Docking Station USB 3.2 Gen 2. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.3bz. Product colour: Black, Compatible memory cards: SD, SDHC, SDXC, Data transfer rate: 10 Gbit/s. Power source type: DC. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 5.0, Android 5.1,...

Introducing the 17-in-1 DisplayLink Docking Station - a versatile and powerful hub designed to enhance your productivity and streamline your workflow.

With support for HDMI and DisplayPort resolutions up to 4K at 60Hz, you can enjoy stunning visuals and immersive multimedia experiences. Leveraging DisplayLink technology, the docking station supports multiple extended displays, allowing your MacBook to use up to two monitors with different content. Please note that DisplayLink driver installation is required.

Offering a diverse selection of ports, including 4 x USB-C 10Gbps, 2 x USB-A 10Gbps, with one USB-C supporting 30W charging to effortlessly connect all your peripherals. The SD 4.0 slot ensures convenient and high-speed data transfers.

For added security, the docking station includes both standard and nano security slots, providing flexible security options and peace of mind for your devices.
The docking station seamlessly integrates into your workflow, whether at home, in the office, or on the go.

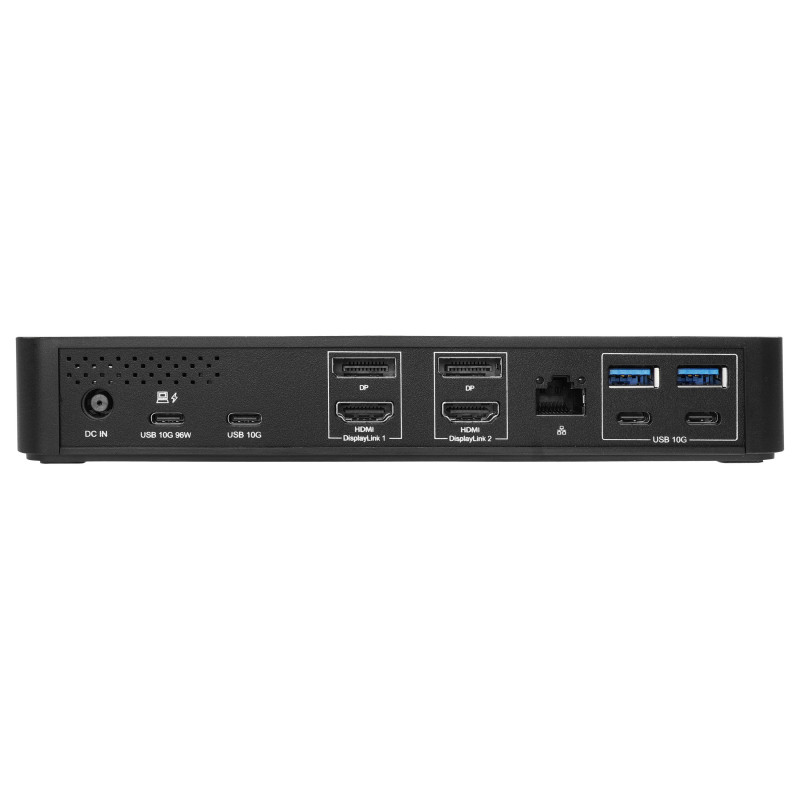

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.2
Feature: Microphone in
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.3bz

Performance

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Data transfer rate: 10 Gbit/s
Feature: Cable lock slot
Cable lock slot type: Nano
Product colour: Black
Feature: On/off switch
Country of origin: China

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 202.8 mm
Depth: 95 mm
Height: 32.6 mm
Weight: 370 g

Packaging data

Package width: 257 mm
Package depth: 135.5 mm
Package height: 117.5 mm
Package weight: 1.12 kg

Packaging content

Cables included: AC, USB Type-C to USB Type-C
Feature: AC adapter included
Feature: Quick start guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 6 pc(s)
Master (outer) case width: 278 mm
Master (outer) case length: 376 mm
Master (outer) case height: 310 mm
Master (outer) case gross weight: 11.7 kg
Customs product code (TARIC): 8471800000
Harmonized System (HS) code: 8471800000
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 170.2 cm

Other features

Master (outer) cases per pallet: 40 pc(s)
