Conceptronic DONN29G laptop dock / port replicator

Conceptronic DONN29G 6-in-1 USB 3.2 Gen 2 Docking Station, 4K60Hz HDMI, USB-A 10Gbps x 2, USB-C 10Gbps, GbE LAN, 140W USB PD 3.1. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab. Product colour: Grey, Data transfer rate: 10 Gbit/s, Housing material: Aluminium. Power source type: USB, USB cable length: 0.25 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 5.0, Android 5.1,...

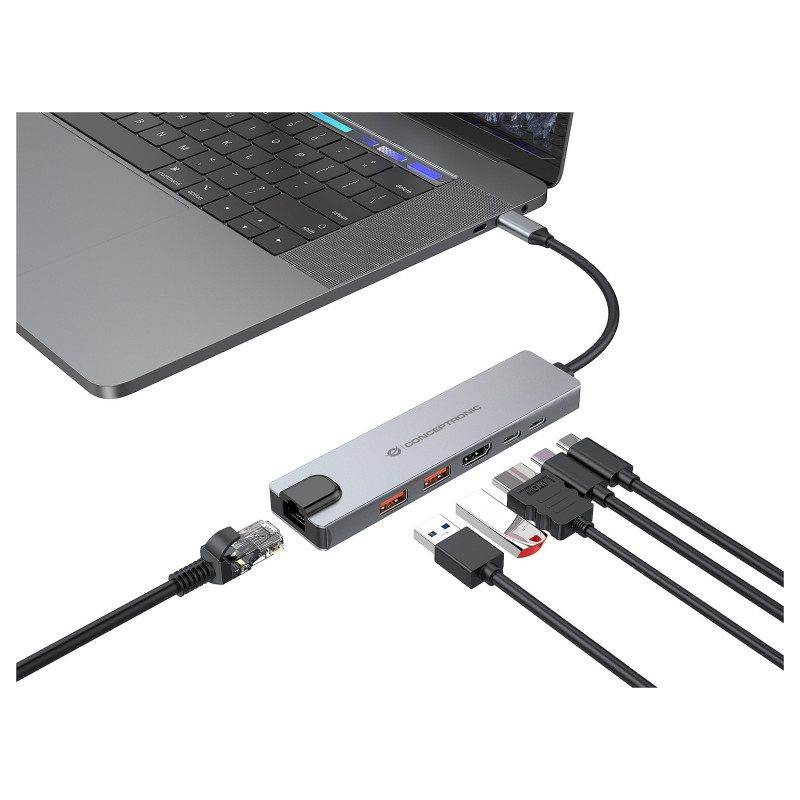

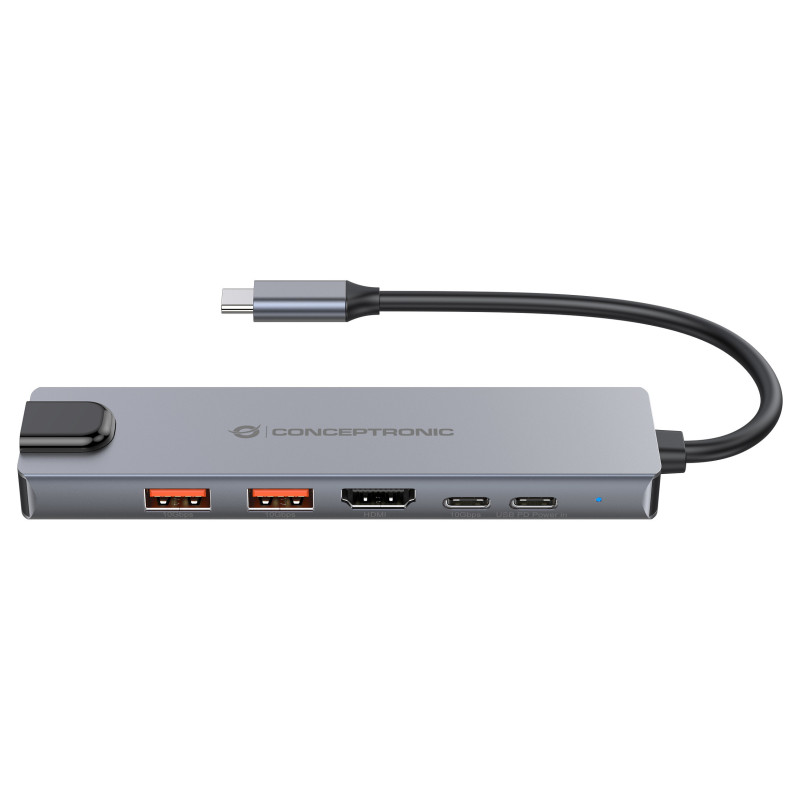

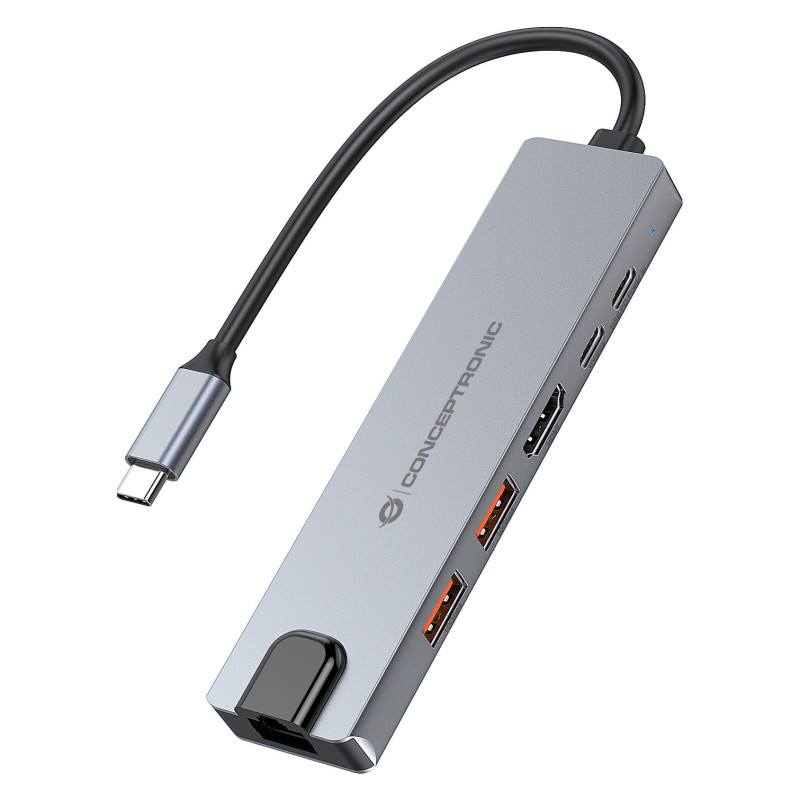

This 6-in-1 Docking Station expands your device's USB Type-C functionality with HDMI, USB-C PD, USB-C (10Gbps), USB-A (10Gbps), and RJ45 ports. It's an ideal solution for MacBooks or Windows laptops with built-in wireless connectivity but no Ethernet port. Featuring a Gigabit Ethernet connection, it ensures fast and reliable wired network access. Additionally, the docking station supports up to 140W power delivery for compatible laptops or tablets with USB-C PD 3.1 support.

The docking station enables USB-C-compatible laptops, tablets, or smartphones to connect to an HDMI-enabled display, delivering stunning 4K Ultra HD resolution at a 60Hz refresh rate. With data transfer speeds of up to 10Gbps, it ensures stable and efficient performance, making it ideal for home entertainment, office presentations, and classroom teaching.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 140 W
HDMI ports quantity: 1
HDMI version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Networking standards: IEEE 802.3ab

Performance

Data transfer rate: 10 Gbit/s
Product colour: Grey
Feature: Plug and Play
Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
USB cable length: 0.25 m

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight & dimensions

Width: 131.5 mm
Depth: 32.5 mm
Height: 14 mm
Weight: 60 g

Packaging data

Package width: 173 mm
Package depth: 23 mm
Package height: 75 mm
Package weight: 80 g

Packaging content

Feature: Quick start guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 100 pc(s)
Master (outer) case width: 460 mm
Master (outer) case length: 395 mm
Master (outer) case height: 195 mm
Master (outer) case gross weight: 8.8 kg
Harmonized System (HS) code: 8471800000
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 171.2 cm

Other features

Master (outer) cases per pallet: 32 pc(s)
