Conceptronic DONN20G

Conceptronic DONN20G 10-in-1 USB 3.2 Gen 1 Docking Station, HDMI, VGA, USB-A 3.0 x 3, SD, TF/MicroSD, Audio, GbE LAN, 100W USB PD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, USB cable length: 0.25 m. Windows operating systems supported: Windows 7 Ultimate x64, Windows Vista Home Premium x64, Windows 10, Windows 7 x64, Windows Vista..., Mac operating systems supported: Mac OS X 10.15 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.15.3 Catalina, Mac OS X 10.7.5 Lion, Mac..., Mobile operating systems supported: Android 7.1, Android 7.1.2, Android 8.0, Android 10.0, Android 8.1, Android 11.0, Android 9.0,...

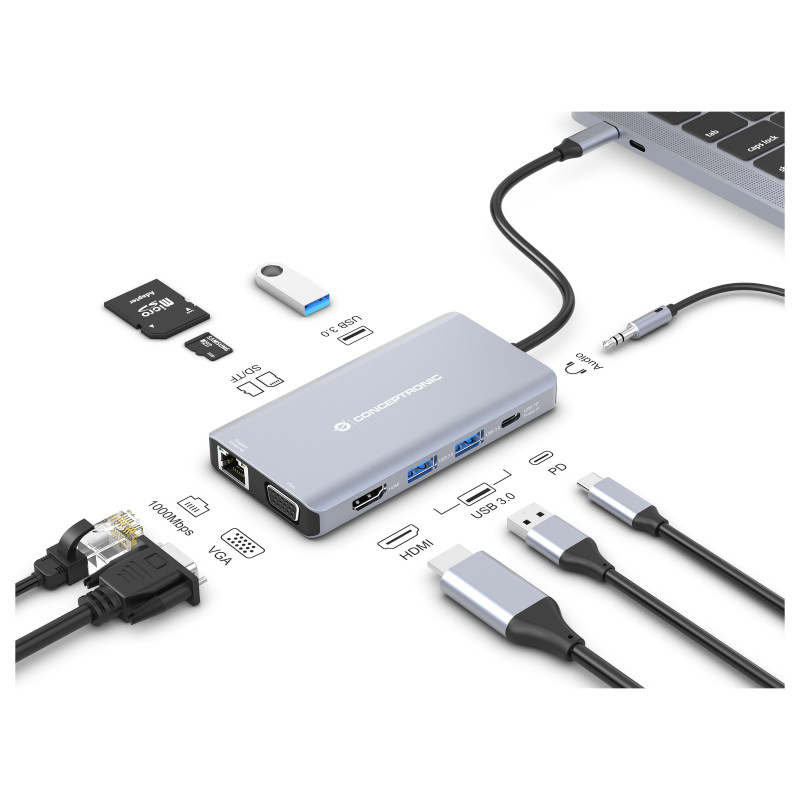

This 10-in-1 Docking Station makes it possible to expand your device's USB Type-C capacity with HDMI/VGA/USB-C PD/USB 3.0/SD/TF/GbE/AUX ports. The docking station provides an easy way to add HDTV, or equipment such as a monitor or projector to any USB-C device such as a smartphone, portable gaming console, MacBook, Chromebook Pixel or any similar late-model laptop with USB-C ports. The multiport video adapter lets you mirror or extend content on two additional monitors simultaneously (1 x HDMI, 1 x VGA), creating a dual-screen workstation. Perfect for home entertainment, office presentations and classroom teaching.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 1.4
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 4096 x 2160 pixels
Maximum analog resolution: 1920 x 1080 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Grey
Feature: Plug and Play
Country of origin: China

Power

Power source type: USB
USB cable length: 0.25 m

Software

Other operating systems supported: ChromeOS

Weight & dimensions

Width: 110 mm
Depth: 50.8 mm
Height: 14.5 mm
Weight: 104 g

Packaging data

Package width: 95 mm
Package depth: 35 mm
Package height: 200 mm
Package weight: 142 g

Packaging content

Feature: Quick start guide

Logistics data

Products per master (outer) case: 40 pc(s)
Master (outer) case width: 370 mm
Master (outer) case length: 255 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 6.48 kg
