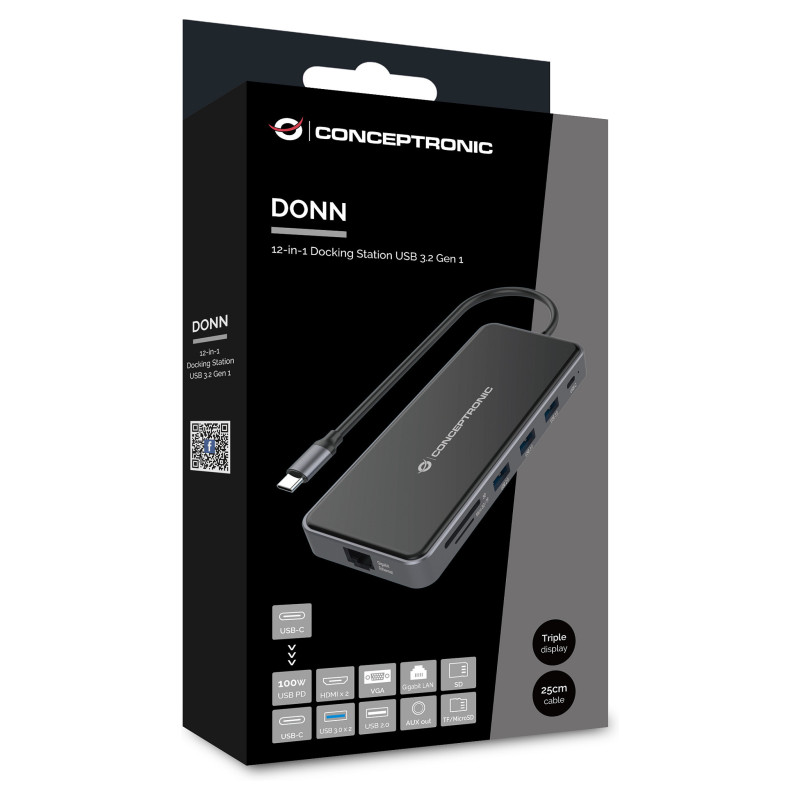

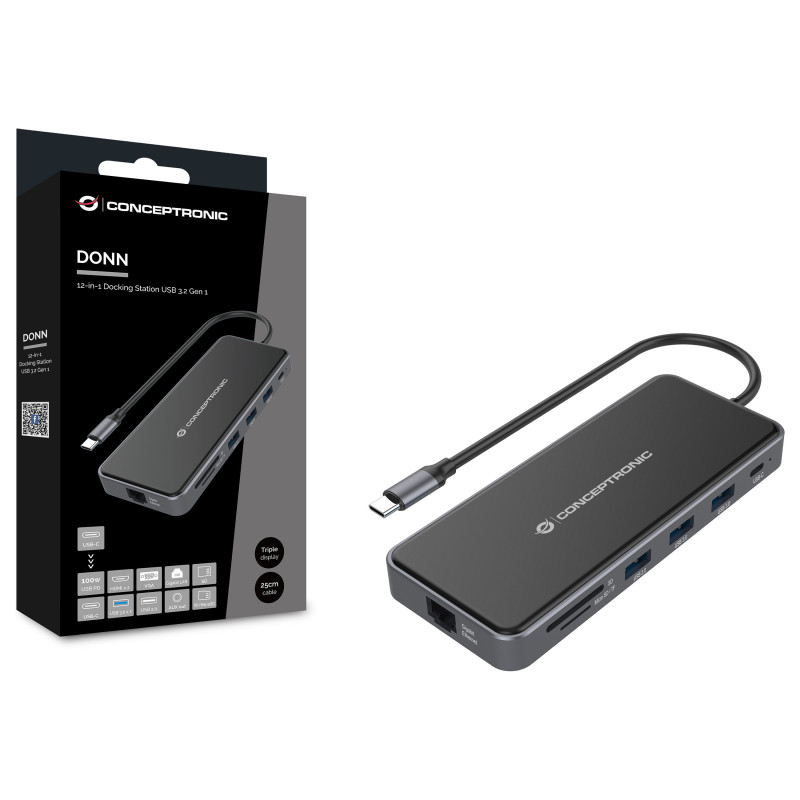

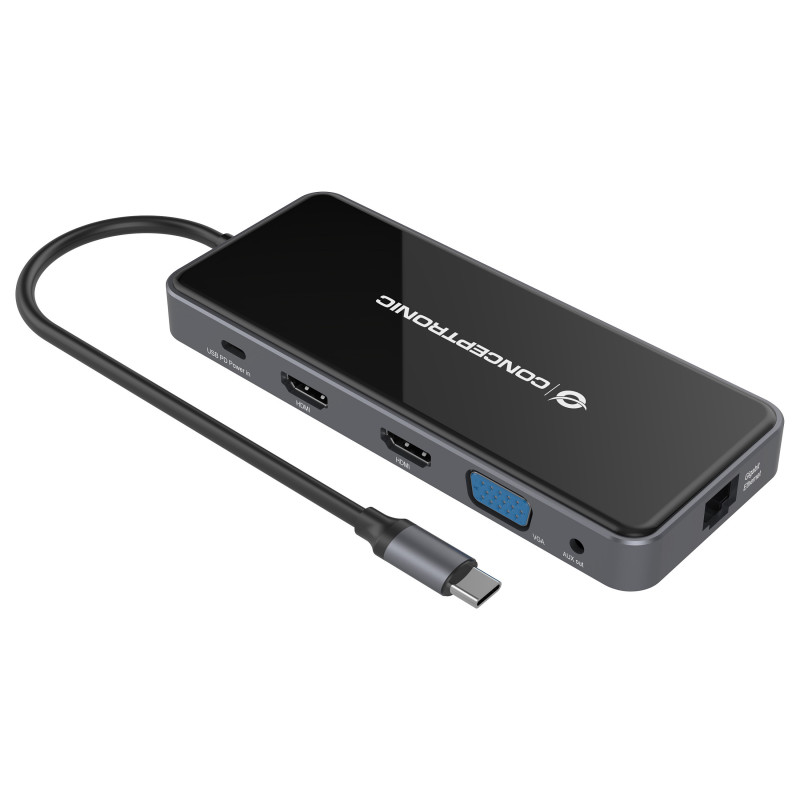

Conceptronic DONN15G laptop dock / port replicator

Conceptronic DONN15G. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5000 Gbit/s. USB cable length: 0.25 m. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Mobile operating systems supported: Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0,...

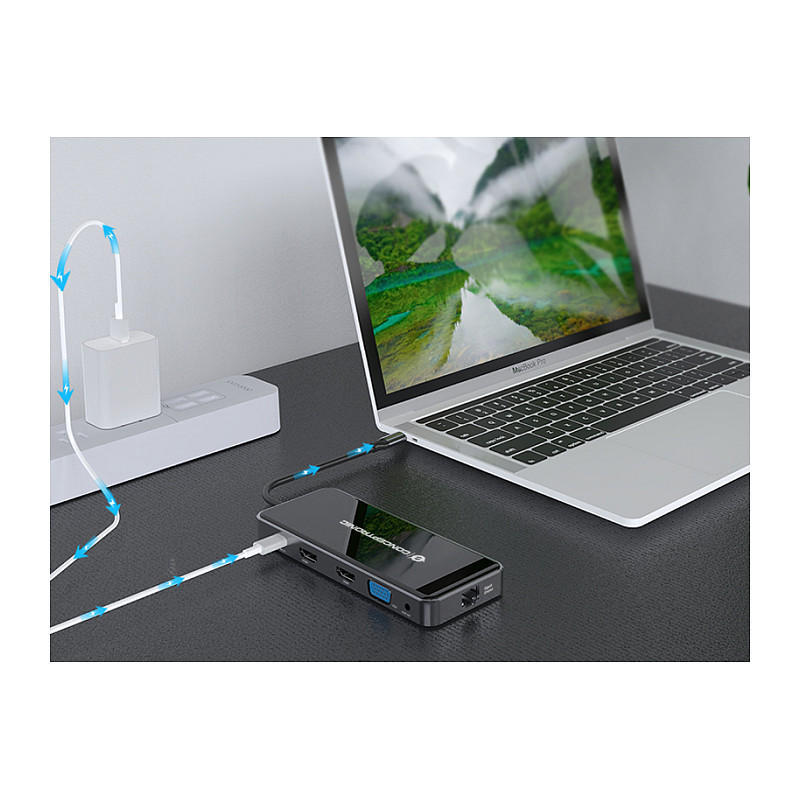

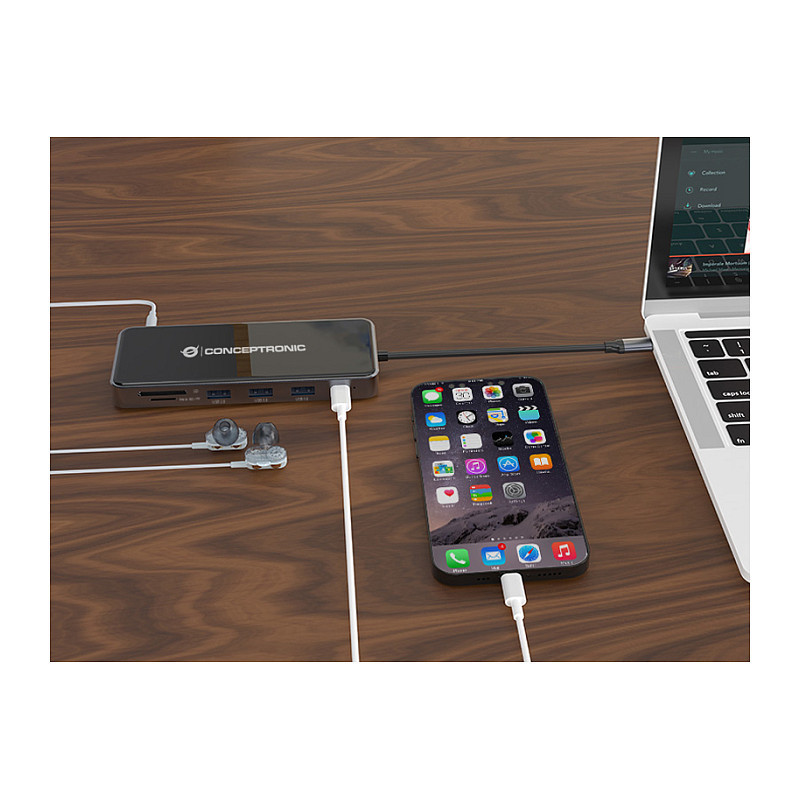

This 12-in-1 docking station makes it possible to expand your device's USB Type-C capacity with HDMI/VGA/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX ports. The adapter provides an easy way to add HDTV, or equipment such as a monitor or projector to any USB-C device such as a smartphone, portable gaming console, MacBook, Chromebook Pixel or any similar late-model laptop with USB-C ports. The multiport video adapter lets you mirror or extend content on three additional monitors simultaneously (2 x HDMI, 1 x VGA), creating a triple-screen workstation.
Multi Stream Transport, or MST, is a means of connecting one or more monitors together via a single display port. This technology makes it possible to connect say, three monitors to a laptop, using a docking station. This works by combining multiple video signals into one single stream and then 'unpacking;' them again on the display side. MST works on any Windows® device that supports DP Alt Mode (DisplayPort Alternate Mode), using USB-C.
Perfect for home entertainment, office presentations and classroom teaching.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
HDMI version: 2.0
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1

Network

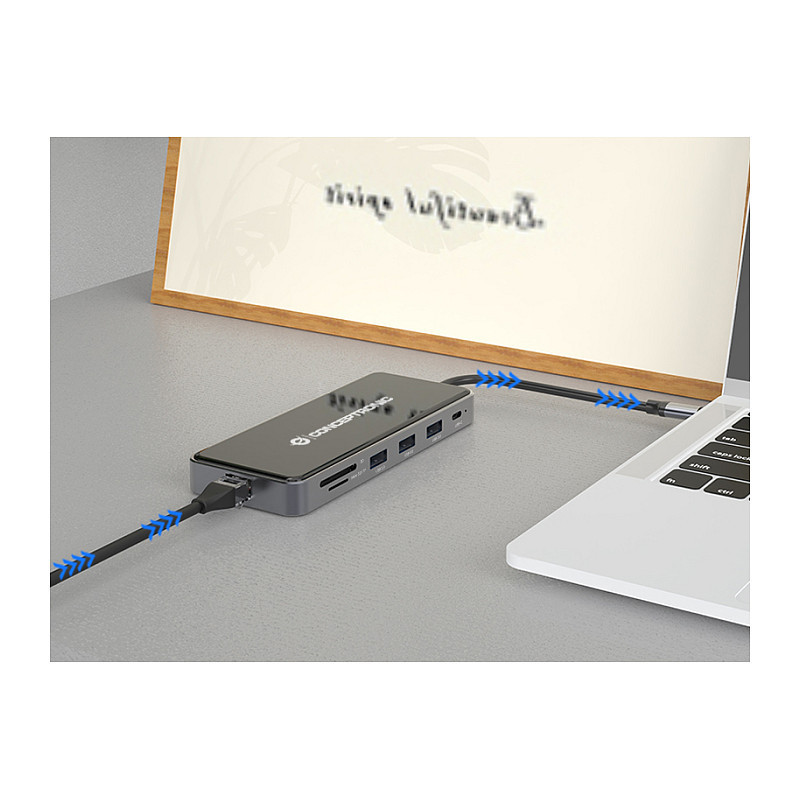

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000 Mbit/s

Performance

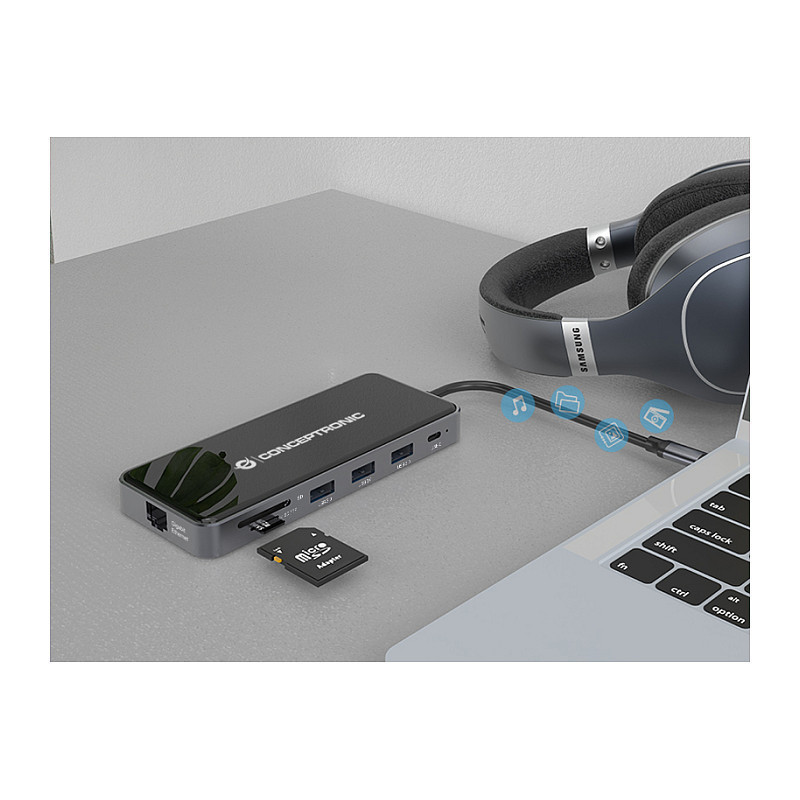

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5000 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Maximum analog resolution: 1920 x 1080 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Grey
Feature: Plug and Play

Power

USB cable length: 0.25 m

Software

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mobile operating systems supported: Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 8.1, Android 9.0

Weight & dimensions

Width: 58.3 mm
Depth: 141 mm
Height: 16 mm
Weight: 115 g

Packaging data

Quantity per pack: 1 pc(s)
