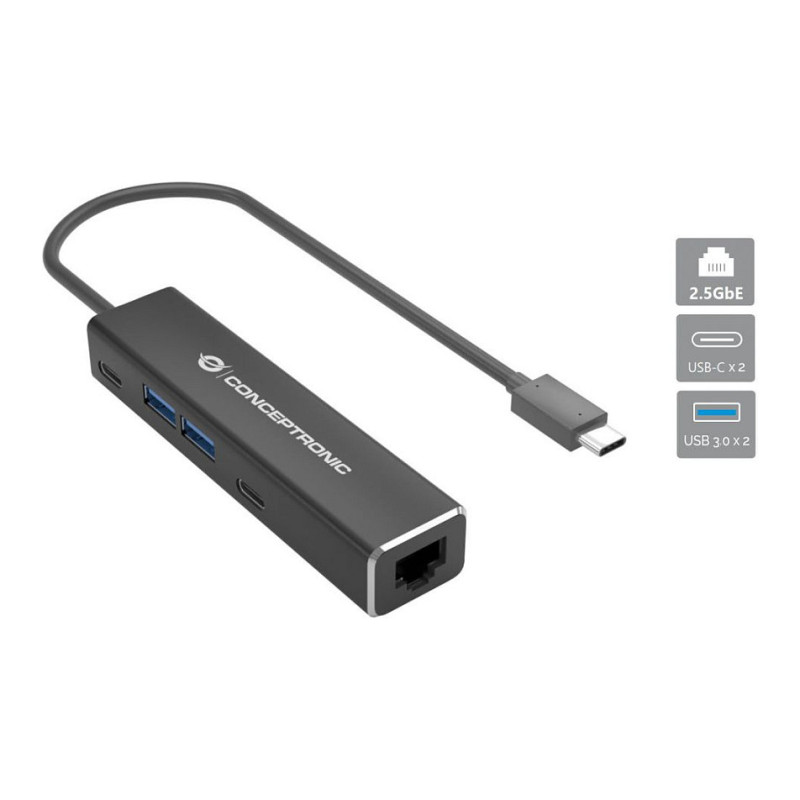

Conceptronic ABBY14B laptop dock / port replicator

Conceptronic ABBY14B 2.5G Ethernet USB 3.2 Gen 1 Adapter with USB Hub, 2.5GbE, USB-A x 2, USB-C x 2. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u. Product colour: Grey, Housing material: Aluminium, Country of origin: China. Power source type: USB, USB cable length: 0.23 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 5.0, Android 5.1, Android 6.0,...

The 2.5G Ethernet USB 3.2 Gen 1 Adapter with USB Hub allows you to connect to the internet easily through the built-in USB port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don't come with an Ethernet port. With its 2.5 Gigabit Ethernet connection, it enables lightning-fast data transfers, at speeds 2.5 times faster than Gigabit Ethernet. The adapter also combines a regular USB hub. So you can connect external USB peripherals, such as an MP3 player, digital camera, printer, or pen drive.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u

Performance

Product colour: Grey
Feature: Plug and Play
Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
USB cable length: 0.23 m

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 22 mm
Depth: 15 mm
Height: 118 mm
Weight: 48 g

Packaging data

Package width: 70 mm
Package depth: 20 mm
Package height: 180 mm
Package weight: 60 g

Packaging content

Feature: Quick start guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 100 pc(s)
Master (outer) case width: 300 mm
Master (outer) case length: 400 mm
Master (outer) case height: 320 mm
Master (outer) case gross weight: 7.4 kg
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 14.1 cm

Other features

Master (outer) cases per pallet: 18 pc(s)
