Conceptronic ABBY08G network card

Conceptronic ABBY08G USB 3.2 Gen 1 Gigabit Network Adapter, Wake-on-LAN, Compatible with Nintendo Switch. Connectivity technology: Wired, Host interface: USB Type-A/USB Type-C, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. Product colour: Grey

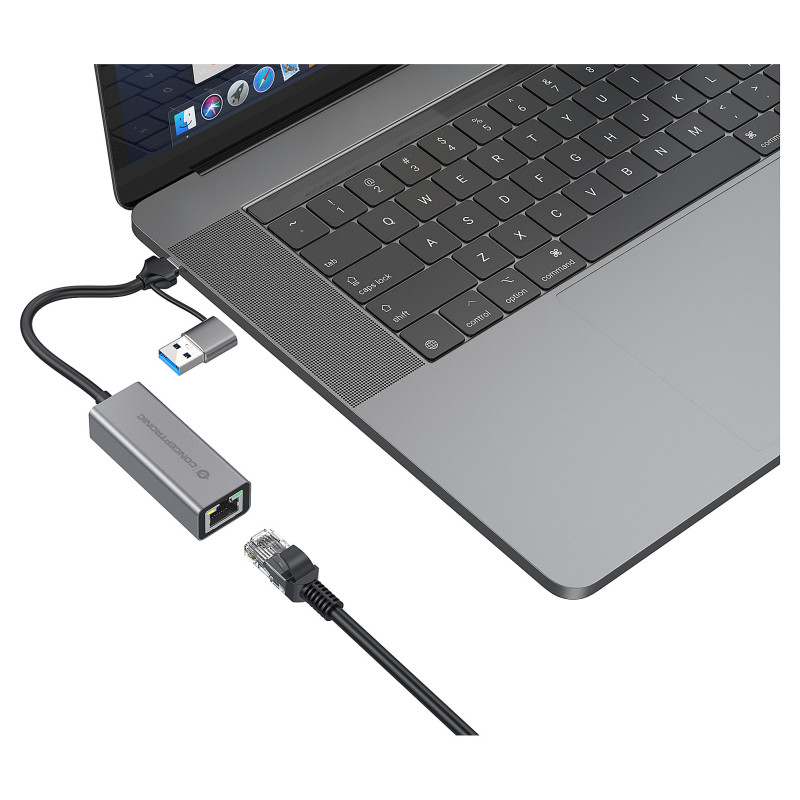

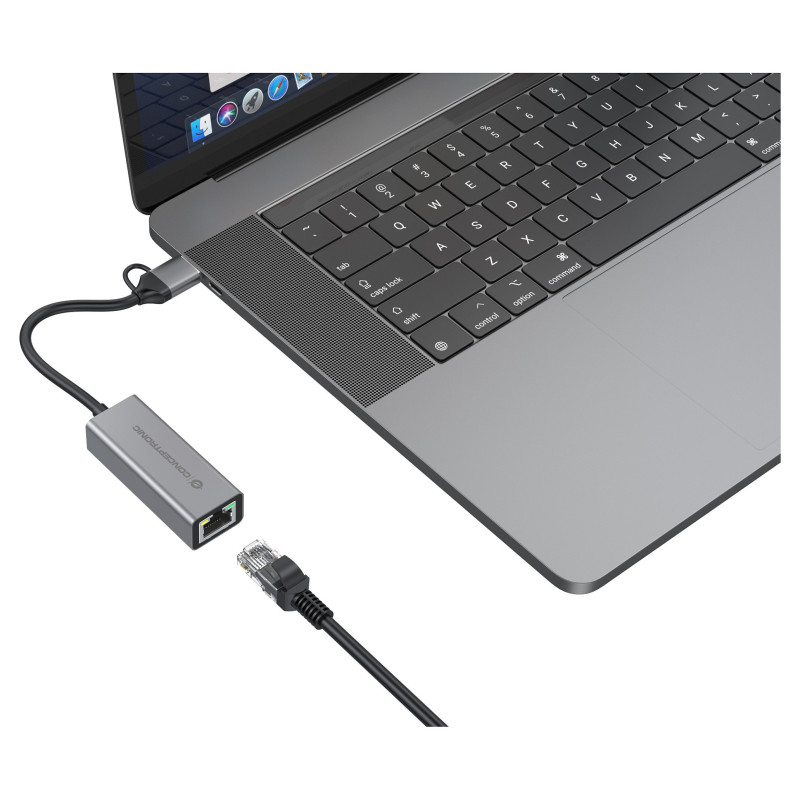

The USB to Gigabit Network Adapter allows you to connect to the internet easily through the built-in USB-A or USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless capabilities built-in but don't come with an Ethernet port.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB Type-A/USB Type-C
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: VLAN tagging

Design

Product colour: Grey
Feature: Plug and Play
Country of origin: China
Compatible products: Nintendo Switch

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight & dimensions

Width: 23.4 mm
Depth: 16.5 mm
Height: 60 mm
Weight: 30 g

Packaging data

Package type: Hanging box
Package width: 85 mm
Package depth: 22 mm
Package height: 158 mm
Package weight: 500 g

Packaging content

Feature: Quick installation guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 190 cm
Master (outer) cases per pallet: 48 pc(s)
Master (outer) case width: 440 mm
Master (outer) case length: 290 mm
Master (outer) case height: 250 mm
Master (outer) case gross weight: 5.6 kg
Products per master (outer) case: 100 pc(s)

Other features

Housing material: Aluminium
Feature: Flow control support
Cable length: 0.18 m
