CLUB3D CSV-2553 interface hub

CLUB3D CSV-2553. Host interface: USB Type-C, Hub interfaces: HDMI, RJ-45, USB 2.0 Type-A, USB Type-C, Compatible memory cards: MicroSD (TransFlash), SD. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 60 Hz, Supported graphics resolutions: 3840 x 2160. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power supply type: USB. Windows operating systems supported: Windows 11, Mac operating systems supported: Mac OS X 15.0 Sequoia

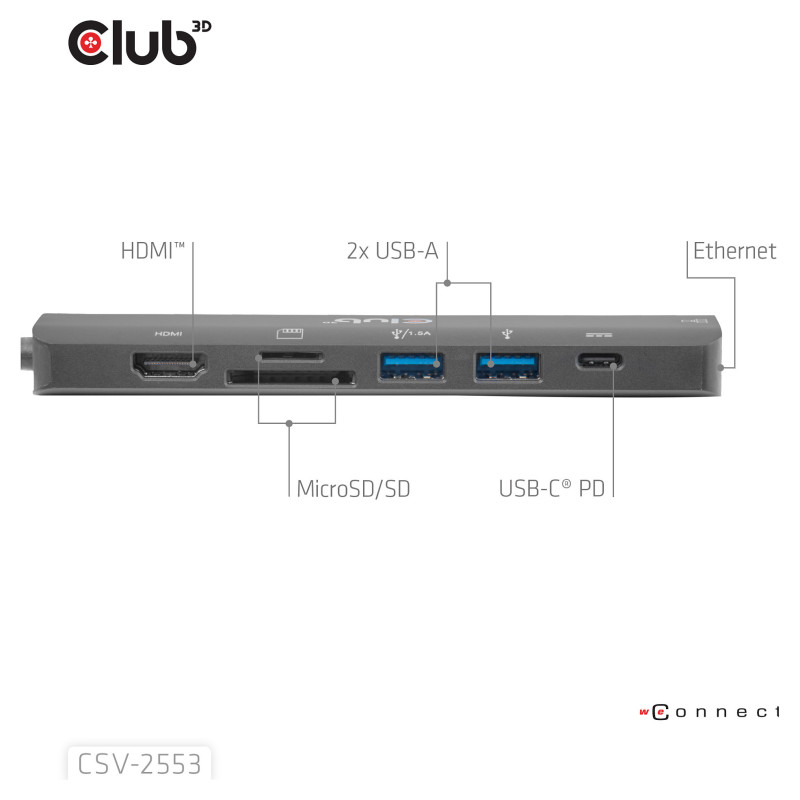

The Club 3D CSV-2553 is a USB Type-C®, 7-in-1 hub with HDMI™, 2x USB Type A, RJ45, microSD/SD card slots and Type-C® female port, providing an ideal solution for extending the port of USB Type-C® or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.)specially for the host with a single USB Type-C® port.

Ports interfaces

Host interface: USB Type-C
Hub interfaces: HDMI, RJ-45, USB 2.0 Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
Ports quantity: 7
Ethernet LAN (RJ-45) ports: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD

Features

Data transfer rate: 5000 Mbit/s
Maximum refresh rate: 60 Hz
Supported graphics resolutions: 3840 x 2160
Feature: High Dynamic Range (HDR) supported
Product colour: Black
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HD type: 4K Ultra HD
Cable length: 0.17 m

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Power

Power supply type: USB

System requirements

Windows operating systems supported: Windows 11
Mac operating systems supported: Mac OS X 15.0 Sequoia

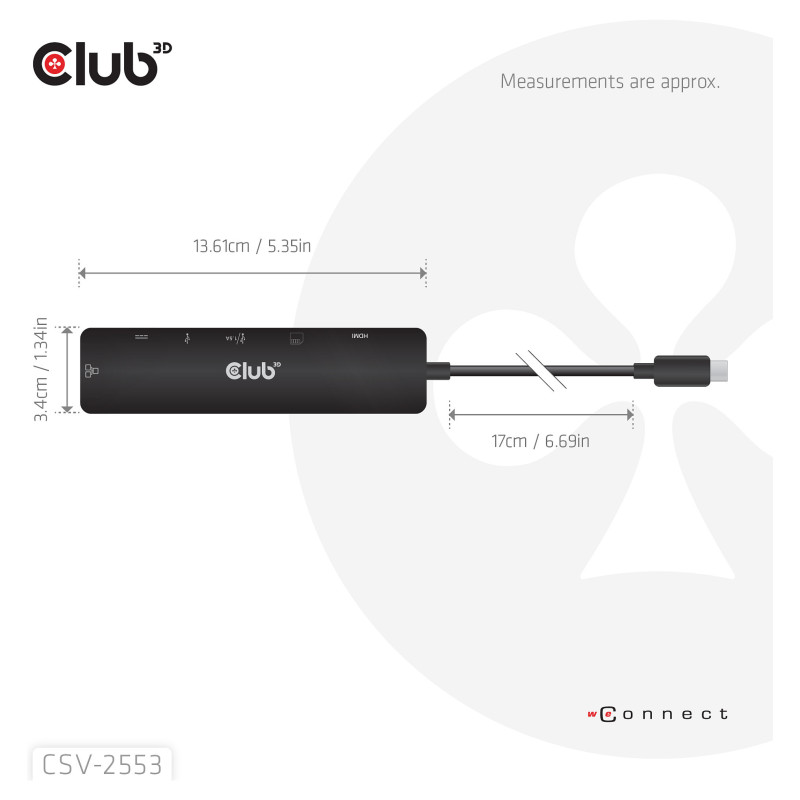

Weight dimensions

Width: 136.1 mm
Depth: 34 mm
Height: 14 mm
Weight: 71 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 60 mm
Package depth: 182 mm
Package height: 35 mm
Package weight: 95 g

Packaging composition

Plastic packaging weight: 2 g
Paper/cardboard packaging weight: 22 g
Total plastic packaging weight: 0 g
Total paper/cardboard packaging weight: 0 g

Logistics data

Harmonized System (HS) code: 84733020
