Axagon HUE-C1A interface hub

Axagon HUE-C1A 4x USB 5Gbps TRAVEL hub, USB-C power IN, 19cm USB-A cable. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power supply type: USB. Windows operating systems supported: Windows 10, Windows 11, Windows 8.1. Width: 106 mm, Depth: 32 mm, Height: 11 mm

Compact USB-A hub for everyday use
AXAGON HUE-C1A TRAVEL USB-A 5Gbps hub easily expands a laptop or computer with four additional USB ports. Its compact design with an integrated 19 cm USB-A cable makes it an ideal companion for travel, the office and everyday use at home.

Four USB-A 5Gbps ports for fast data transfer
The USB hub features four USB 5Gbps data ports with standard USB-A connectors. Thanks to the USB 5Gbps interface (USB 3.2 Gen 1), it supports data transfer speeds of up to 5 Gb/s, making it suitable for flash drives, external SSDs, keyboards, mice and other peripherals.

Dedicated USB connector for powering demanding devices
On the front of the hub there is a USB-C connector intended exclusively for auxiliary hub power. This connector does not support data transfer. When connected to a standard USB power adapter, it helps ensure stable power when using more demanding peripherals, such as multiple external drives at the same time. For typical office devices, external power is generally not required.

For laptops with a limited number of ports

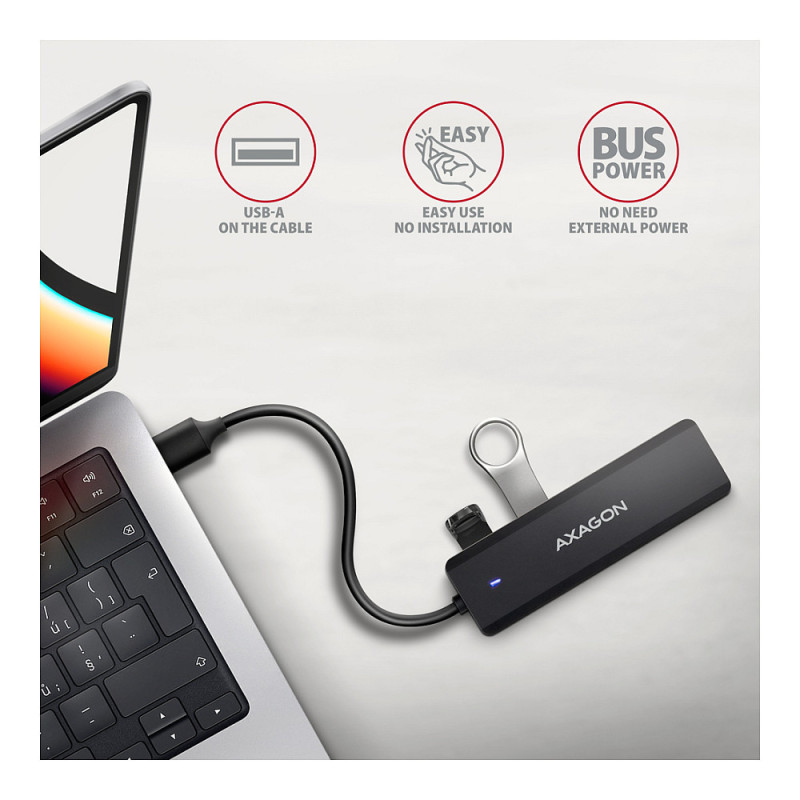

With four USB-A data ports, the hub is an ideal solution for modern laptops with a limited number of USB connectors. It allows convenient connection of existing accessories without the need for adapters or new devices. Plug & Play and Hot Plug support ensure immediate use without driver installation and convenient connection while the system is running.


Input (connection to computer, tablet or phone):
• USB 5Gbps (USB 3.2 Gen 1), USB-A male connector.
• Backward compatible with USB 480Mbps, USB 10Gbps, USB 20Gbps, USB 40Gbps and Thunderbolt 3/4/5.

Input (power supply)

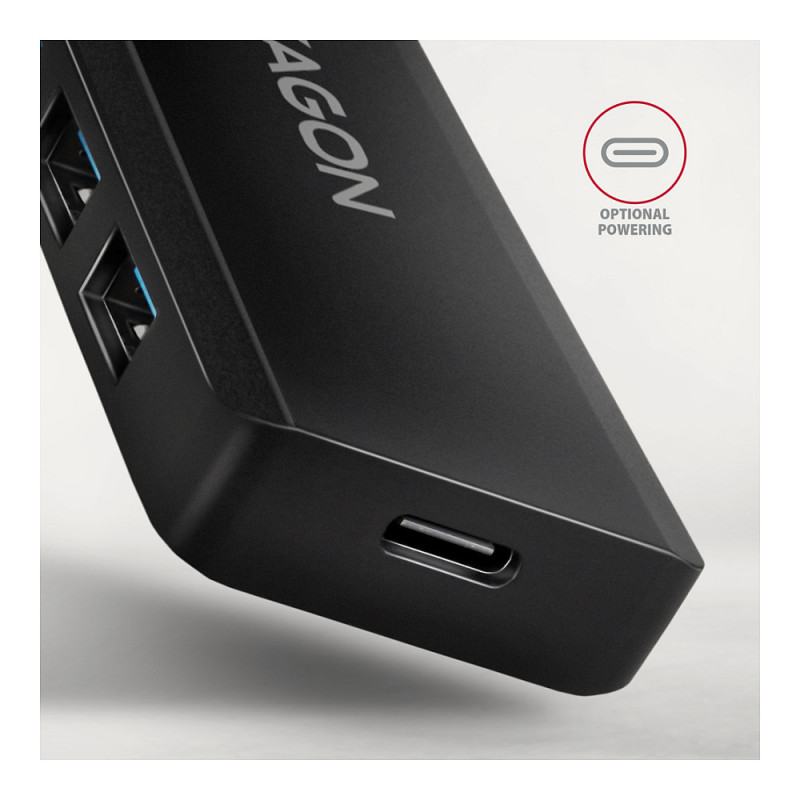

• USB DC 5V (auxiliary power), USB-C female connector.

USB outputs:

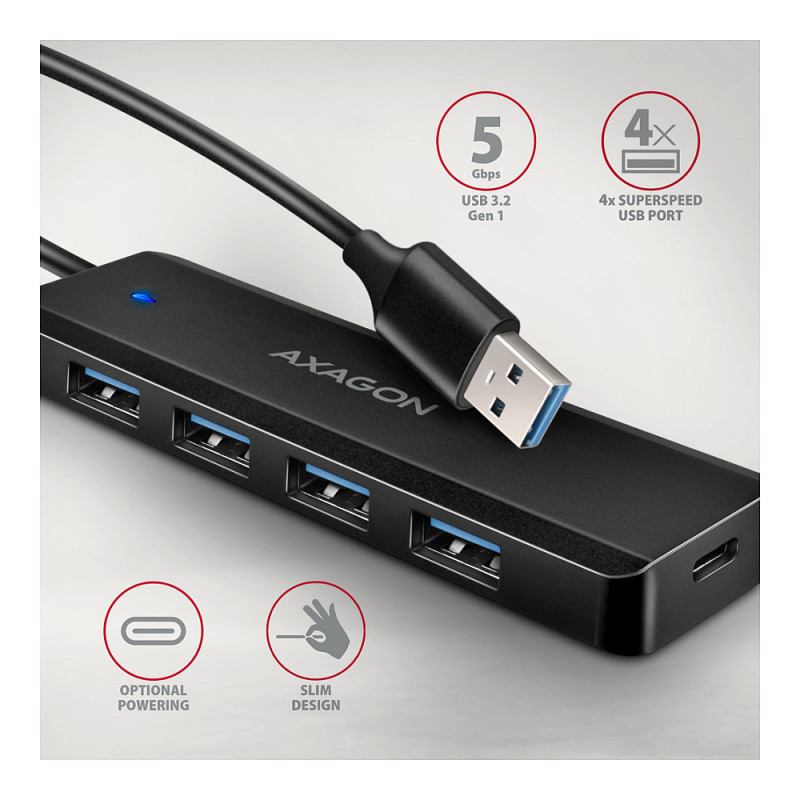

• 4× USB 5Gbps ports, USB-A female connectors.

Other features:
• Hot Plug support for connecting devices while the system is running.
• Full Plug & Play support.
• Power saving mode support.
• Power supply via USB bus - USB bus-powered.
• External auxiliary USB-C DC 5V power input for high-power devices.
• Shielded cable ensures high communication speed and minimum unwanted interference.
• LED indicator showing hub power status.
• Dimensions: 106 × 32 × 11 mm (W × D × H).
• Weight: 38 g (incl. cable).

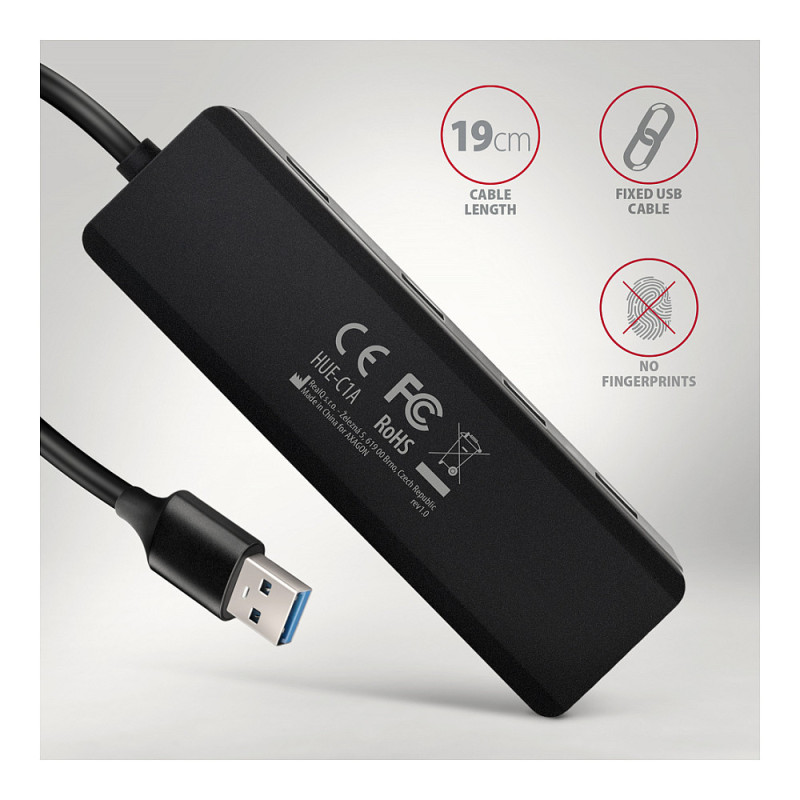

• 19 cm USB-A cable for connecting the hub to a notebook.

Hub power via USB cable (bus power):
• USB bus power is sufficient for connecting low-power USB devices (mouse, keyboard, card reader, flash drive, etc.) or self-powered devices (printer, scanner, 3.5" external drive) to all four ports.
• In this power mode, the USB hub can simultaneously operate up to two magnetic 2.5" external hard drives.

Hub power with auxiliary USB-C power (self power):
• Power supplied via the integrated USB-C connector on the side of the hub.
• Strengthening the hub USB ports, not intended for charging a laptop.
• Any USB-C mobile device power adapter (not included) can be used (recommended charger output current: min. 2 A).
• In this power mode, the USB hub can simultaneously operate up to 3 magnetic 2.5" external hard drives.

Supported operating systems:
• Windows 10/11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Compatibility depends on the operating system used and the support provided by the device manufacturer.

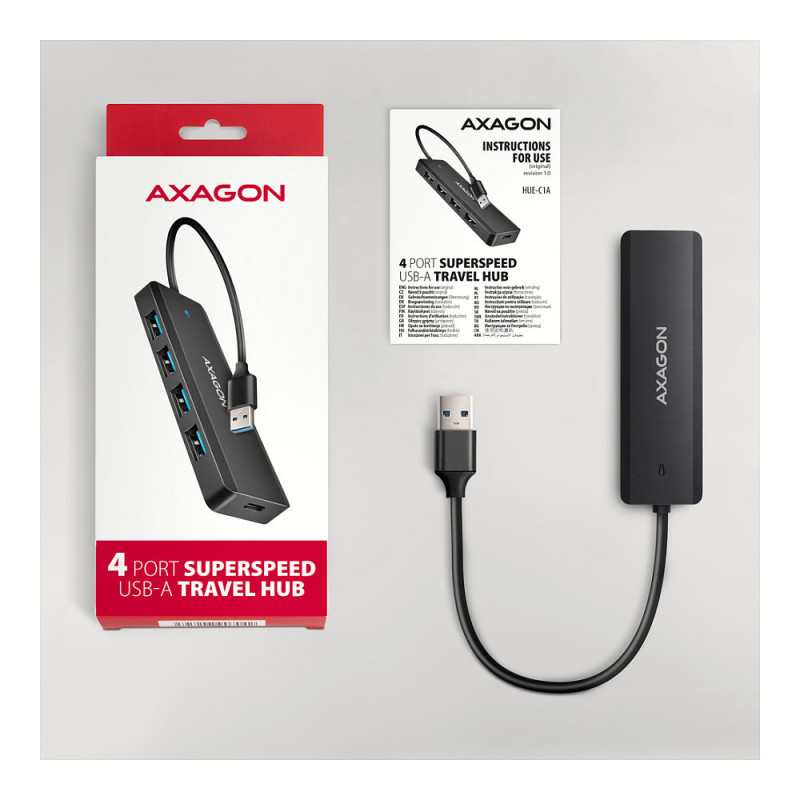

Package contains:
• USB-A hub with integrated 19 cm cable,
• multilingual user manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
• packed in a cardboard box with a hanging hole.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ports quantity: 4

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Plastic
LED indicators: Yes
Cable length: 0.19 m
Feature: Plug and Play
Country of origin: China
Certification: CE, RoHS

Power

Power supply type: USB

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Yes
Other operating systems supported: Yes

Weight & dimensions

Width: 106 mm
Depth: 32 mm
Height: 11 mm
Weight: 37 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 210 mm
Package depth: 88 mm
Package height: 21 mm
Package weight: 74 g
Package type: Box

Packaging content

Cables included: USB
Feature: Manual

Technical details

Warranty period: 3 year(s)
Compliance certificates: RoHS
