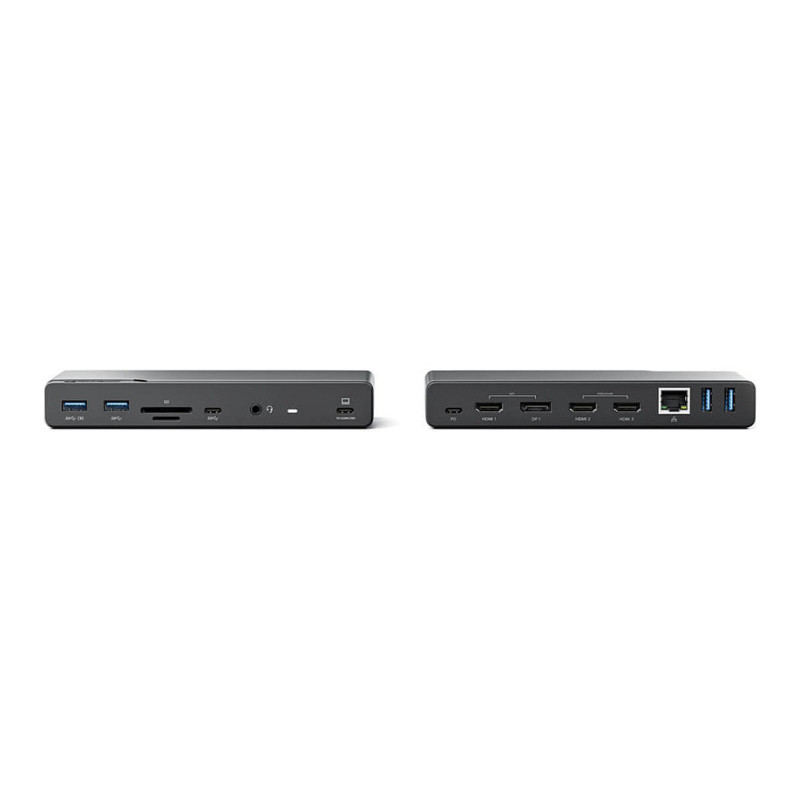

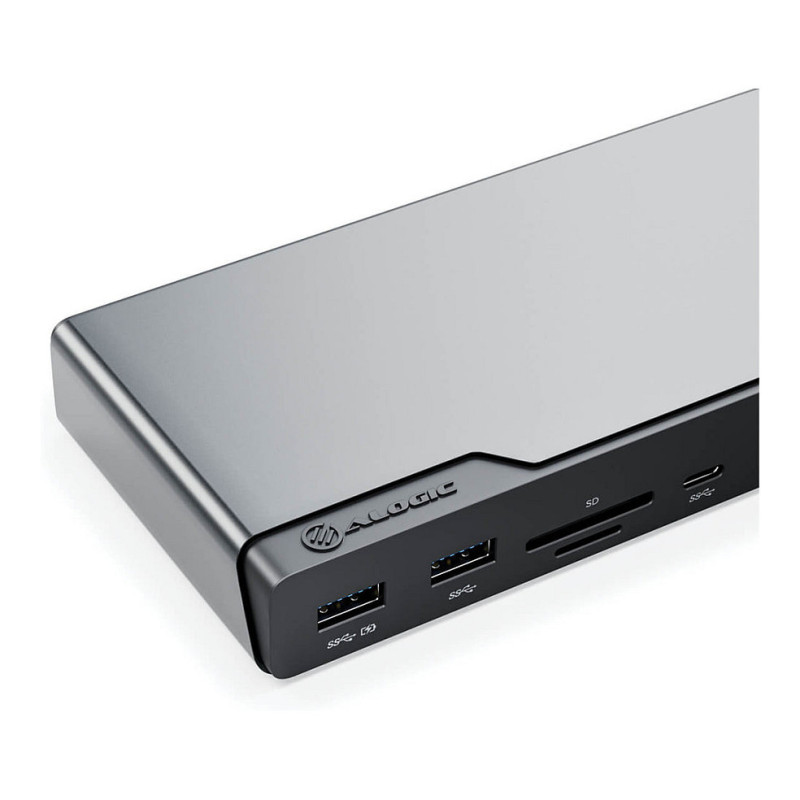

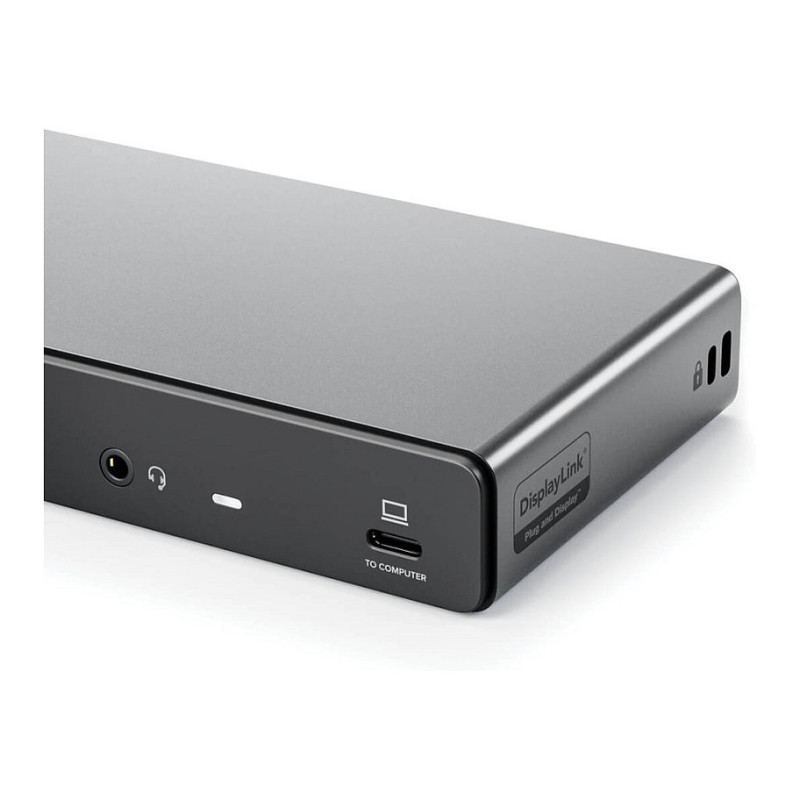

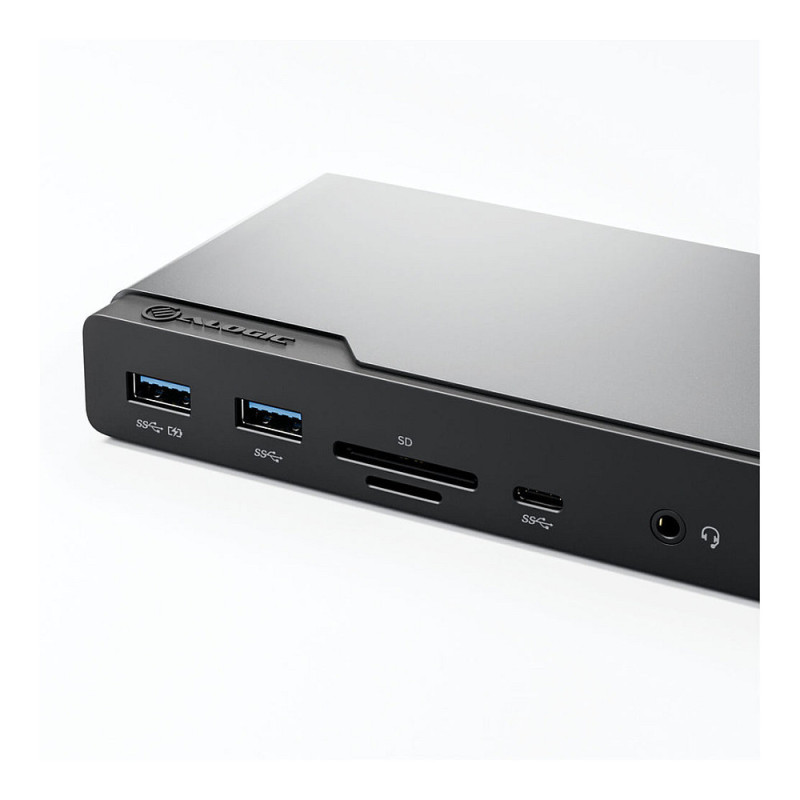

ALOGIC DV4

ALOGIC DV4 Universal Quad Display Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, HD type: 4K Ultra HD. Power source type: USB, USB cable length: 0.8 m. Other operating systems supported: ChromeOS

Connect up to 4 Displays
When linked to a computer using USB-C the DV4 dock can connect up to four* external displays via the 3x HDMI and 1x DisplayPort outputs for the ultimate in workstation display capabilities. This dock will also work with older laptops without USB-C, connecting via USB-A and allowing up to two displays to be used.

Expand your laptop's capabilities
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Powerhouse Companion for your laptop

Connect up to 4 Displays
- Connect up to 4 extended displays with HDMI 2 + HDMI 3 + HDMI 1 + DisplayPort 1
- USB-C DP Alt Mode host required for HDMI 1 and DisplayPort 1 outputs.
- Connect to 2 extended displays with a USB-A host.

Connect up to 3 Displays
- Connect up to 3 extended displays with HDMI 2 + HDMI 3 + HDMI 1 OR DisplayPort 1
- HDMI 1 AND DisplayPort 1 in use will give mirrored displays
- USB-C host required for HDMI 1 and DisplayPort 1 outputs

Three Screens. Endless Possibilities.
See your work in whole new ways. Immerse yourself in the art you love. With your MacBook connected to one stunning 4K display and up to two 1080p screens, you'll finally have space for everything you need to live your best digital life. Even with all those tabs.

Up to 85W Power Delivery
Equipped with a USB Power Delivery power input, the dock can charge laptops with up to 85W of power when a USB PD power adapter is connected (ALOGIC recommend the DCG1X100 100W Rapid Power Gan power adapter for use with this product - available separately).

Clutter-free desk
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Truly Universal Plug And Play
With Plug and Display™ support for Windows, macOS and Chromebooks, as well as dual-screen support for legacy USB-A devices, it's never been simpler to create the perfect workstation or hotdesking environment. Just plug in and you're ready to go.Text

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 3
HDMI version: 1.4b/2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Headphone outputs: 1
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 4
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Product colour: Grey
LED indicators: Yes
Feature: Plug and Play
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium

Power

Power source type: USB
USB cable length: 0.8 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 172 mm
Depth: 82 mm
Height: 27 mm
Weight: 435 g

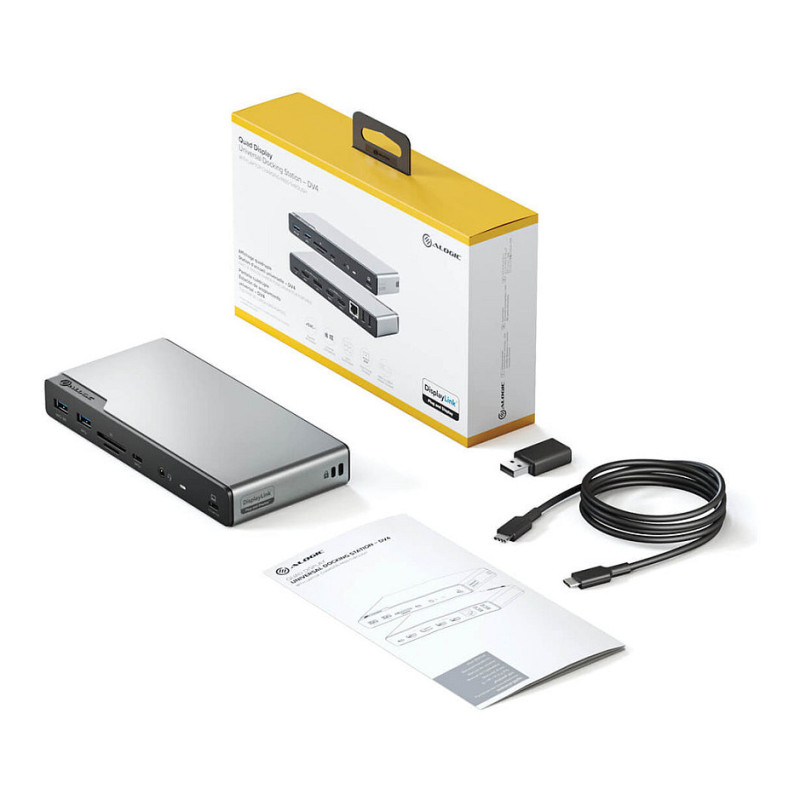

Packaging content

Cables included: USB Type-C
Feature: Quick start guide
