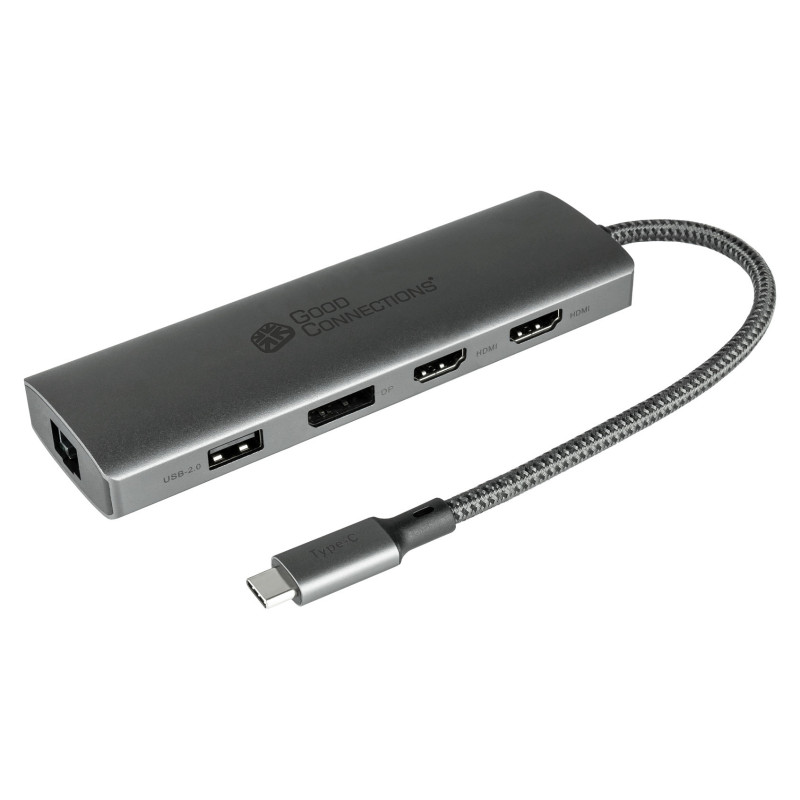

Alcasa HUB-C001A interface hub

Alcasa HUB-C001A. Host interface: USB Type-C, Hub interfaces: DisplayPort, HDMI, RJ-45, SCART, USB 3.0, USB Type-C, Compatible memory cards: MicroSD (TransFlash), SD. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 60 Hz, Supported graphics resolutions: 3860 x 2160. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Width: 41 mm, Height: 17 mm, Weight: 80 g. Length: 134 mm

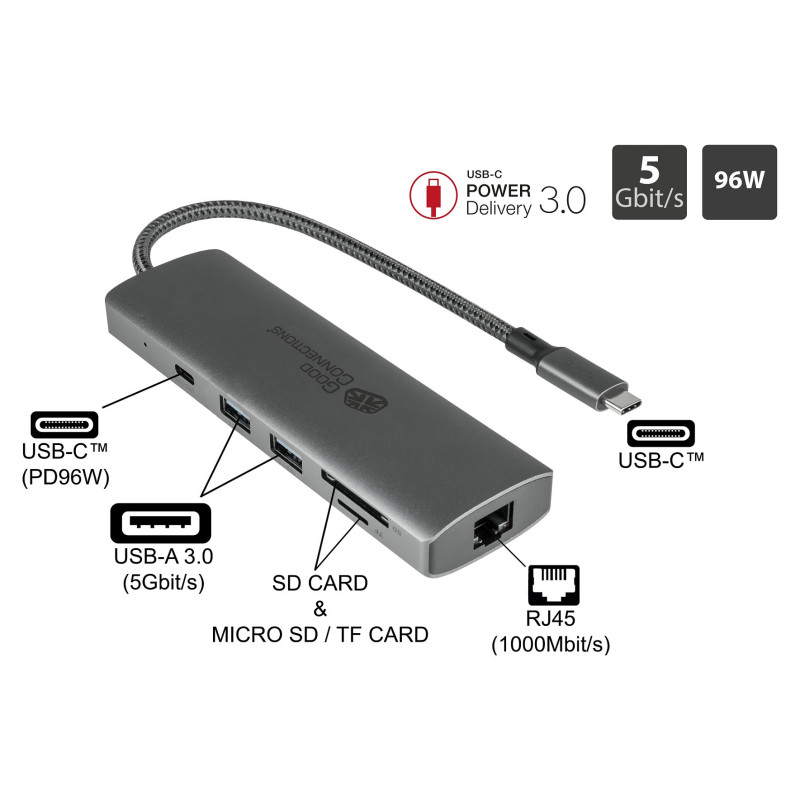

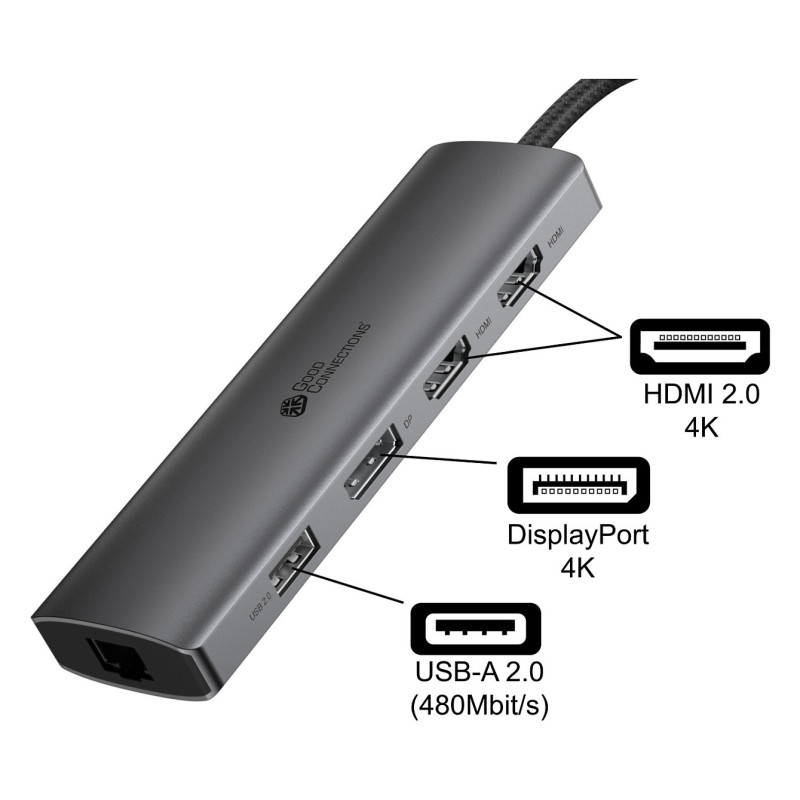

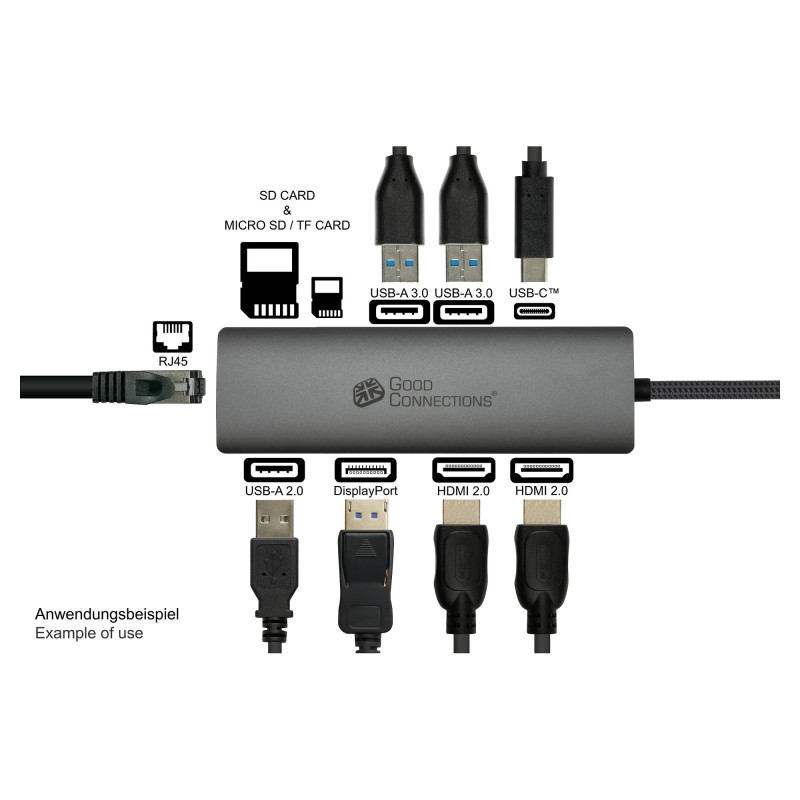

Ports & interfaces

Host interface: USB Type-C
Hub interfaces: DisplayPort, HDMI, RJ-45, SCART, USB 3.0, USB Type-C
USB 2.0 ports quantity: 1
USB 2.0 Type-C ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 2.0
Ports quantity: 10
Ethernet LAN (RJ-45) ports: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: Card reader integrated
Card reader slot: 2
Compatible memory cards: MicroSD (TransFlash), SD

Features

Data transfer rate: 5000 Mbit/s
Maximum refresh rate: 60 Hz
Supported graphics resolutions: 3860 x 2160
Supported video modes: 1080p
Maximum resolution (HDMI): 3860 x 2160 pixels
Product colour: Anthracite
Housing material: Aluminium
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 94 W

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s

Weight & dimensions

Width: 41 mm
Height: 17 mm
Weight: 80 g

Other features

Length: 134 mm
