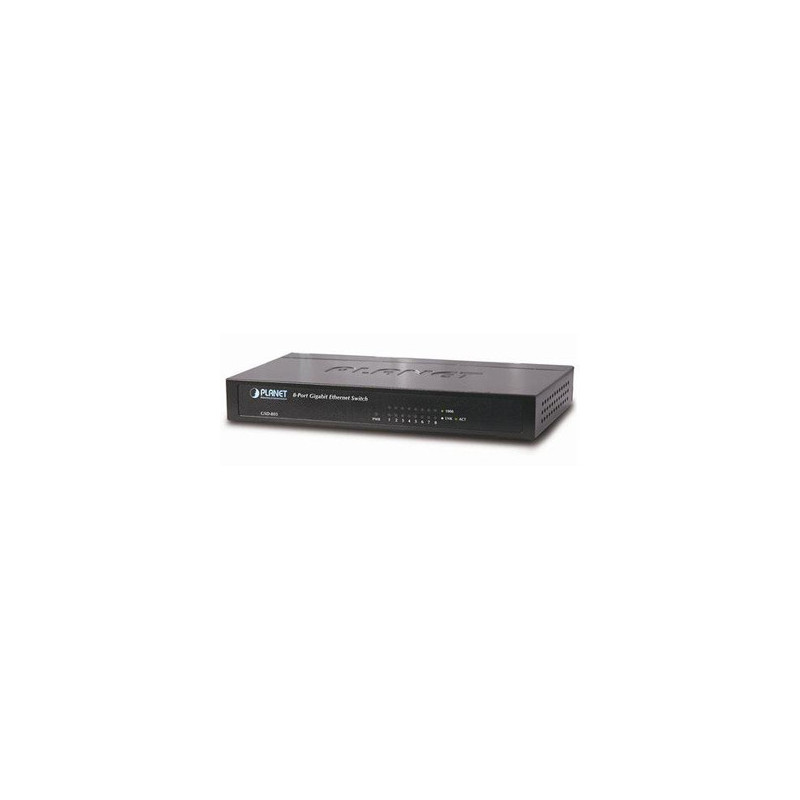

8-port Gigabit Internet Network Hub Planet GSD-805-EU

Short description:
• Gigabit Internet network hub 8-port;
• 8 x 10/100/1000Mbps, metal housing;
• Auto-MDI/MDIX for all ports;
• Supports CSMA/CD protocols;
• Complies with Internet standards: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T;
• MAC address memory: 8k Bits;
• Power supply 100-240V AC, 50/60Hz, 0.2A;
• Dimensions: 191(L) x 85.7(W) x 26.3(H) mm.
Technical characteristics:
• 10/100/1000Base-T Ports: 8
• Dimension (W x D x H) 191 x 85 x 26 mm
• Weight: 390g
• Power Requirement: Internal power 100-240V AC, 50/60Hz, 0.2A
• Power Consumption / Dissipation: 9.6 watts / 32 BTU
Switch Specification
• Switch Processing Scheme: Store-and-Forward
• Address Table: 4K entries
• Share data Buffer: 1Mbit on-chip frame buffer
• Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
• Switch fabric: 16Gbps
• Throughput (packet per second): 11.9Mpps
• Network cables: 10/100/1000Base-T: Cat. 3, 4, 5, 5e, 6 UTP cable (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.)
Standards Conformance
• Standards Compliance: IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Full-duplex flow control
• Temperature Operating: 0~50 Degree C
• Storage: -40~70 Degree C
• Operating Humidity: 5~90%
• Storage: 5~90% (Non-condensing)
• Regulation Compliance FCC Part 15 Class A, CE
