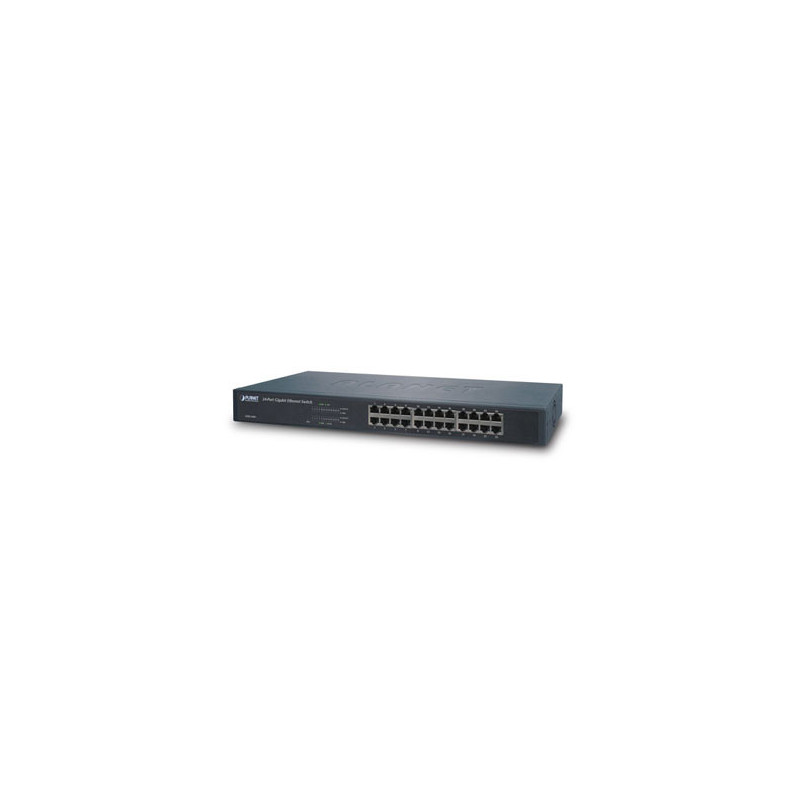

24-port Gigabit Internet Network Hub Planet GSW-2401

Short description:
• Gigabit Internet network hub 24-port;
• 24 x 10/100/1000Mbps, metal housing;
• Auto-MDI/MDIX for all ports;
• Supports CSMA/CD protocols;
• Complies with Internet standards: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T;
• MAC address memory: 8k Bits;
• Power supply 100-240V AC, 0.6A, 50/60Hz
• Dimensions: 440 x 180 x 44 mm, 1U
Technical characteristics:
• Hardware Version Version 5
• 10/100/1000Base-T MDI/MDIX Ports 24
• Throughput (packet per second) 35.7Mpps
• Switch fabric 48Gbps / non-blocking
• Power Consumption / Dissipation 18 watts / 61 BTU
• Power Requirements 100-240V AC, 0.6A, 50/60Hz
• Switch Processing Scheme Store-and-Forward
• Address Table 8K entries
• Jumbo packet size 9K
• Flow Control Back pressure for half duplex, IEEE 802.3x pause of frame for full duplex
• Dimensions (W x D x H) 440 x 180 x 44 mm, 1U height
• Weight 2kg
• Standards Conformance
• Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 (Ethernet)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Full-Duplex Flow Control)
Temperature Operating: 0~50 degrees C
• Storage: -10~70 degrees C
• Humidity Operating: 5~95%
• Storage: 5~95% (Non-condensing)
