StarTech.com 189B-USBC-MULTIPORT laptop dock / port replicator

StarTech.com 10-in-1 USB-C to Dual-DisplayPort Multiport Adapter, 100W Power Delivery Charging, 2x 4K 60Hz, 5-Port 5Gbps Hub, Gigabit Ethernet, Type-C Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Output voltage: 5 V, Power consumption (typical): 15 W, USB cable length: 0.3 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: ChromeOS

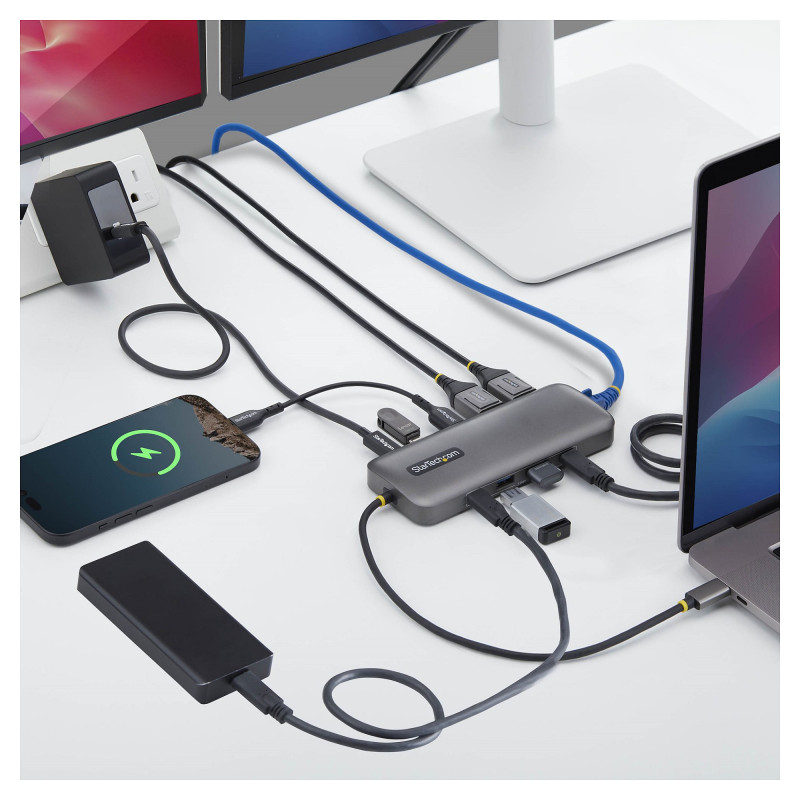

Create a mobile workstation wherever you work

Enable dual-4K displays, high-speed device connectivity, power, and networking from a single USB-C dock for consistent productivity anywhere.

Deploy Multi-Display Setups with Ease

Drive two 4K 60Hz DisplayPort displays on Windows, Linux, and ChromeOS to increase screen real estate. Ideal for hot desks and remote users who need instant multi-monitor setups.

Connect Devices and Keep Ports Free

Connect modern and legacy high-speed devices with 3x USB-C and 2x USB-A (5Gbps), while a dedicated USB-A 2.0 port handles keyboard and mouse dongles or other essential peripherals. Reduce hub sprawl and keep critical ports available for storage, capture, or field tools.

Deliver a Consistent Desktop Experience Anywhere

Provide 100W PD charging passthrough and Gigabit Ethernet for stable, wired performance at home, in the office, or while travelling. Standardize deployments with the same display, USB, and network experience to simplify rollouts and support.

Built for Sustainability, Designed for Performance

This hub features a housing made from 85% post-consumer recycled (PCR) plastic. The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.

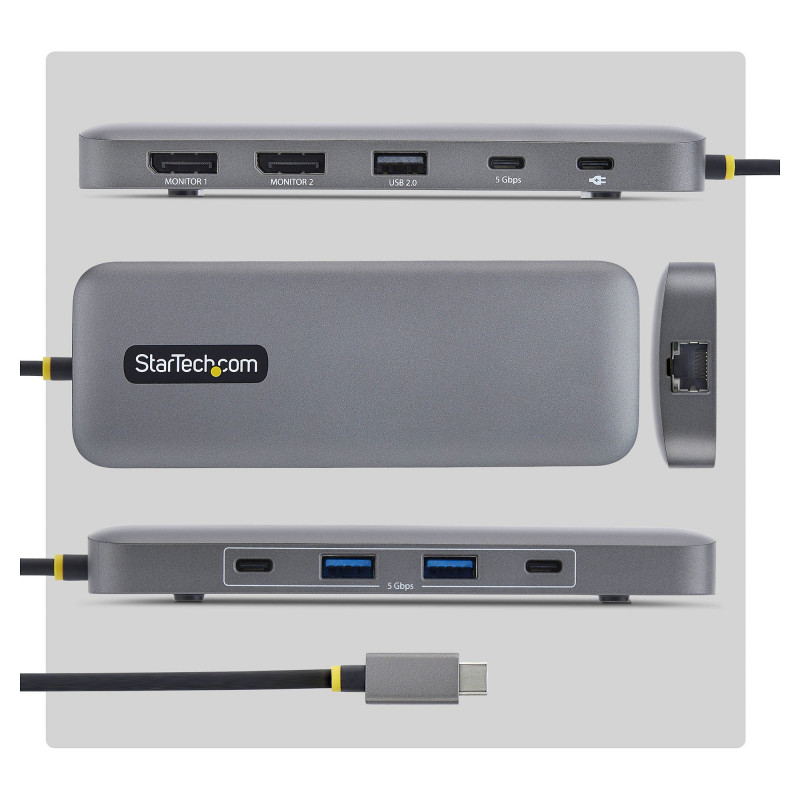

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 1
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
DisplayPorts quantity: 2
DisplayPort version: 1.2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex

Performance

Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Grey
Housing material: Plastic
Mean time between failures (MTBF): 103855 h

Power

Output voltage: 5 V
Power consumption (typical): 15 W
USB cable length: 0.3 m

Software

Linux operating systems supported: Yes
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): 10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Width: 55 mm
Depth: 150 mm
Height: 16.5 mm
Weight: 100 g

Packaging data

Package width: 193 mm
Package depth: 117 mm
Package height: 24 mm
Package weight: 190 g

Packaging content

Feature: User guide

Logistics data

Products per master (outer) case: 80 pc(s)
Master (outer) case width: 540 mm
Master (outer) case length: 425 mm
Master (outer) case height: 270 mm

Other features

Chipset: Synaptics - VMM5220, VIA - VL103, VIA - VL817S, Realtek - RTL8153E
