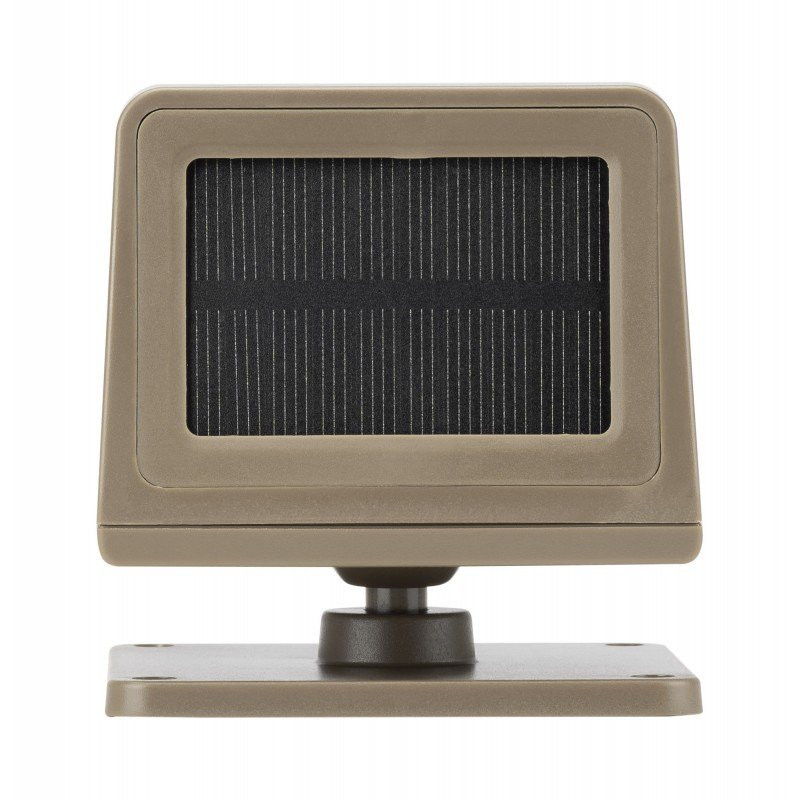

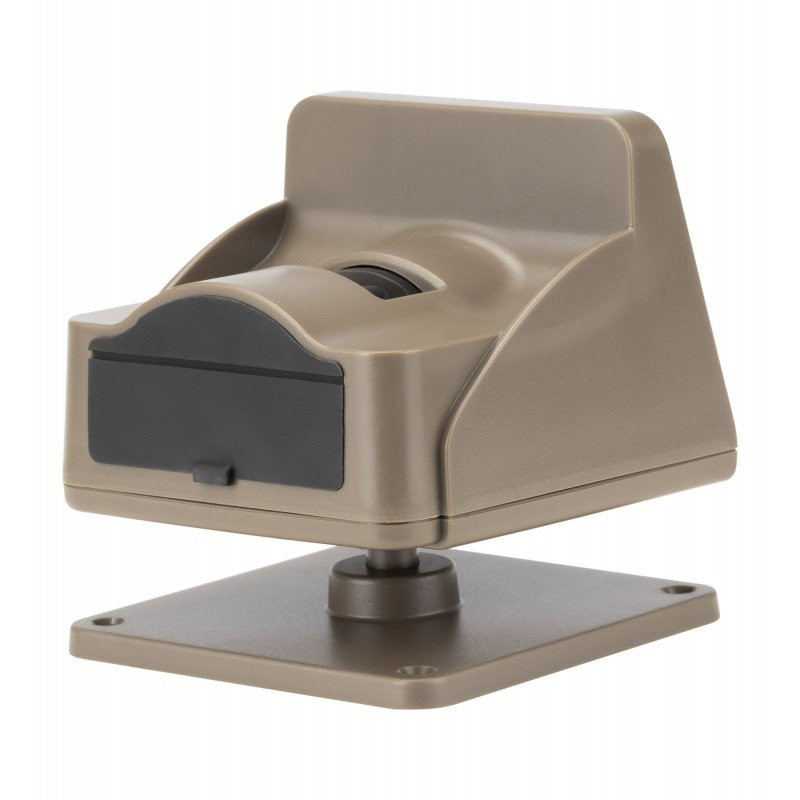

Sensor with solar collector for Redleaf RD200 system

Sensor Sensor with solar collector for Redleaf RD200 system

The solar sensor allows you to expand the capabilities of the Redleaf RD200 alarm system, ensuring control of more rooms or different points of ownership. Such a solution will help increase the level of security and facilitate daily activities in offices, shops or warehouses.

Main product features

•


  sensor with solar collector, designed to function as part of the Redleaf RD200 alarm system





•


  up to 800 meters communication range between the sensor and the receiver with alarm module





•


  Two-stage sensor sensitivity adjustment (motion detection up to 6 m or 9.1 m)





•


  possibility of connecting 4 sensors in one alarm system





•


  motion detection, working 60º horizontally and 40º vertically





•


  solar panel powering the motion detector with a maximum power of 0.35 W





•


  additional option to charge the motion sensor via micro USB port





•


  dust and rain resistant (IP66 standard)




Specification

•


  model: sensor with solar collector Redleaf for RD200 system





•


  Compatibility: Redleaf RD200 alarm





•


  radio communication: 433 MHz





•


  transmission range: up to 800 m





•


  number of selectable channels: 4





•


  Sensor sensitivity:





  •


    high: 9.1 m (high sensitivity)





  •


    low: 6 m (low sensitivity)









•


  solar panel power: max. 0.35 W





•


  tightness standard: IP66





•


  sensor battery: built-in (1500 mAh)





•


  Charging the sensor:





  •


    solar energy





  •


    micro USB port (5V / 1A)









•


  Dimensions: 89 x 89 x 85 mm





•


  weight: 188 g




Kit contents

•


  Redleaf RD200 system sensor with solar collector
