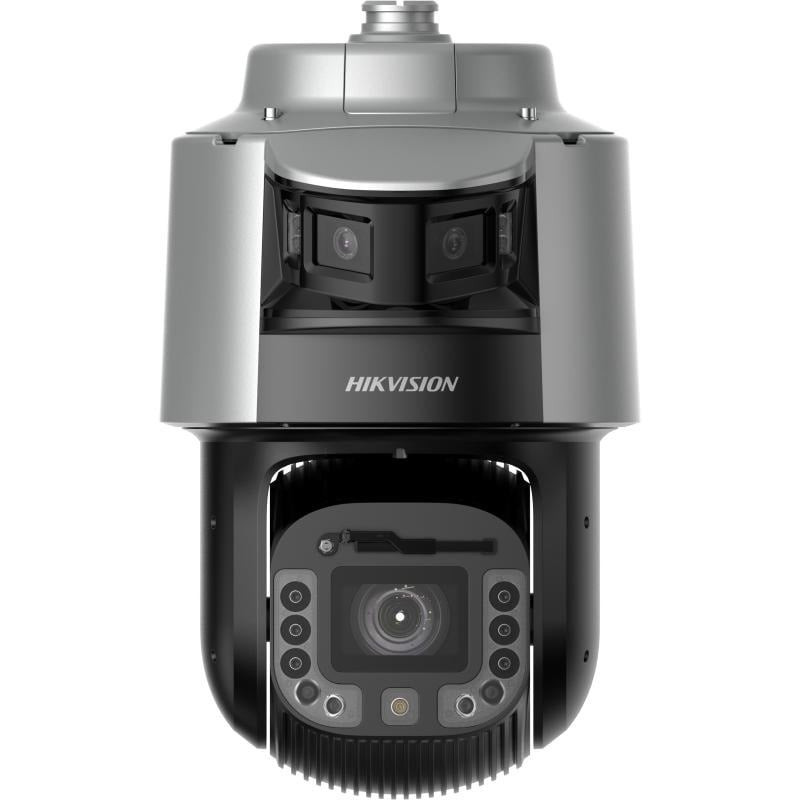

Hikvision TandemVu PTZ DS-2SF8C425MXG1-ELW / 26(F0)
Product reference:
26-6936422109851
- Captures large areas and fine details at the same time
- High-quality image with 6 MP resolution (for bullet channel)
- 24/7 color vision and excellent low-light performance with DarkFighter 2.0 technology
- The tilt of the panoramic channel is adjustable from 12° to 24°
- Provides wide-area surveillance with 25× optical and 16× digital zoom
- Wide night vision with up to 30m white light range and 300m IR range
- Supports deep learning features
- Waterproof and dustproof (IP67) and vandalism resistant (IK10), except for the glass window
- Audio and visual alarm: White light flashing and audible alert can be activated during certain events
Hikvision TandemVu PTZ DS-2SF8C425MXG1-ELW / 26(F0)
Product reference:
26-6936422109851
- Captures large areas and fine details at the same time
- High-quality image with 6 MP resolution (for bullet channel)
- 24/7 color vision and excellent low-light performance with DarkFighter 2.0 technology
- The tilt of the panoramic channel is adjustable from 12° to 24°
- Provides wide-area surveillance with 25× optical and 16× digital zoom
- Wide night vision with up to 30m white light range and 300m IR range
- Supports deep learning features
- Waterproof and dustproof (IP67) and vandalism resistant (IK10), except for the glass window
- Audio and visual alarm: White light flashing and audible alert can be activated during certain events
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 6
business days
- Approvals
- Corrosion protection NEMA 4X (NEMA 250-2018)
- EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 7)
- Environmental protection CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection, IK10 (IEC 62262:2002, excluding glass window)
- Security CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)
- Sound
- Audio bit rate 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM)
- Audio compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
- Audio sampling frequency 8kHz,16kHz,32kHz,48kHz
- Removing extraneous sounds Yes
- Camera
- DayNight [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto
- Image sensor [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
- Highest resolution [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520
- Minimal lighting [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
- Shutter speed 1 s to 1/30000 s
- Slow shutter Yes
- Zooming [PTZ channel] 25 × optical, 16 × digital
- Smart features
- Facial recognition Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
- Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption
- Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features
- Perimeter security Line crossing detection, region entrance detection, intrusion detection, region exiting detection
- Road traffic and vehicle detection Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Features
- Main functions [PTZ channel panoramic channel] alarm input and output, exception, [PTZ channel] video tampering alarm
- Interface [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart features Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection
- Smart connection Manual tracking, tracking takeover, linked tracking capture
- General
- Dew removal Yes
- Dimensions Ø290 mm × 453.2 mm (Ø11.42" × 17.84")
- Main functions mirror,password protection
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Material ADC12
- Working conditions -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing), For speaker: -30 °C to 55°C (-22°F to 131°F)
- Power 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
- Weight Approx. 10.5 kg ( 23.15 lb.)
- Wiper Yes
- Lighting
- Smart additional lighting Yes
- Additional lighting range [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
- Photo
- Day/night switch Day, night, auto, schedule
- Fog removal Digital defog
- Photo beautification HLC,3D DNA
- Photo parameters converter Yes
- Image settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image stabilization EIS (Built-in gyroscope to improve EIS performance)
- Privacy mask [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regional exposure Yes
- Regional focus [Panoramic channel] No, [PTZ channel] Yes
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 150 dB
- Interface
- Alarm 7 inputs, 2 outputs
- Sound 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
- Built-in speaker 1 built-in speaker
- Web interface 1 RJ45 100M self-adaptive Ethernet port
- Storage location Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB.
- RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reloading Yes
- Lens
- Aperture [Panoramic channel] F1.0, [PTZ channel] F1.6
- FOV [Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
- Focal length [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 150 mm
- Focusing Auto, semi-auto, manual
- Zoom speed [Panoramic channel] No, [PTZ channel] approx. 5.6 s
- Linkage and Tracking
- Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- Smart tracking Manual tracking, auto-tracking 3.0
- Network
- API ONVIF (Profile S, Profile G, Profile T, Profile M), ISUP, ISAPI, SDK, OTAP
- Customer iVMS-4200, HikCentral Pro, Hik-Connect
- Internal memory NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Protocols IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- Security Password protection, complicated password, HTTPS encryption, IP address filter, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, host authentication (MAC address), TPM 2.0 (FIPS 140-2 level 2)
- Live video viewing Up to 20 channels
- User/port Up to 32 users. 3 user levels: administrator, operator, and user
- Browser Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+
- PTZ
- 3D position Yes
- Movement Range (Pan) 360° endless
- Movement Range (Tilt) [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
- PTZ status display Yes
- Pan speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- Patrolling 8 patrols, up to 32 presets for each patrol
- Scanning saved modes 4 pattern scans, record time over 10 minutes for each scan
- Power-off memory Yes
- Stopping saved settings Yes
- Pre-saved settings 300
- Proportional Pan [Panoramic channel] No, [PTZ channel] Yes
- Task schedule Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Tilt speed [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s, [Panoramic channel] tilt speed configurable
- Supplement Detection
- Compass No
- Gyroscope Yes
- Satellite Positioning No
- Image
- H.264 type Baseline profile, Main profile, High profile
- H.265 type Main profile
- Main stream [Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)*High frame rate is supported under monitoring mode only.
- Region of Interest (ROI) 8 fixed regions for each stream
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Secondary flow [PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240), [Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30fps (1200×536,960×432)
- Third stream [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
- Video bit rate 32 Kbps to 16 Mbps
- Image compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG
| Weight | 6.5 kg |
