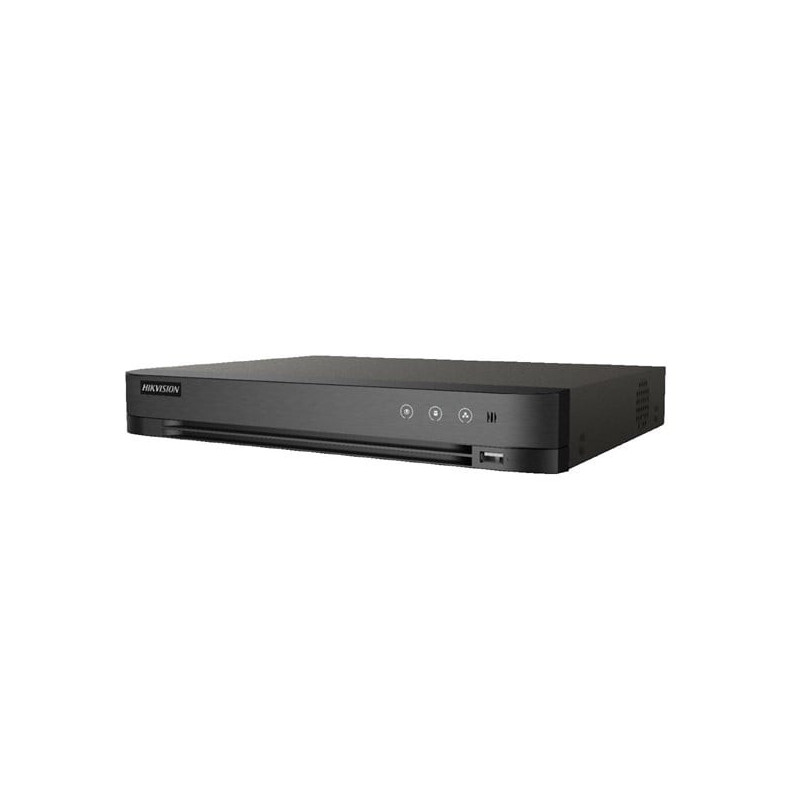

Hikvision 16-channel DVR iDS-7216HQHI-M1/XT

Product reference: 26-6942160459417

Hikvision 16-channel DVR iDS-7216HQHI-M1/XT

Product reference: 26-6942160459417

You have 3 products in compare list, please remove someone and try again

Add to compare

24732 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Facial recognition
Face photo comparison Face picture comparison, face picture search (4-ch face picture comparison alarm for HD analog camera)
Face Painting Library
Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Facial Detection
Facial Detection and Capture
Face picture detection, face picture search；
4-ch face picture capture

Image and sound
IP video input 8-ch (up to 24-ch), Up to 6 MP resolution
Analog video input
16-channel
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection
HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps, 1080P@25/30fps, 720P@25/30fps
HDCVI Input 3K(2880×1620)@25fps, 5MP(2592×1944)@20fps, 4MP(2560×1440)@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVBS Input PAL/NTSC
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
Audio input
1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way speed 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 16-channel

Recording
Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Double stream Support main stream or sub stream
Flow type Video, Video Audio
Audio compression G.711u
Audio bit rate 64 Kbps

Internet
Remote login 128
Total Bandwidth 256Mbps
Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network interface 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Weight

1.495 kg
