HDMI Switch - 4x4 4K UHD 30Hz, HDMI 1.4a, EDID Control
Product reference:
14-4002888381529
The 4x4 HDMI 4K60 matrix switch connects four 4K UHD input sources to four 4K UHD displays, supporting a maximum resolution of 4096x2160 at 30Hz. It features HDMI 1.4a, EDID control, and a variety of control options including IR and RS-232.
HDMI Switch - 4x4 4K UHD 30Hz, HDMI 1.4a, EDID Control
Product reference:
14-4002888381529
The 4x4 HDMI 4K60 matrix switch connects four 4K UHD input sources to four 4K UHD displays, supporting a maximum resolution of 4096x2160 at 30Hz. It features HDMI 1.4a, EDID control, and a variety of control options including IR and RS-232.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

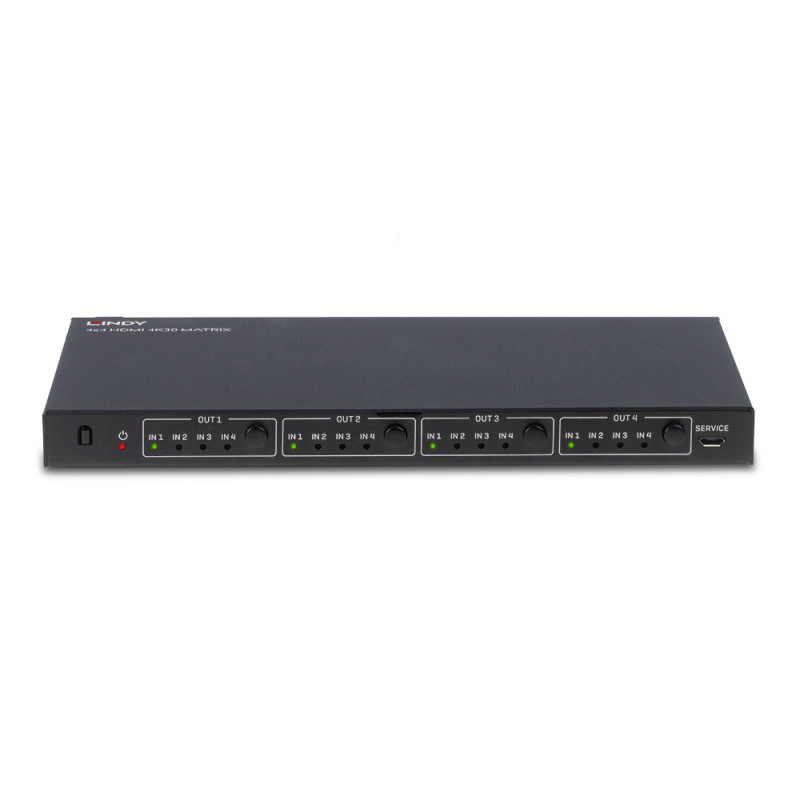

4X4 HDMI 4K60 Matrix Switch
The 4x4 HDMI 4K60 matrix switch connects four 4K UHD input sources to four 4K UHD displays, supporting a maximum resolution of 4096x2160 at 30Hz. It features HDMI 1.4a, EDID control, and multiple control options including IR and RS-232.
- Supports 4K resolution at 60Hz, ensuring amazing image quality.
- There are 4 HDMI inputs and outputs, ensuring versatile connectivity.

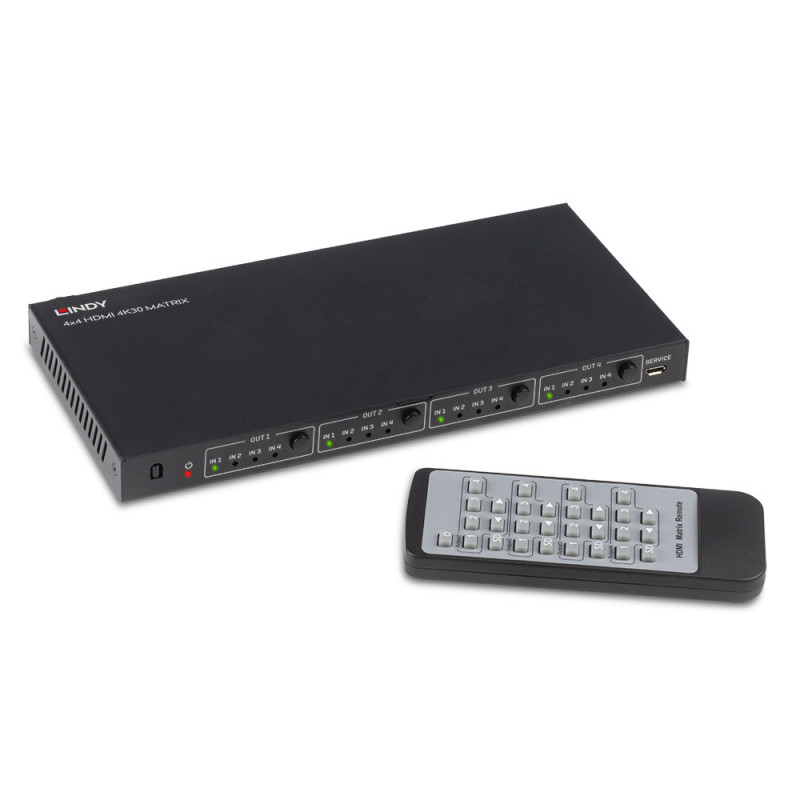

- Control options include IR remote control, push button, and RS-232 for convenience.
- EDID control for optimal audio and video performance.
Features | |
|---|---|
| Product type | HDMI Matrix Switch |
| Model | 4x4 HDMI 4K60 Matrix Switch |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI® 1.4a |
| Supported bandwidth | 10.2 Gbps |
| Maximum resolution | 4096x2160@30Hz 4:4:4 8bit |
| HDCP support | 1.4 |
| Supported audio | Audio Pass-through |
| IR support | 30-60kHz |
| Management | IR, Button, RS-232 |
| Special features | EDID control |

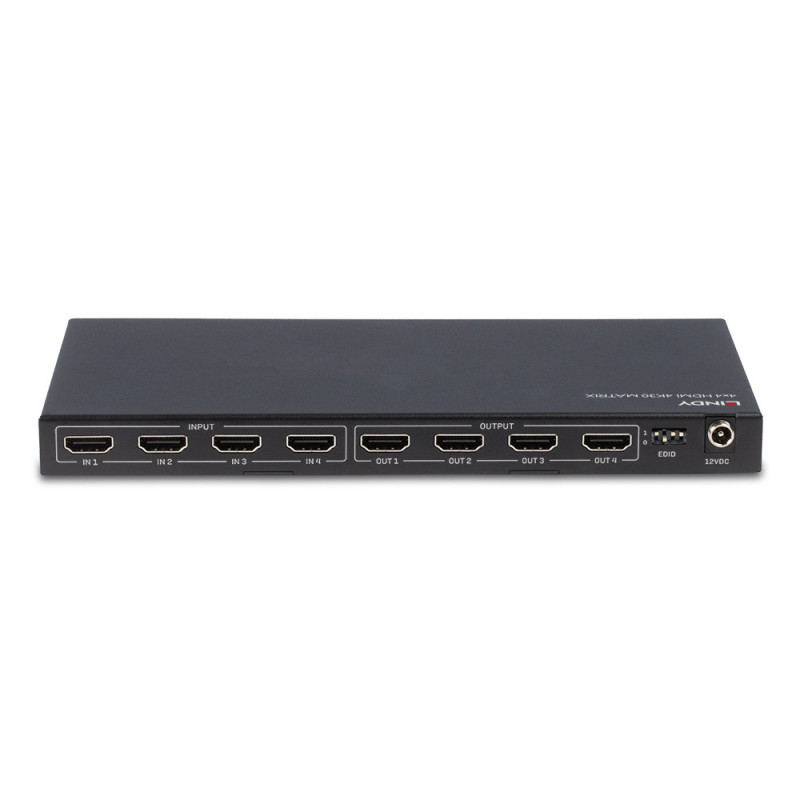

Connectors | |
| Input | 4 x HDMI® (Female) |
| Output | 4 x HDMI® (Female) |
| Management | USB Micro-B (Female) |
| Power supply | 5.5/2.1mm DC jack |
Physical properties | |
| Dimensions (WxHxD) | 220x105x19mm (8.66x4.13x0.75in) |
| Housing | Metal |
| Weight | 0.535kg (1.81lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% (non-condensing) |
| Power requirements | 12VDC 2.5A |
| Color | Black |
Additional information | |
| Packaging type | Cardboard box |
| Package dimensions | 301x61x235mm (11.85x2.4x9.25in) |
| Total weight | 1.35kg (2.98lb) |
| Product compliance | CE, FCC, RoHS, REACH, California Proposition 65 |
