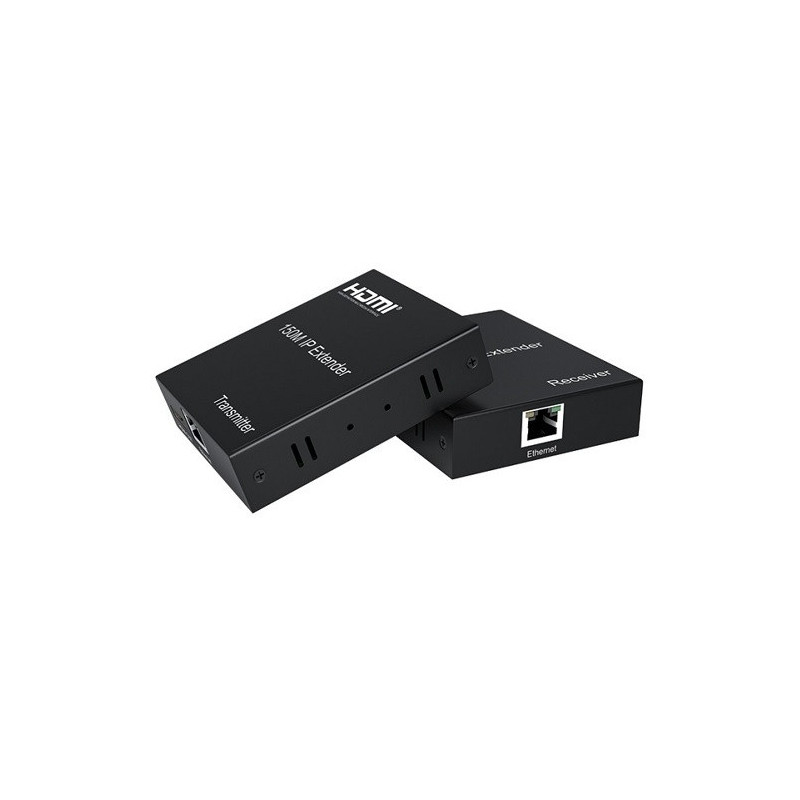

HDMI extender up to 150m, 1080P.
The HDMI extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 150 meters.
Using a network hub, this device can distribute the signal to individual receivers (point-to-multipoint function).
Features:
The device is based on the TCP/IP standard.
Supports HDMI signal transmission up to 150m.
IEEE 802.3 Ethernet standard.
Supports HDCP 1.4 digital content protection standard.
The device supports MJPEG decoding mode.
Supports local loop-out output (monitor/TV can be connected next to the source).
IR control is supported.
Simple connection (plug and play), no additional software required.
Direct connection (point-to-point), signal distribution (point-to-multipoint), cascade connection functions.
Can be applied to TVs, PCs, projectors, DVD players, and video cameras.
Technical data:
Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 150m.
HDMI resolution: 480p,720p,1080p.
Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V /1A.
Max. transmitter (TX) operating current: 500mA.
Max. receiver (RX) operating current: 500mA.
Operating temperature: 0°C ~ +45°C.
Operating humidity: 10-80%RH (non-condensing).
Size: 93x79x21 mm.
Weight: TX228g; RX228g.
Transmitter sockets:
DC/5V - power socket.
RESET - reset button.
IR-TX - IR transmitter socket.
HDMI-IN - HDMI input.
HDMI-OUT - HDMI output.
ETHERNET - CAT5e/CAT6 cable socket.
Receiver sockets:
DC/5V - power socket.
RESET - reset button.
IR-RX - IR receiver socket.
HDMI-OUT - HDMI output.
ETHERNET - CAT5e/CAT6 cable socket.
Package:
Transmitter (TX).
Receiver (RX).
Power adapter x2 (5V/1A DC).
Instructions for use.
Warranty: 24 months
