HDMI extender up to 100m, 4K

HDMI extender up to 100m, 4K

• KVM (USB keyboard connector) HDMI cable connection up to 15m, IR.

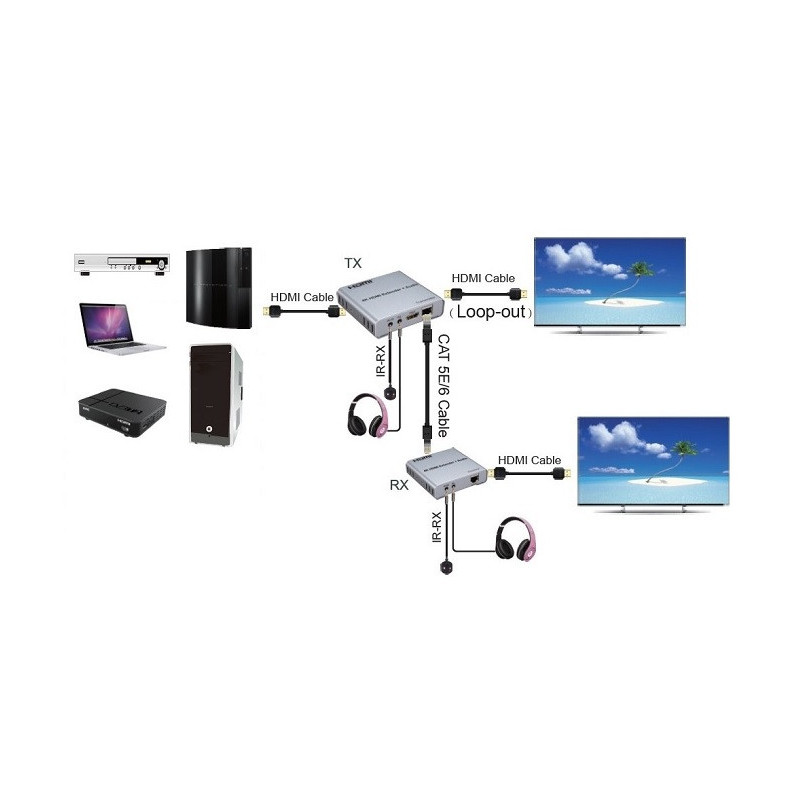

• The extender uses a single Cat5e or Cat6 (recommended) cable instead of an HDMI cable to transmit a high-definition signal up to 100 meters.

Features:

• Resolution 4K (3840x2160).


• HDMI version 1.4b.


• Supports maximum frequency of 3.4Gbps, bandwidth of 340MHz.


• Supports standard AWG26 HDMI cable, input/output up to 15 meters.


• Supports 100m transmission distance.


• Low electricity consumption, low temperature, high safety.


• The transmitter/receiver has a 3.5mm audio port.


• IR control is supported.

Technical data:

• Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 100m.


• HDMI version: HDMI 1.4b.


• HDMI resolution: 4K /1080p / 720p / 576p / 576i / 480p / 480i.


• HDMI AWG26 cable length to transmitter (TX) / receiver (RX): up to 15m.


• Max. transmitter (TX) operating current: 350mA.


• Max. receiver (RX) operating current: 200mA.


• Max. bandwidth: 340MHz.


• Max. data transfer rate: 3x3.4Gbps.


• Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V /1A.


• Operating temperature: -15°C ~ +55°C.


• Operating humidity: 5-90%RH.


• Size: 81x87.5x23.5 mm.


• Weight: TX 210g; RX 200g.

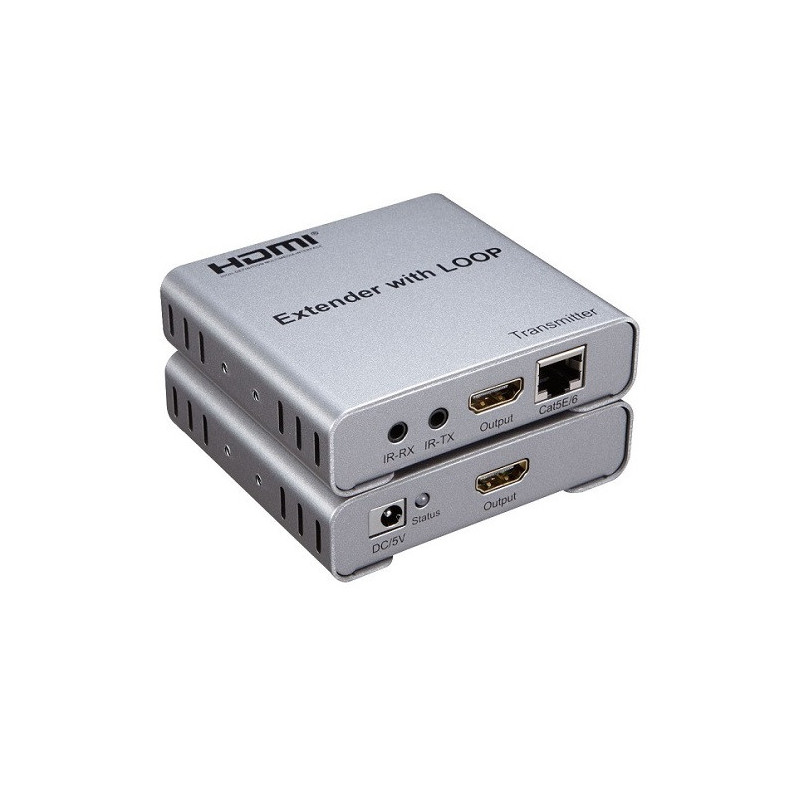

Transmitter sockets:

• DC/5V - power socket.


• STATUS - power indicator and signal light.


• OUTPUT - HDMI output.


• IR-TX - IR transmitter socket.


• R/L - audio output.


• INPUT - HDMI input.


• CAT5E/6 - CAT5e/CAT6 cable socket.


• Receiver sockets:


• DC/5V - power socket.


• STATUS - power indicator and signal light.


• OUTPUT - HDMI output.


• IR-TX - IR receiver socket.


• R/L - audio output.


• CAT5E/6 - CAT5e/CAT6 cable socket.

Package:

• Transmitter (TX).


• Receiver (RX).


• Power adapter x2 (5V/1A DC).


• IR controller x2.


• Instructions for use.
