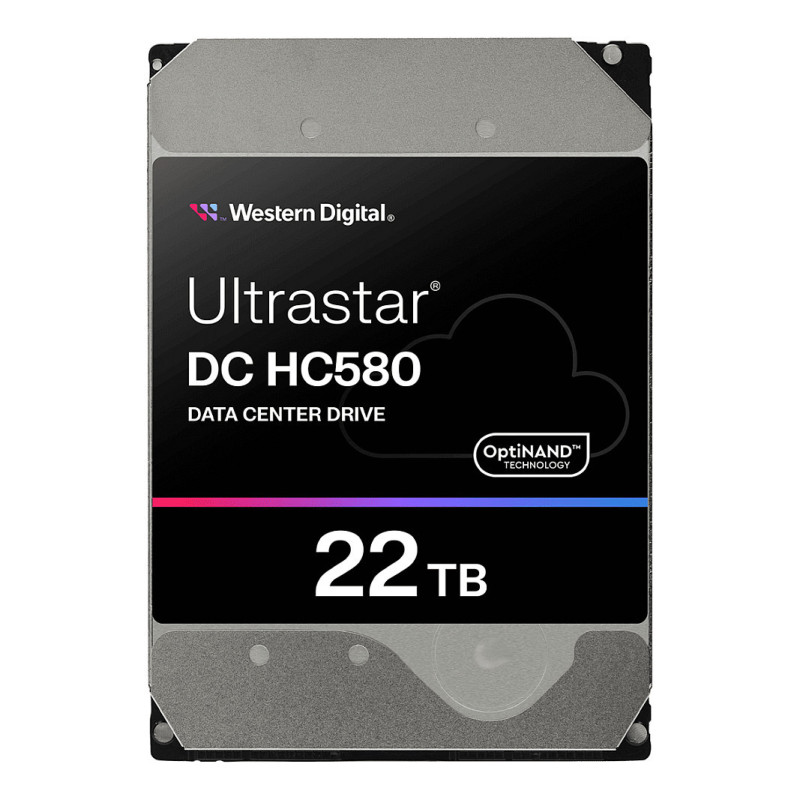

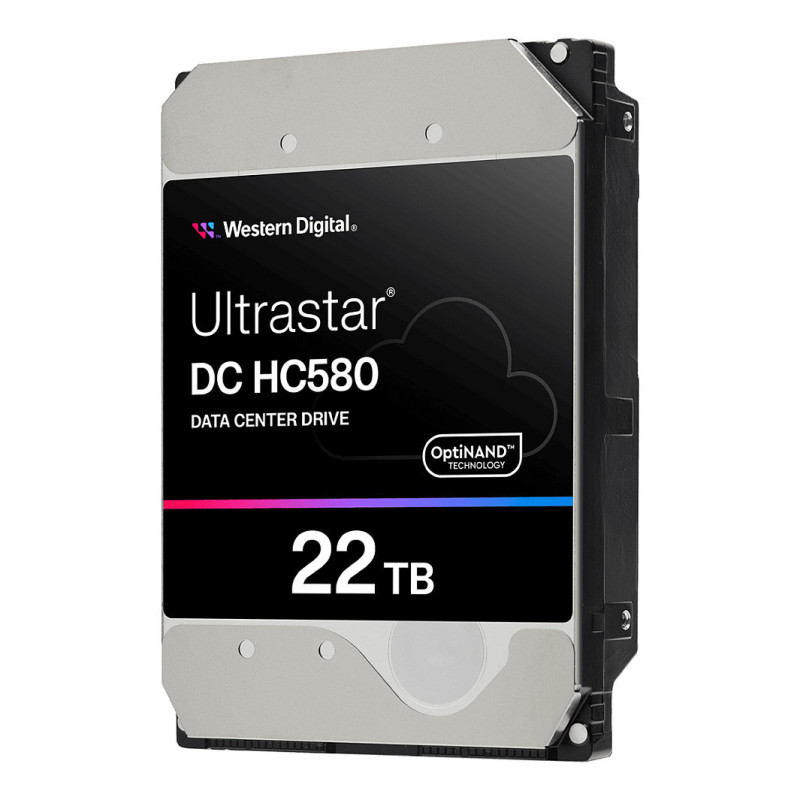

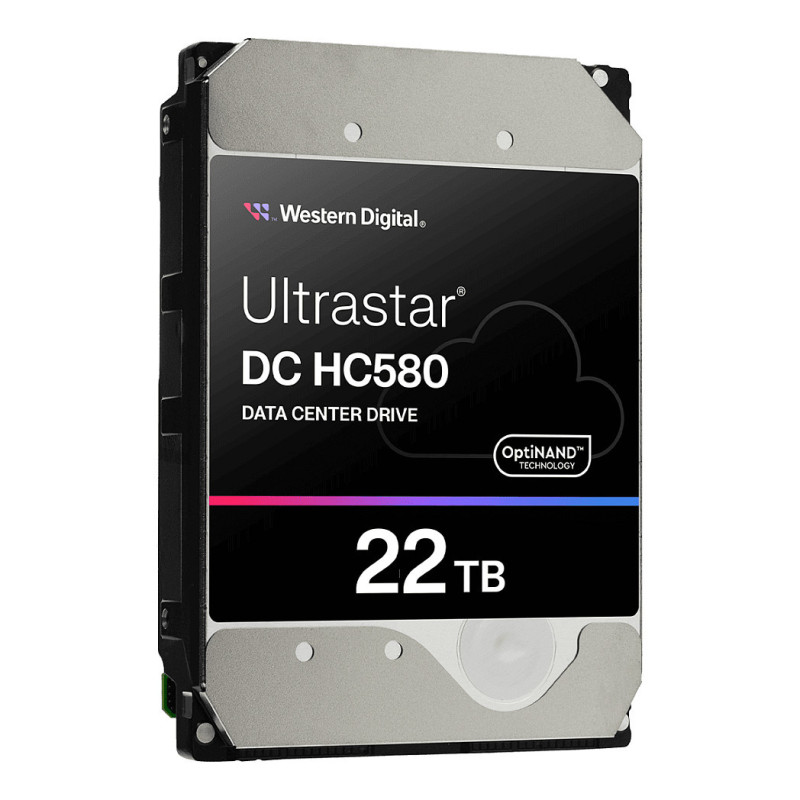

Western Digital Ultrastar DC HC580 internal hard drive

Western Digital Ultrastar DC HC580. HDD capacity: 22 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA
24TB data center HDD with OptiNAND technology
The relentless growth of data means organizations must find ways to efficiently store ever more data. The Ultrastar DC HC580 24TB1 HDD with improved OptiNAND technology is the next step in high-capacity hard drives, allowing data centers to maximize their storage, especially in footprint- and powerconstrained environments.
Keep up with exponential data growth
The 24TB1 Ultrastar DC HC580 HDD with OptiNAND technology's capacity-enabling features provides more efficient storage on a 10-disk CMR drive, enabling you to store more in the same footprint
Innovative technologies for higher capacities
Improved OptiNAND technology, energy-assisted magnetic recording (EAMR), triplestage actuator (TSA), and HelioSeal enable high capacity with low power
Performance and protection
ArmorCache is a feature enabled by OptiNAND that offers higher performance in write cache disabled mode and provides enterprise power loss protection in write cache enabled mode
Designed for data center workloads
The Ultrastar DC HC580 is performance-optimized to handle heavy application workloads of up to 550TB2 per year.
Built with reliability in mind
This robust drive delivers dependability in intense data center environments with up to 2.5M hours MTBF3 (projected).

Features

HDD capacity: 22 TB
HDD speed: 7200 RPM
Storage drive buffer size: 512 MB
HDD size: 3.5"
Interface: Serial ATA
Type: HDD
Component for: Server/workstation
Hot-swap: No
HDD sustained transfer rate: 291 MiB/s
Average latency: 4.16 ms
Workload rate limit: 550 TB/year
Mean time between failures (MTBF): 2500000 h

Power

Power consumption (read): 8.5 W
Power consumption (write): 8.5 W
Power consumption (idle): 5.5 W
Operating voltage: 5 / 12 V

Operational conditions

Operating temperature (T-T): 5 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating vibration: 0.7 G
Non-operating vibration: 1.04 G
Operating shock: 40 G
Non-operating shock: 200 G

Weight dimensions

Width: 101.6 mm
Height: 26.1 mm
Depth: 147 mm
Weight: 670 g

Packaging data

Quantity per pack: 1 pc(s)

Other features

Warranty period: 5 year(s)
Windows operating systems supported: Yes
Linux operating systems supported: Yes
