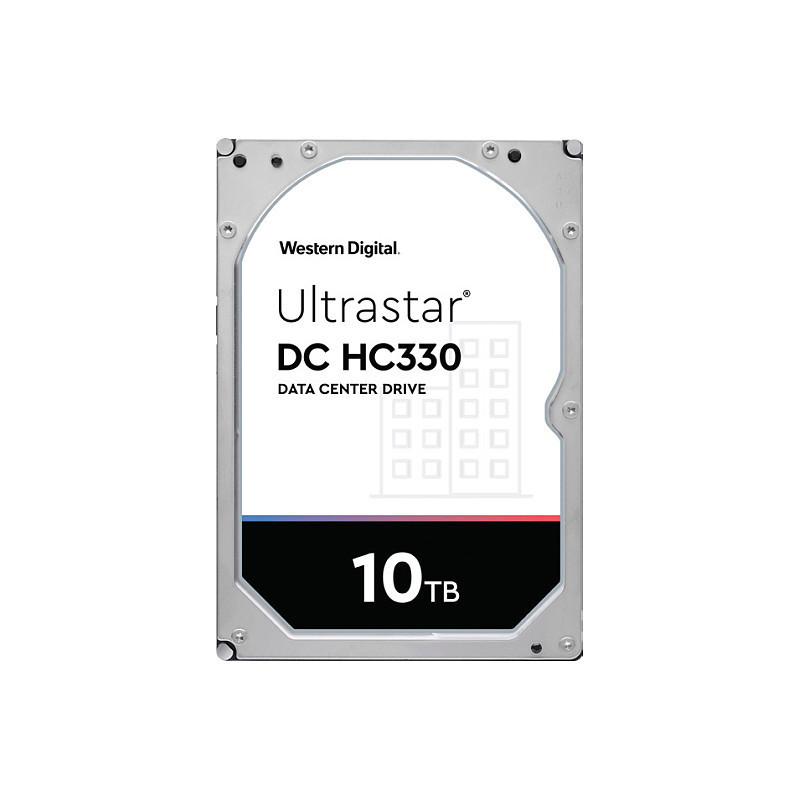

Western Digital Ultrastar DC HC330 internal hard drive

Western Digital Ultrastar DC HC330. HDD capacity: 10 TB, HDD speed: 7200 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: SAS

Medium Capacity for High Access-Density Requirements

Delivering Economics and Access Speed to Data Center Applications and Workloads

As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e3 sector size.

Solves Access Density Challenges

Economical Capacity

4TB, 6TB, 8TB, and 10TB models for lower acquisition cost.

High Performance

Fast data access with 7200 RPM speed, transferring up to 255 MB/s.

Drop-In Ready

SAS and SATA options support traditional servers and storage.

Features

HDD capacity: 10 TB
HDD speed: 7200 RPM
Storage drive buffer size: 256 MB
HDD size: 3.5"
Interface: SAS
Type: HDD
HDD interface transfer rate: 12 Gbit/s
HDD sustained transfer rate: 260 MiB/s
Read seek time: 8 ms
Write seek time: 8.6 ms
Average latency: 4.16 ms
Uncorrectable Bit Error Rate (UBER): < 1 per 10^15 bits read
Feature: 24/7 operation
Start/stop cycles: 600000
Noise level (idle): 3.4 dB
Mean time between failures (MTBF): 2000000 h

Power

Power consumption (idle): 9 W
Operating voltage: 5 / 12 V

Operational conditions

Operating temperature (T-T): 5 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating vibration: 0.67 G
Non-operating vibration: 1.04 G
Operating shock: 70 G
Non-operating shock: 250 G

Weight & dimensions

Width: 101.6 mm
Height: 147 mm
Depth: 26.1 mm
Weight: 750 g

Packaging data

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84717050
