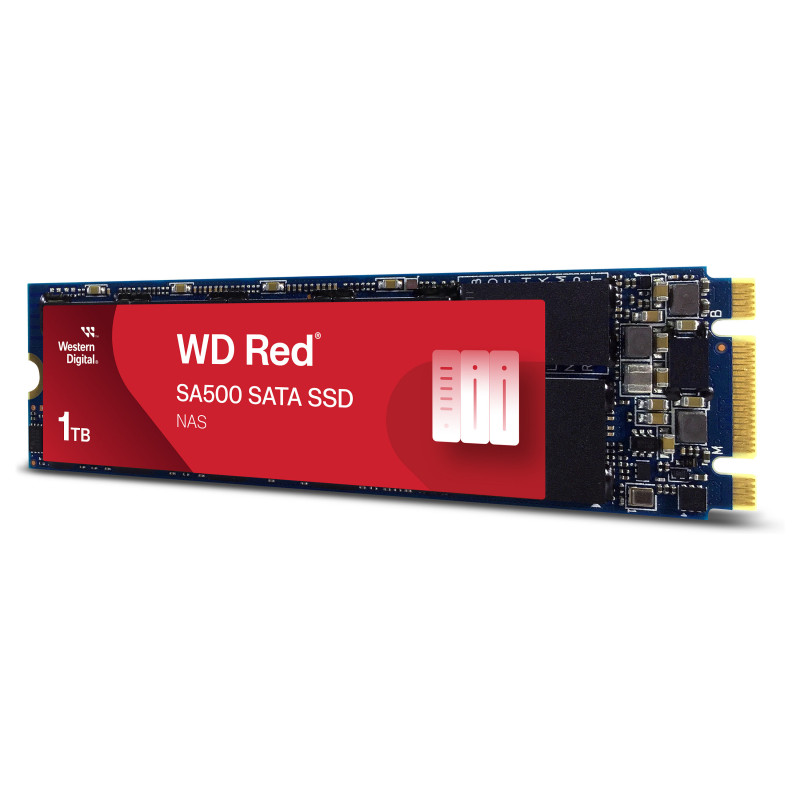

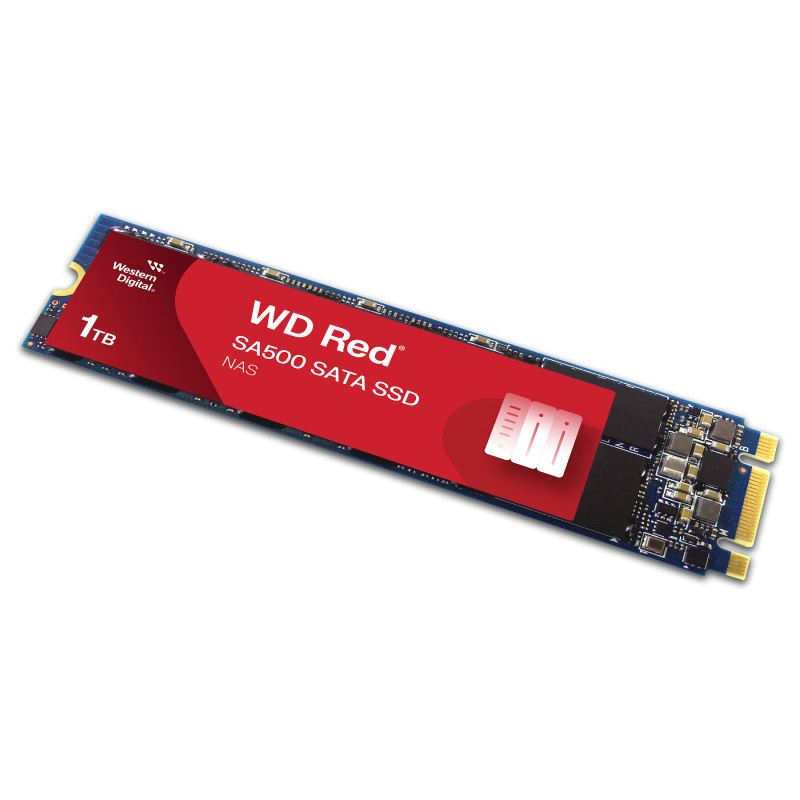

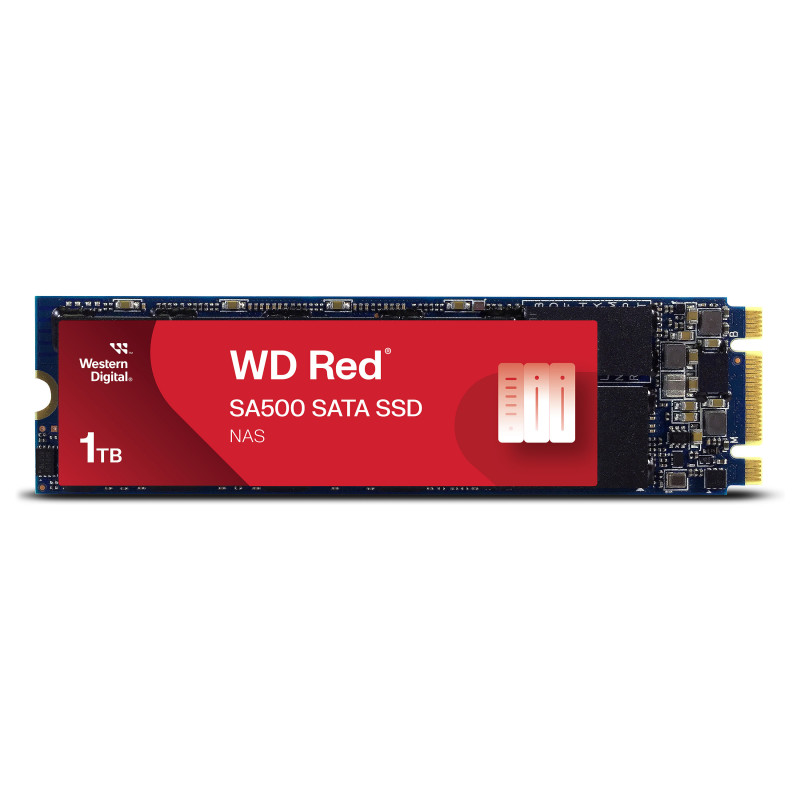

Western Digital Red WD SA500

Western Digital Red WD ™ SA500 SATA SSD M.2 2280 POWERED BY SANDISK 1 TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Supercharge your NAS
Boost your NAS system's performance and responsiveness with the WD Red™ SA500 NAS SATA SSD. Since your NAS system is always on, a reliable drive is essential. Unlike standard SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and other demanding applications. With 2.5" and M.2 form factors and capacities from 500GB up to 4TB1 (2.5" only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.
The Drive For NAS
Speed
Optimized for caching in NAS systems to rapidly access your most frequently used content
Endurance
For tough workloads demanded by NAS, giving you the reliability you need in a 24/7 environment
Flexible
Available in 2.5" and M.2 form factors so you can upgrade your existing NAS system or design a new one from scratch

Features

SSD capacity: 1 TB
SSD form factor: M.2
Interface: Serial ATA III
NVMe: No
Memory type: 3D NAND
Component for: PC/Laptop
Data transfer rate: 6 Gbit/s
Read speed: 560 MB/s
Write speed: 530 MB/s
Random read (4KB): 95000 IOPS
Random write (4KB): 85000 IOPS
Uncorrectable Bit Error Rate (UBER): < 1 per 10^17 bits read
Mean time between failures (MTBF): 1750000 h
TBW rating: 600
Certification: FCC, UL, TUV, KC, BSMI, VCCI

Power

Operating voltage: 5 V
Power consumption (read): 2.55 W
Power consumption (write): 3.75 W
Power consumption (sleep): 0.012 W

Weight dimensions

Width: 22 mm
Depth: 80 mm
Height: 2.38 mm
Weight: 7 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -55 - 85 °C
Operating vibration: 5 G
Non-operating vibration: 4.9 G
Operating shock: 1500 G

Logistics data

Harmonized System (HS) code: 84717070
