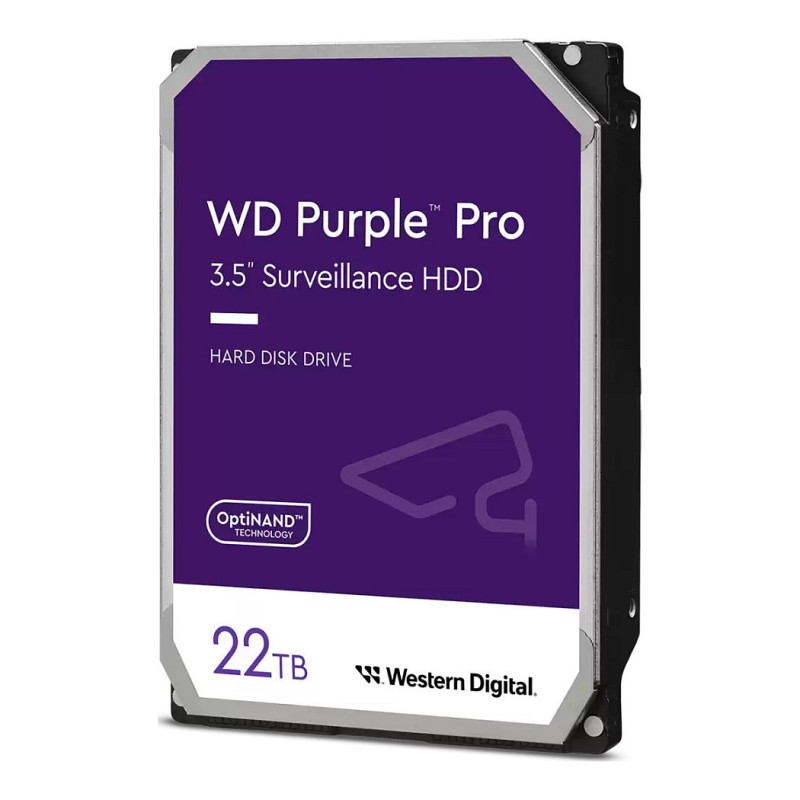

Western Digital Purple Pro internal hard drive

Western Digital Purple Pro. HDD capacity: 22 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III

Advanced Storage for Smart Video Solutions
WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Purpose-built storage for your smart video solution
The WD Purple™ Pro HDD, with OptiNAND™ technology in 22TB, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.

Western Digital's exclusive AllFrame™ AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.

Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.

Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics appliances, and deep learning analytics servers.

Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.

Proactive storage management with WDDA™
Western Digital Device Analytics™ (WDDA) provides drive health management features for compatible recorders and video management systems.

Features

HDD capacity: 22 TB
HDD speed: 7200 RPM
Storage drive buffer size: 512 MB
HDD size: 3.5"
Interface: Serial ATA III
Type: HDD
Component for: Surveillance system
HDD interface transfer rate: 6 Gbit/s
RAID levels: JBOD
Feature: Advanced Format (AF)
Feature: 24/7 operation
Start/stop cycles: 600000
Workload rate limit: 550 TB/year
Noise level (idle): 20 dB
Mean time between failures (MTBF): 2500000 h

Power

Power consumption (standby): 1.2 W
Power consumption (idle): 5.6 W

Operational conditions

Operating temperature (T-T): 0 - 65 °C
Storage temperature (T-T): -40 - 70 °C
Operating shock: 40 G
Non-operating shock: 200 G

Weight & dimensions

Width: 101.6 mm
Height: 26.1 mm
Depth: 147 mm
Weight: 670 g

Packaging data

Quantity per pack: 1 pc(s)

Other features

Compliance certificates: RoHS
