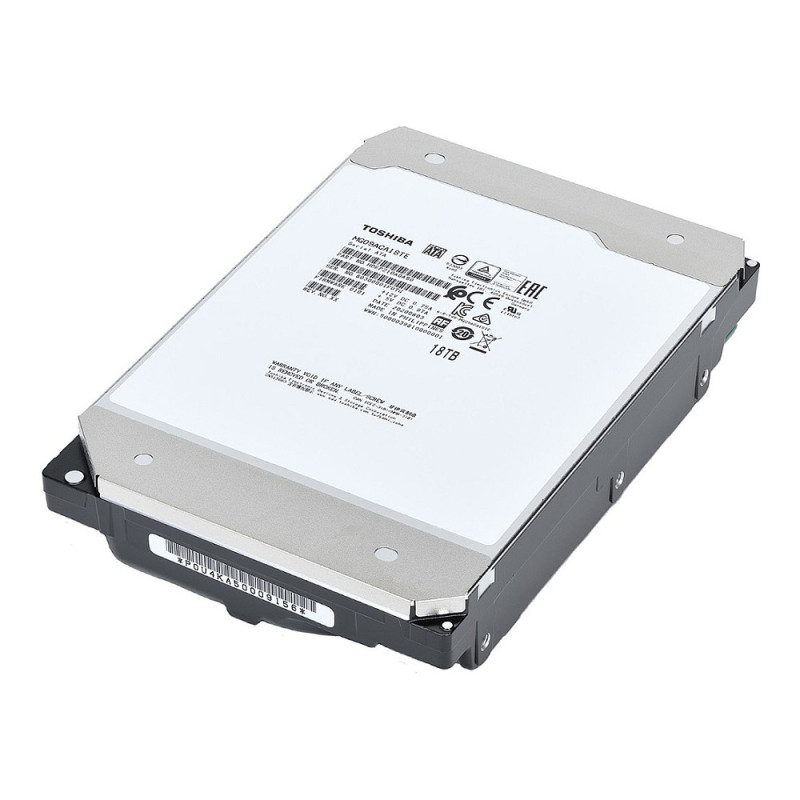

Toshiba MG09 internal hard drive

Toshiba MG09. HDD capacity: 18 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: SAS
The MG09 Series features Toshiba's third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.

Features

HDD capacity: 18 TB
HDD speed: 7200 RPM
Storage drive buffer size: 512 MB
HDD size: 3.5"
Interface: SAS
Type: HDD
Component for: NAS
HDD interface transfer rate: 12 Gbit/s
HDD sustained transfer rate: 268 MiB/s
Feature: 24/7 operation
Start/stop cycles: 600000
Workload rate limit: 550 TB/year
Noise level (idle): 20 dB
Mean time to failure (MTTF): 2500000 h

Power

Power consumption (typical): 8.74 W
Power consumption (idle): 4.54 W
Operating voltage: 5 / 12 V

Operational conditions

Operating temperature (T-T): 5 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating vibration: 0.75 G
Non-operating vibration: 3 G
Operating altitude: -305 - 3048 m
Non-operating altitude: -305 - 12192 m
Operating shock: 70 G
Non-operating shock: 250 G

Weight dimensions

Width: 101.8 mm
Height: 26.1 mm
Depth: 147 mm
Weight: 720 g

Packaging data

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84717050
