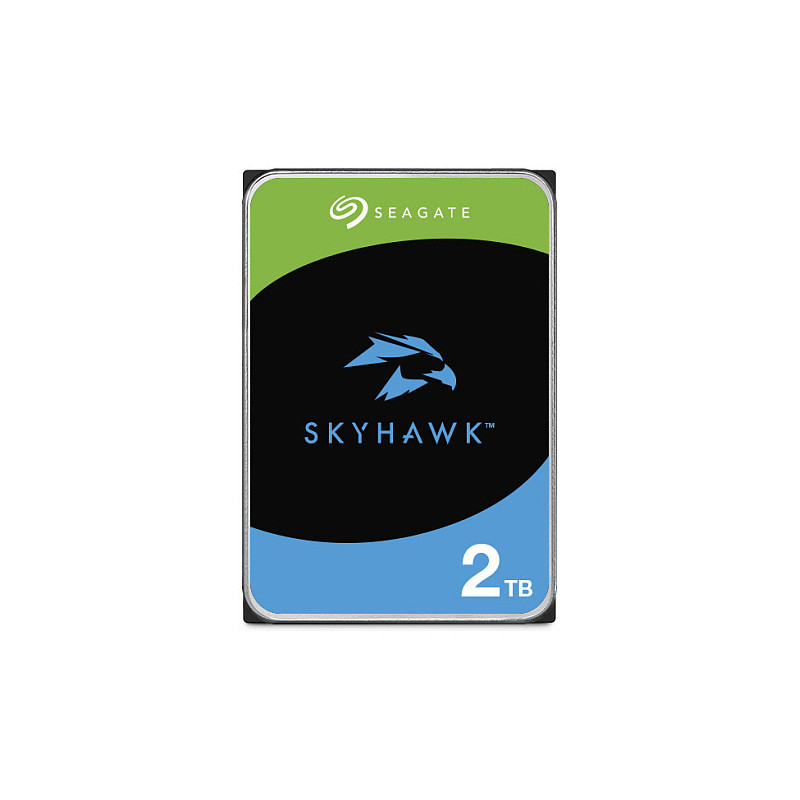

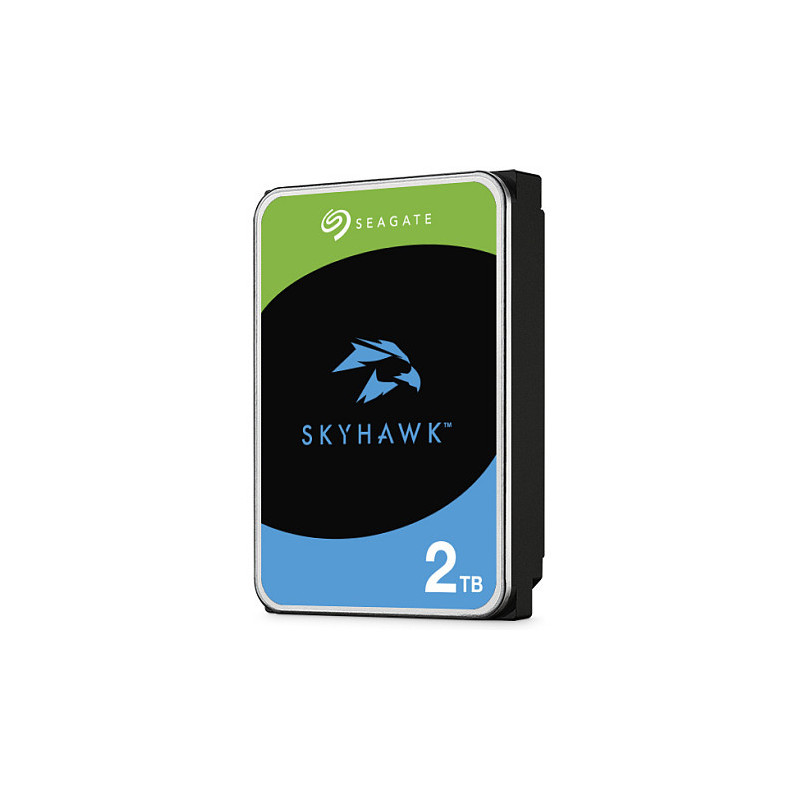

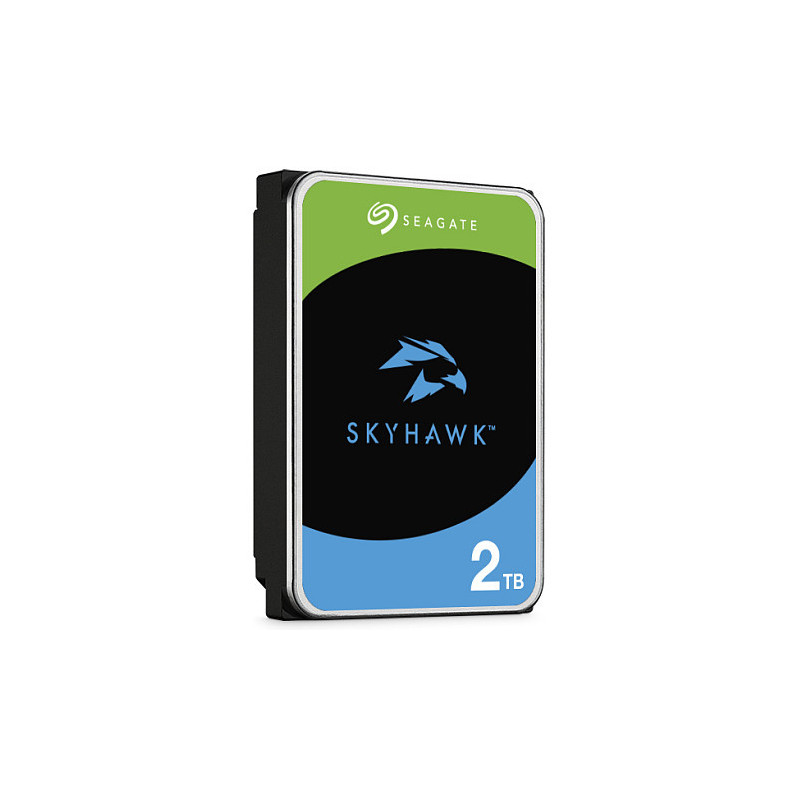

Seagate SkyHawk internal hard drive

Seagate SkyHawk . HDD capacity: 2 TB, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III

SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.

ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.

SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.

Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.

RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.

ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.

1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.

Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability

Features

HDD capacity: 2 TB
Storage drive buffer size: 256 MB
HDD size: 3.5"
Interface: Serial ATA III
Type: HDD
Component for: PC
HDD interface transfer rate: 6 Gbit/s
HDD sustained transfer rate: 180 MiB/s
Uncorrectable Bit Error Rate (UBER): < 1 per 10^14 bits read
Feature: Rotational Vibration (RV) sensors
Feature: 24/7 operation
Feature: RV sensor(s)
Start/stop cycles: 600000
Workload rate limit: 180 TB/year
Mean time between failures (MTBF): 1000000 h

Power

Power consumption (typical): 3.7 W
Power consumption (off): 0.25 W
Power consumption (idle): 2.5 W
Start-up current: 1.8 A

Operational conditions

Operating temperature (T-T): 0 - 60 °C

Weight & dimensions

Width: 101.6 mm
Height: 20.2 mm
Depth: 147 mm
Weight: 415 g

Other features

Maximum number of cameras supported: 64
