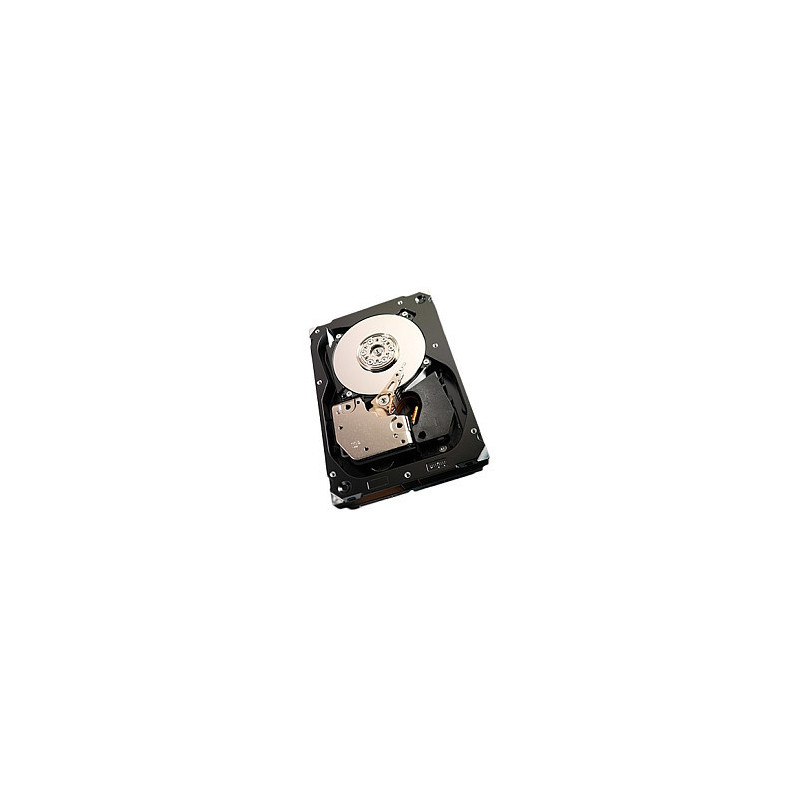

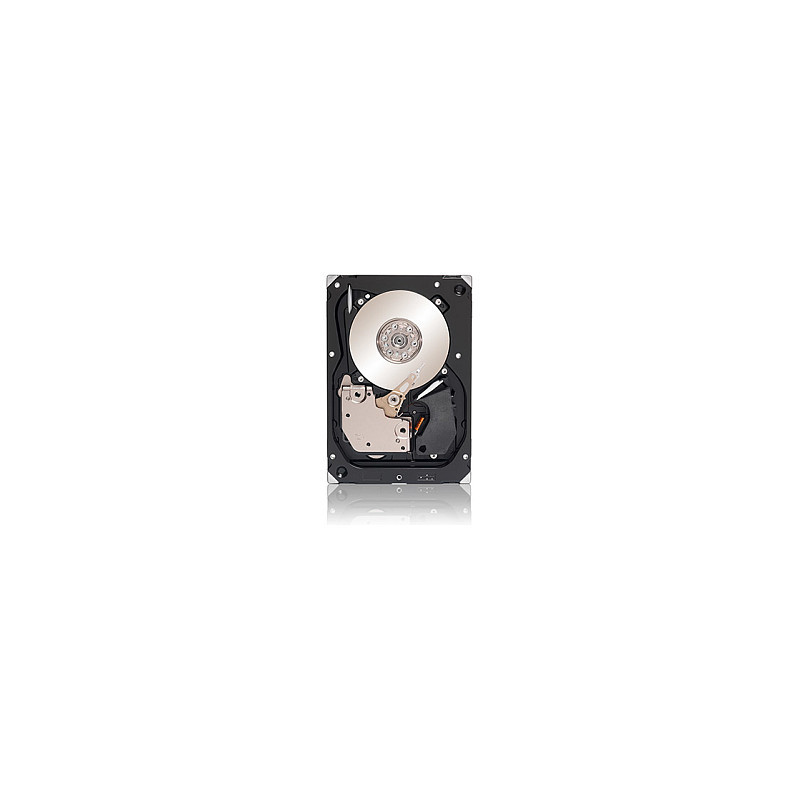

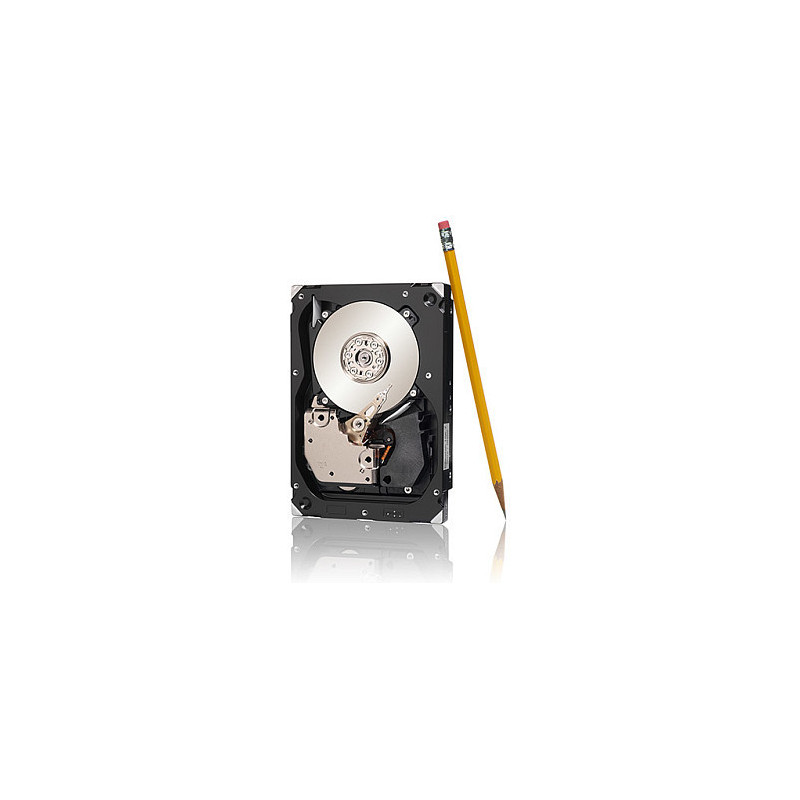

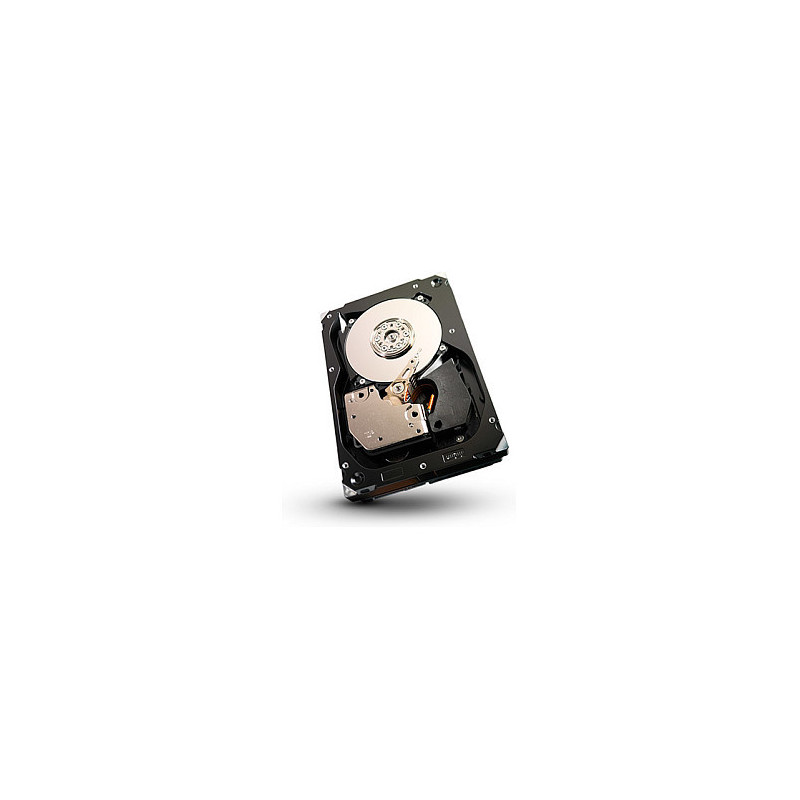

Seagate Cheetah 600GB 3.5" SAS internal hard drive

Seagate Cheetah 600GB 3.5" SAS. HDD capacity: 600 GB, HDD speed: 15000 RPM, Storage drive buffer size: 16 MB, HDD size: 3.5", Interface: SAS
The higher performance and capacity of Seagate Cheetah 15K.7 drives reduce storage costs per GB and increase capacity per watt. The drive has the industry's highest reliability rating, reducing drive replacement costs. The Cheetah 15K.7 drive includes Seagate PowerTrim technology, which dynamically optimizes drive power consumption at all levels of activity.
- Third-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 171 MB/sec.
- Industry's highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 4Gb/s FC or 6Gb/s SAS interfaces

Features

HDD capacity: 600 GB
HDD speed: 15000 RPM
Storage drive buffer size: 16 MB
HDD size: 3.5"
Interface: SAS
Type: HDD
Component for: Server/workstation
HDD number of heads: 8
Read seek time: 3.4 ms
Write seek time: 3.9 ms
Average latency: 2 ms
Mean time between failures (MTBF): 1600000 h

Power

Power consumption (typical): 16.35 W
Power consumption (idle): 11.68 W
Operating voltage: 5 / 12 V

Operational conditions

Operating temperature (T-T): 5 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating vibration: 1 G
Non-operating vibration: 3 G
Operating shock: 60 G
Non-operating shock: 300 G

Weight dimensions

Width: 101.6 mm
Height: 25.4 mm
Depth: 146.5 mm
Weight: 686 g

Logistics data

Harmonized System (HS) code: 84717050
