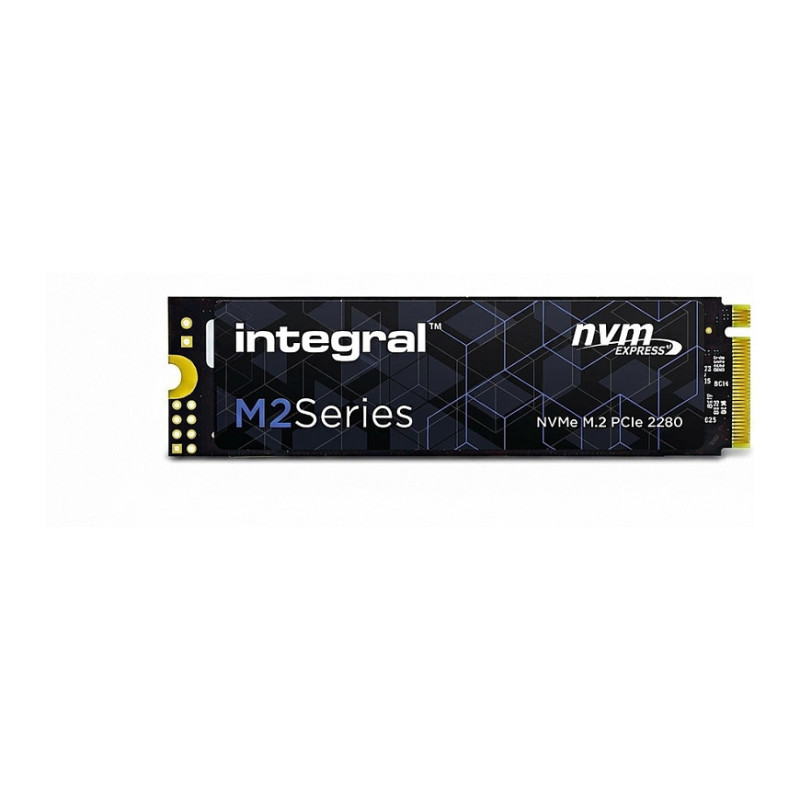

Integral INSSD512GM280NM2 internal solid state drive

Integral 512GB SSD M.2 2280 NVME 1.4 PCIe Gen3 x4 R-3450MB/s W-2400MB/s TBW 180 M2. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 3450 MB/s, Write speed: 2400 MB/s, Data transfer rate: 8 Gbit/s, Component for: PC/Laptop

The M2 Series M.2 PCIe NVMe SSDs are up to seven times faster in performance when compared to SATA SSDs and are compatible with most computing hardware and software that support the NVME standard, including small form factor machines (e.g Intel NUC), Ultrabooks and enthusiast desktops

Features

SSD capacity: 512 GB
SSD form factor: M.2
Interface: PCI Express 3.1
Feature: NVMe
Memory type: 3D TLC
Component for: PC/Laptop
Data transfer rate: 8 Gbit/s
Read speed: 3450 MB/s
Write speed: 2400 MB/s
Random read (4KB): 188000 IOPS
Random write (4KB): 156000 IOPS
Feature: S.M.A.R.T. support
Feature: TRIM support
Mean time between failures (MTBF): 1500000 h
Protection features: Shock resistant
TBW rating: 256
Certification: CE, FCC

Power

Operating voltage: 3.3 V
Power consumption (read): 2822 W
Power consumption (write): 2970 W
Power consumption (idle): 1.056 W

Weight & dimensions

Width: 22 mm
Depth: 80 mm
Height: 2.25 mm
Weight: 10 g

Packaging data

Package width: 115 mm
Package depth: 132 mm
Package height: 57 mm
Package weight: 17 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Other features

Compliance certificates: CE, Federal Communications Commission (FCC), UKCA
