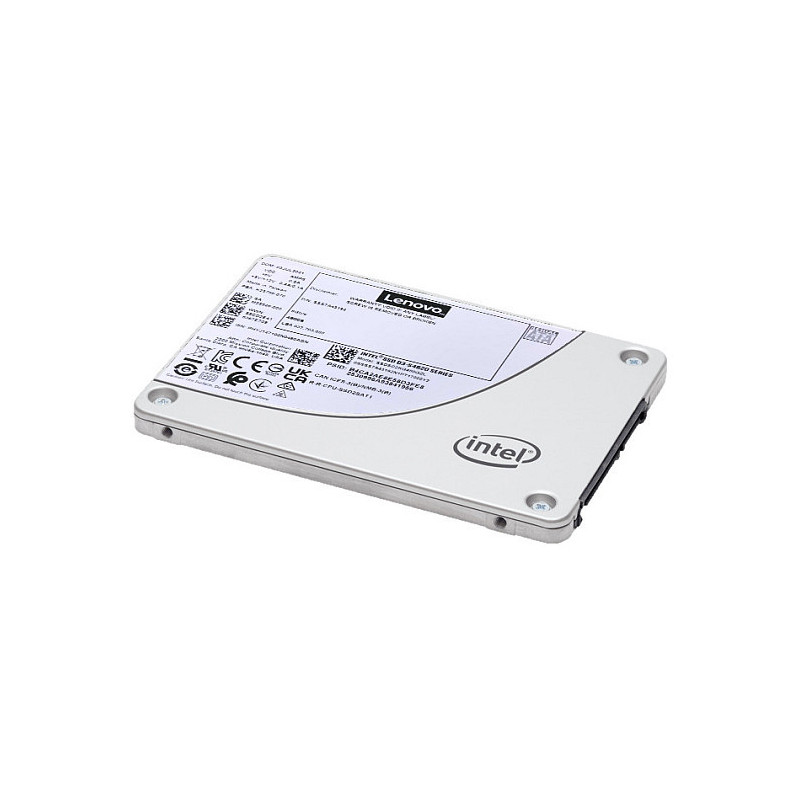

Lenovo 4XB7A17125 internal solid state drive

Lenovo 4XB7A17125. SSD capacity: 480 GB, SSD form factor: 2.5", Read speed: 550 MB/s, Write speed: 500 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation

By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel's latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.

Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.

Features

Security algorithms: 256-bit AES
SSD capacity: 480 GB
SSD form factor: 2.5"
Interface: Serial ATA III
Memory type: 3D TLC NAND
Component for: Server/workstation
Feature: Hardware encryption
Data transfer rate: 6 Gbit/s
Read speed: 550 MB/s
Write speed: 500 MB/s
Random read (4KB): 82000 IOPS
Random write (4KB): 50000 IOPS
Read latency: 36 µs
Write latency: 36 µs
Feature: S.M.A.R.T. support
Feature: Hot-swap
Mean time between failures (MTBF): 2000000 h

Power

Power consumption (write): 3 W

Weight & dimensions

Width: 70 mm
Depth: 100 mm
Height: 7 mm
Weight: 70 g

Packaging data

Package width: 174 mm
Package depth: 133 mm
Package height: 63 mm
Package weight: 434 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Operating vibration: 2.17 G
Non-operating vibration: 3.13 G
Operating shock: 1000 G
Non-operating shock: 1000 G
Maximum operating altitude: 3050 m

Logistics data

Harmonized System (HS) code: 84717070
