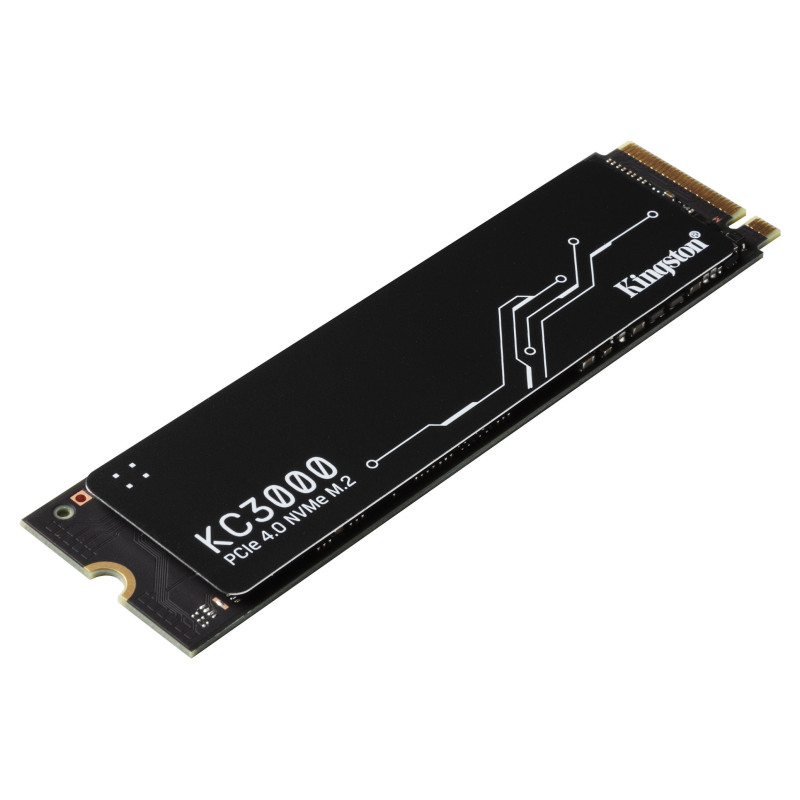

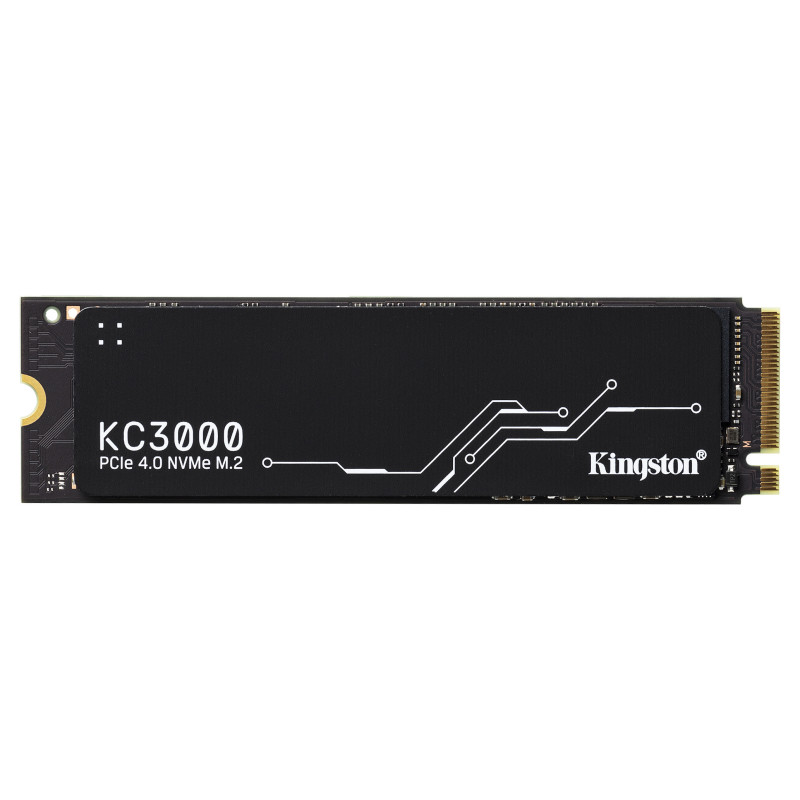

Kingston Technology KC3000

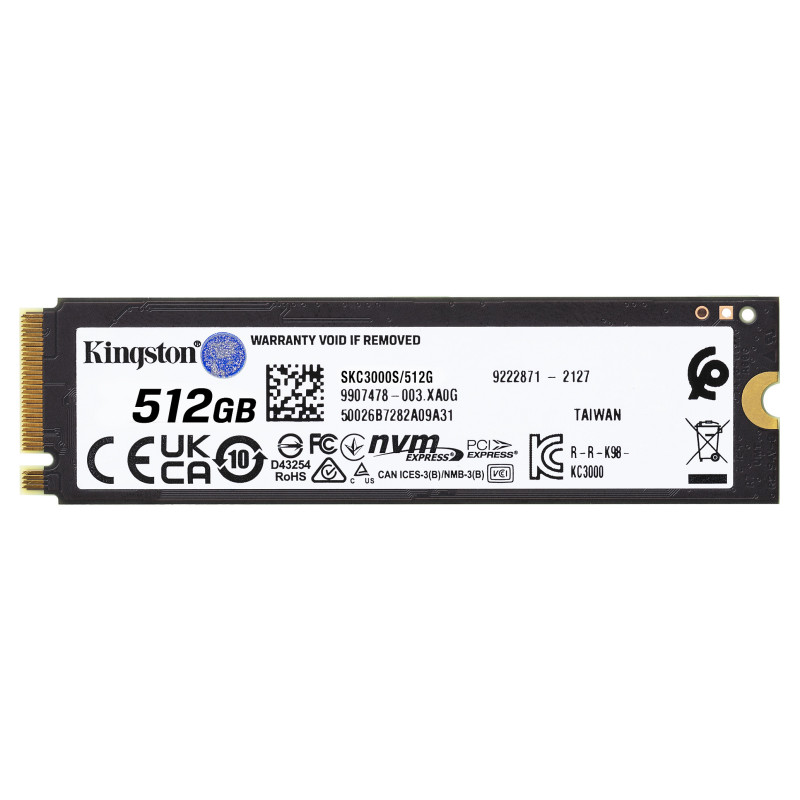

Kingston Technology 512G KC3000 M.2 2280 NVMe SSD. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 3900 MB/s, Component for: PC/Laptop

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s* read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.

The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.

Full capacities available from 512GB-4096GB** to meet your data storage requirements.

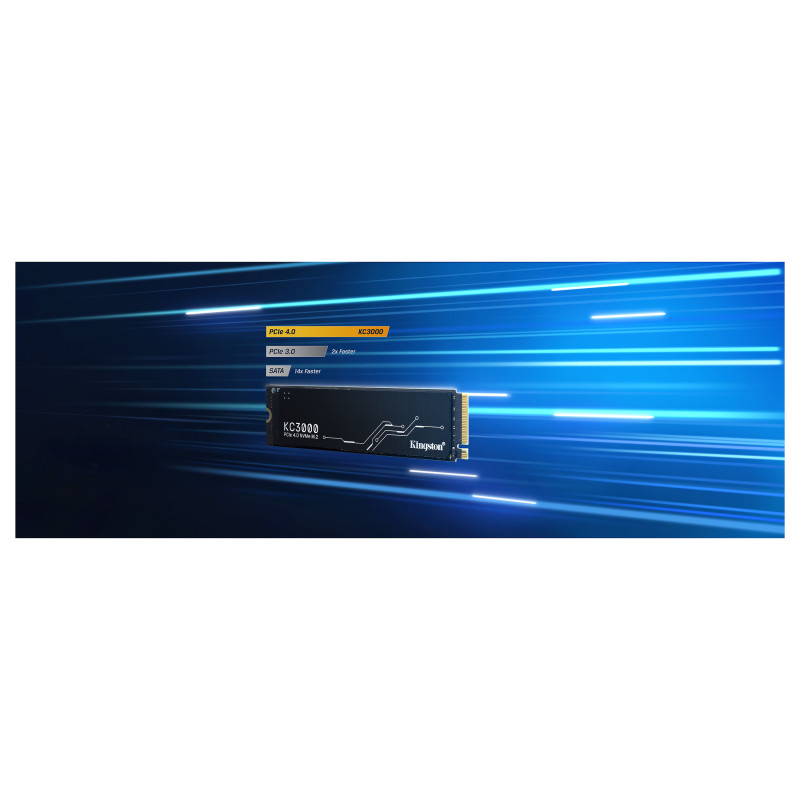

PCIe 4.0 NVMe technology
Master intensive applications with speeds of up to 7,000/7,000MB/s* read/write.

Store more
Upgrade and manage storage with full capacities of up to 4096GB**.

Greater flexibility

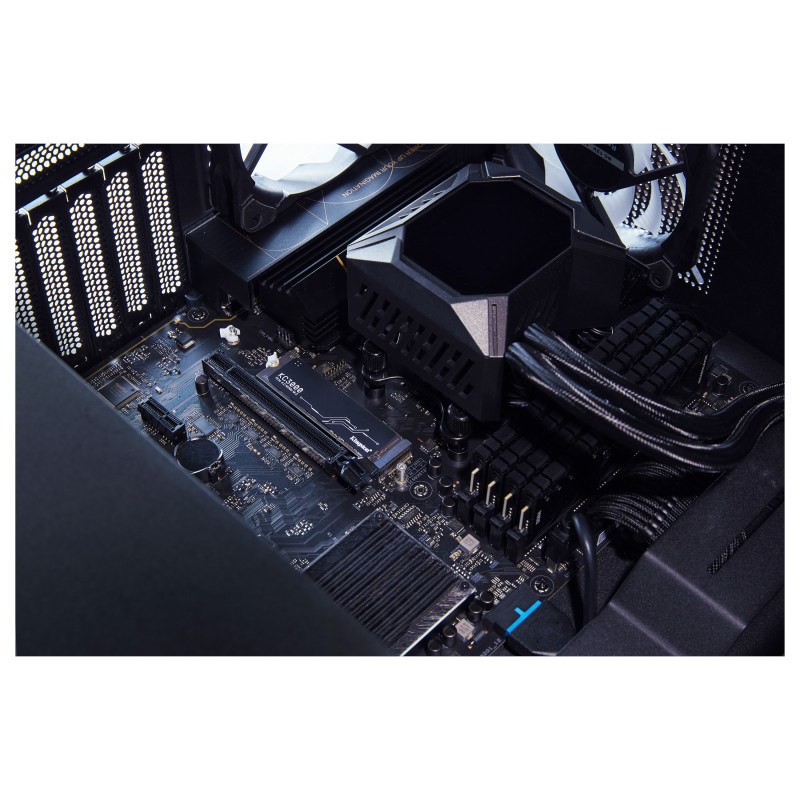

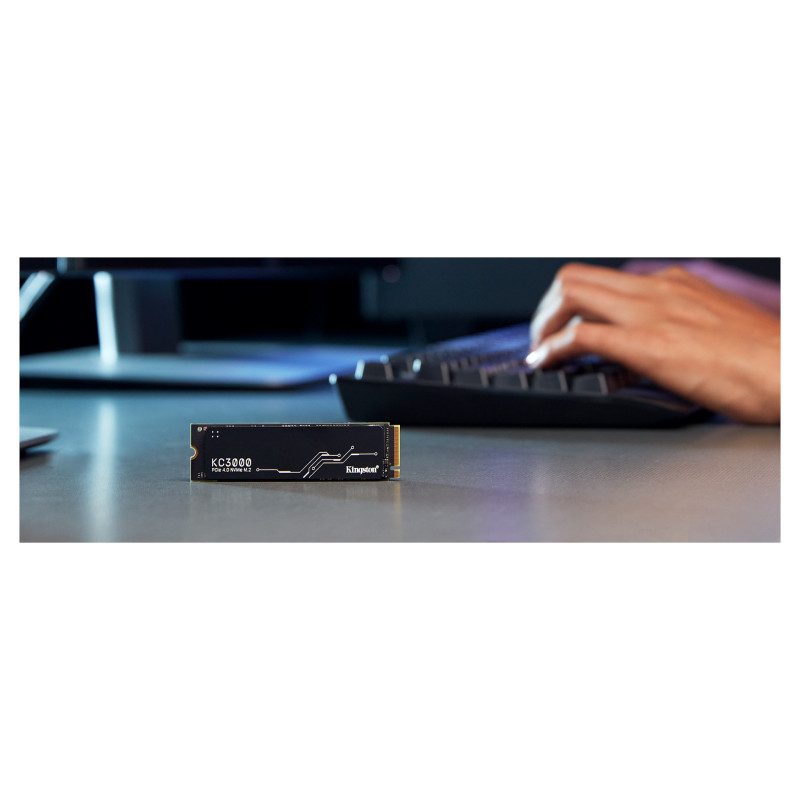

Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.

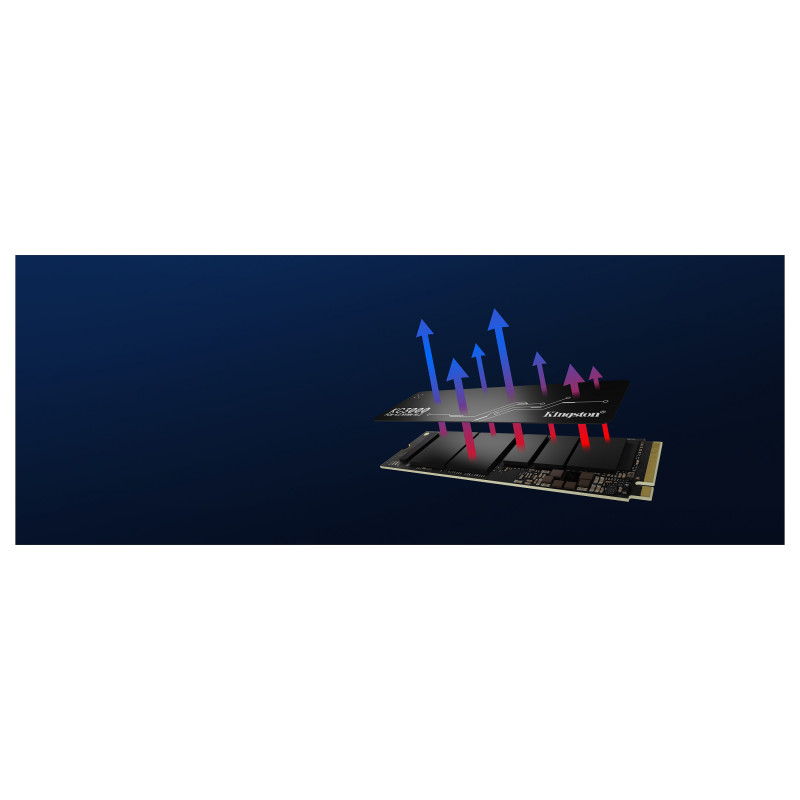

Low-profile graphene aluminium heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.

Features

SSD capacity: 512 GB
SSD form factor: M.2
Interface: PCI Express 4.0
Feature: NVMe
Memory type: 3D TLC
Component for: PC/Laptop
M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 7000 MB/s
Write speed: 3900 MB/s
Random read (4KB): 450000 IOPS
Random write (4KB): 900000 IOPS
Controller type: Phison E18
Mean time between failures (MTBF): 1800000 h
TBW rating: 400

Power

Power consumption (read): 2.7 W
Power consumption (write): 4.1 W
Power consumption (average): 0.34 W
Power consumption (idle): 0.005 W

Weight & dimensions

Width: 80 mm
Depth: 22 mm
Height: 2.21 mm
Weight: 7 g

Packaging data

Package width: 129.5 mm
Package depth: 8.38 mm
Package height: 184.2 mm
Package weight: 31.33 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C

Other features

Cooling type: Heatsink

Logistics data

Country of origin: China, Taiwan
Master (outer) case width: 135.9 mm
Master (outer) case length: 203.2 mm
Harmonized System (HS) code: 84717070
Master (outer) case height: 69.8 mm
Master (outer) case gross weight: 391.29 g
Products per master (outer) case: 10 pc(s)
