Data Server 8xhdd 3.5', 3u 19' Rack, G3900, 4gb Ram, 128GB M2

Data server 8x HDD 3.5", 3U 19" rack, G3900, 4GB RAM, 128GB M2

• 8x 3.5" HDD hard drive data server SYS-6028B-T.


• Designed for data storage of TV shows, advertising production studios, video and surveillance system data storage and archiving.

Specifications:
Chipset:

• The Intel Skylake B150.

Processor

• SkyLake DT Intel Celeron G3900, 2.80 GHz

Connectors:

• 1x PCI-E / mini PCI-E expansion slot.

Working memory

• Internal memory: 4GB, 2133 MHz


• Internal memory type: 2x 288-pin DDR4 DIMM.


• Maximum internal memory: 32GB NON ECC DIMM.


• DIMM support: 16GB, 8GB, 4GB.

Power supply

• Power supply power: 1x 250W.


• Entrance: 100 - 240V AC, 50-60Hz.

Media

• System disk: mSata 128GB.


• Maximum system drives: 2x mSATA.

Container

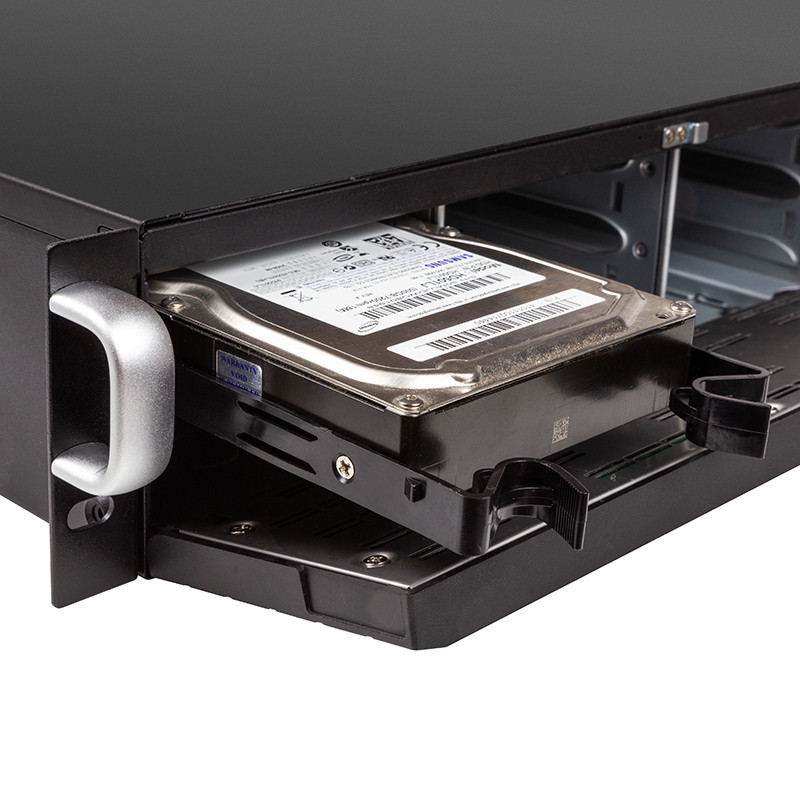

• Maximum drive support: up to 8x 3.5" SATA HOT SWAP.


• Maximum SATA disk capacity: 14TB.


• Maximum server capacity: 8x 14TB = 112TB.

Interfaces

• USB: 2x USB 2.0 (front), 2x USB 3.0 (rear).


• VGA: 1x VGA.


• HDMI: 2 HDMIs.


• AUDIO:


• 1x 3.5 mm MIC IN.


• 1x 3.5 mm Line OUT.

Network

• 2x Intel Gigabit Port.

Design

• Enclosure type: Rack 3U19.
