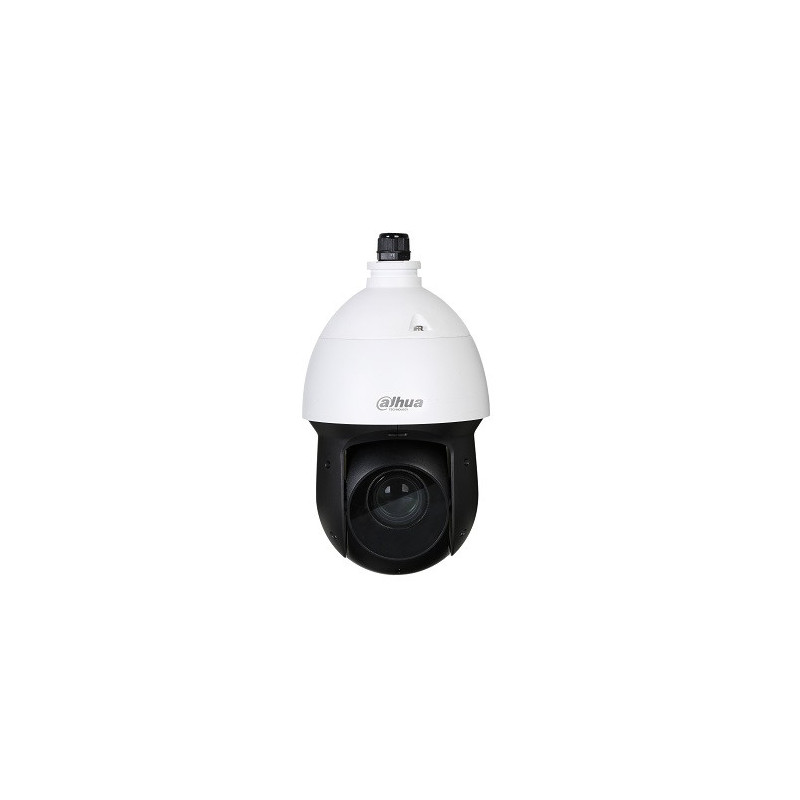

HD-CVI controlled camera with IR SD49225-HC-LA

HD-CVI controlled camera with IR SD49225-HC-LA HD-CVI FULL HD controlled camera STARLIGHT, 2MP 1080P(1920×1080), Day/Night with night IR illumination, 6pcs. 3rd generation high-power IR diodes, illumination about 100m., 1/2.8' CMOS STARVIS sensor, 2M(1~25fps), Zoom: x25 Optical x16 digital, BLC / HLC / 3D NR /WDR 120dB, moisture resistant IP66 (designed for outdoor conditions), HD-CVI technology allows HD image transmission via coaxial cable without loss of quality - max. distance up to 500m. Model: SD49225-HC-LA. Brief technical characteristics: • HD-CVI technology allows FULL HD image transmission via coaxial cable without loss of quality - max. distance up to 500m. • 2.0 megapixel high-speed PTZ IP Day/Night camera with IR illumination, 25x optical zoom. • 1/2.8'' inch CMOS Starvis sensor. • Effective pixels 1920(H) x 1080(V) • 6pcs. IR diodes, illumination about 100m. • Zoom: x25 Optical, x16 Digital. • Scanning system: progressive. • ROM 16MB, RAM 256MB. • Compression rate: 1080P@25fps, 720P@25/30/50fps. • Available video resolution options: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480). • Angular viewing angle: 58.5° (Wide) ~ 2.8° (Tele). • Focal length: 4.8mm~(wide) 120mm(Tele), F1.6 ~ F3.5. • Pan/Tilt: Pan: 0° ~ 360° infinite. Tilt: -15° ~ +90°, auto flip 180°. • Manual control speed: Pan: 0.1° ~200° /s. Tilt: 0.1° ~120° /s. • Preset speed: Pan: 240° /s. Tilt: 200° /s. • Automatic/manual iris control. • Focus: Auto / Manual / Semi-automatic. • D/W: Switches from color to black and white at a certain light intensity. • Min. illumination: Day: 0.005Lux@F1.6; B/W 0.0005Lux@F1.6; Night: 0Lux@F1.6. • Electronic Shutter: Auto/Manual, 1/3s ~ 1/100,000s. • White balance: Auto/ Manual/ Indoor/ Outdoor/ Tracking/ Sodium lamp/ Natural light/ Street lamp. • BLC/HLC/WDR 120dB. • Day Night function supported. • 2D/3D DNA: noise reduction technology. • Preset: 300 - SD Pelco-P/D (Label, camera settings). • Pattern: 5, rounds 8 (up to 32 presets/round), scan 5. • 3D intelligent positioning system. • Privacy zones: 24. • Other functions: Auto 'rollover', Auto Parking, Action memory upon power recovery. • Resets PTZ and Lens status after reboot. • Moisture resistant IP66. • Control interface RS-485, DH-SD, Pelco-P/D. • Alarm inputs: 2 channels. • Alarm inputs: 1 channel. • Operating temperature: -40°C ~ +70°C. • Humidity: 0%~95%. • Power supply: DC 12V / 3A. • Power consumption: 9.6W (23.2W with PTZ). • TVS 6000V lightning protection; surge protection. • Dimensions: 160mm x 295.4mm. • Comes with wall bracket PFB305W. • Weight: 3.0kg. • Compatible mounts: • PFA111. • PFA150. • PFA120. • PFA151. • PFB300C. • PFB303S.
