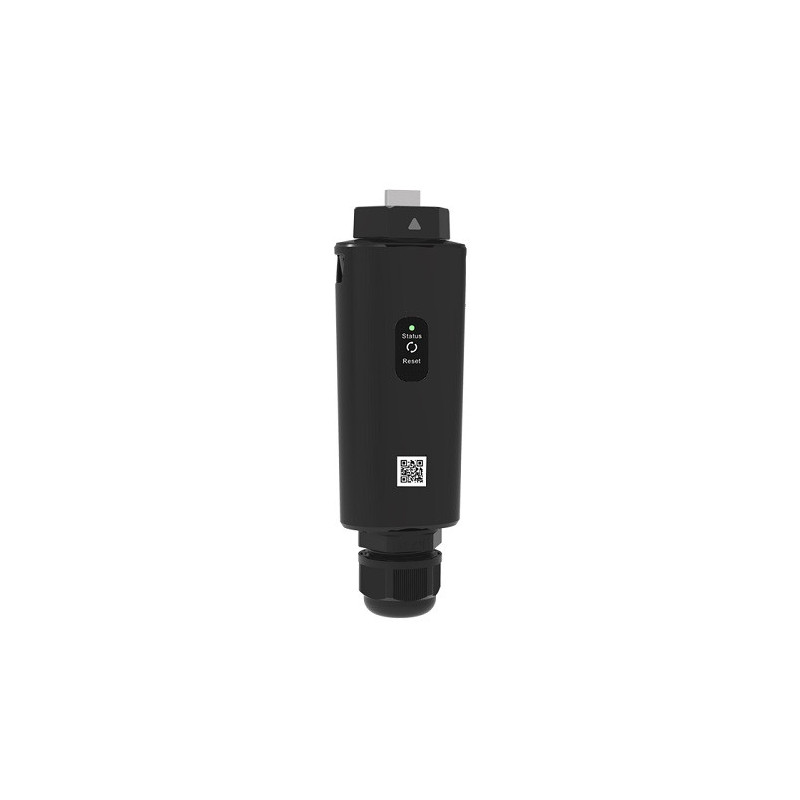

GROWATT Internet Interface Shine LAN-X

Growatt Internet interface Shine LAN-X

Features:

• The interface is designed to link Growatt inverter parameters with the Cloud server via LAN and monitor the operation of the solar power plant and the energy produced.
• The device connects to a solar inverter to remotely detect and potentially troubleshoot PV system faults.
• LAN connection is recommended for wiring in a suitable environment. The USB dongle is connected to the solar inverter and connected to the router with a network cable, then the connection between the inverter and the server will be established automatically.
• The device has integrated memory, so the data of the connected inverter is stored for 30-40 days, even if the internet connection is lost.
• Suitable for all Growatt X series inverters (On grid - with external power supply).

Technical data:

• Supported network: LAN.
• Ethernet data transfer speed: 10Mbps.
• Voltage: 5V.
• Max power consumption: 3W.
• Interface: USB Type-A.
• Supported server: ShineServer (server-cn.growatt.com).
• Data transmission interval: 5 min.
• Operating temperature: -30°C ~ +60°C.
• Safety class: IP65.
• Dimensions: 152x47x28 mm.
• Weight: 84g.
• Certificates: CE, RoHS.
