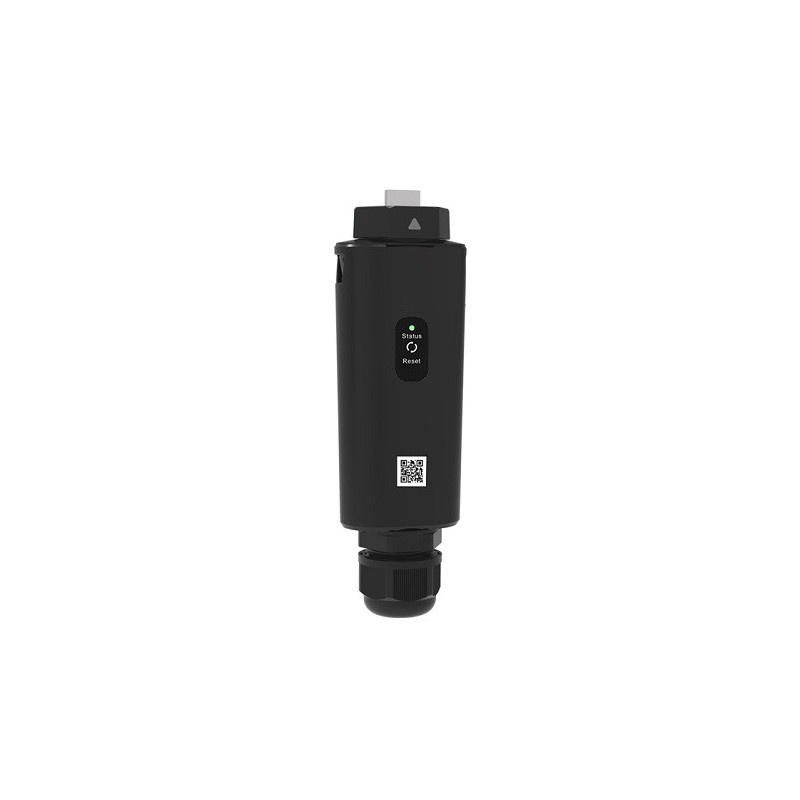

GROWATT Internet Interface Shine LAN-X

Growatt Internet interface Shine LAN-X Features: The interface is designed to link Growatt inverter parameters with the Cloud server via LAN and monitor the operation of the solar power plant and the energy produced. The device connects to a solar inverter to remotely detect and potentially troubleshoot PV system faults. LAN connection is recommended for wiring in a suitable environment. The USB dongle is connected to the solar inverter and connected to the router with a network cable, then the connection between the inverter and the server will be established automatically. The device has integrated memory, so the data of the connected inverter is stored for 30-40 days, even if the internet connection is lost. Suitable for all Growatt X series inverters (On grid - with external power supply). Technical data: Supported network: LAN. Ethernet data transfer speed: 10Mbps. Voltage: 5V. Max power consumption: 3W. Interface: USB Type-A. Supported server: ShineServer (server-cn.growatt.com). Data transmission interval: 5 min. Operating temperature: -30°C ~ +60°C. Safety class: IP65. Dimensions: 152x47x28 mm. Weight: 84g. Certificates: CE, RoHS. Warranty:12 months
