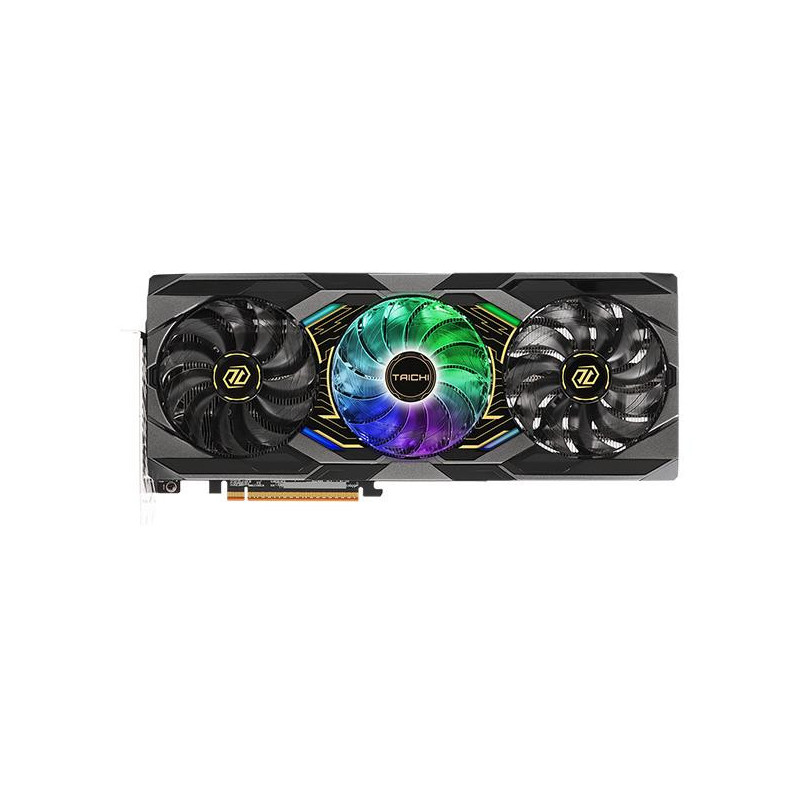

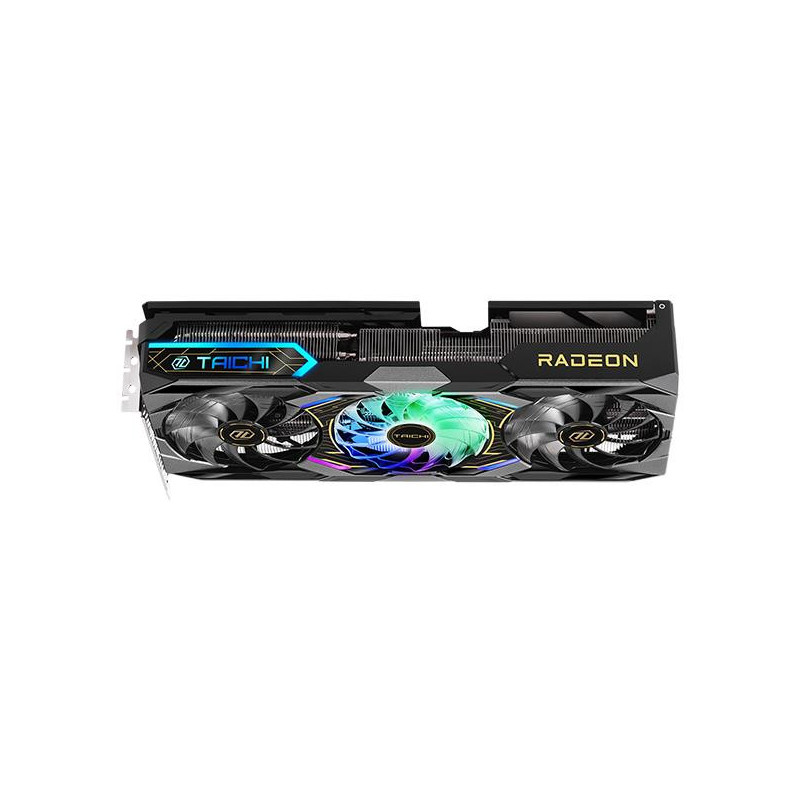

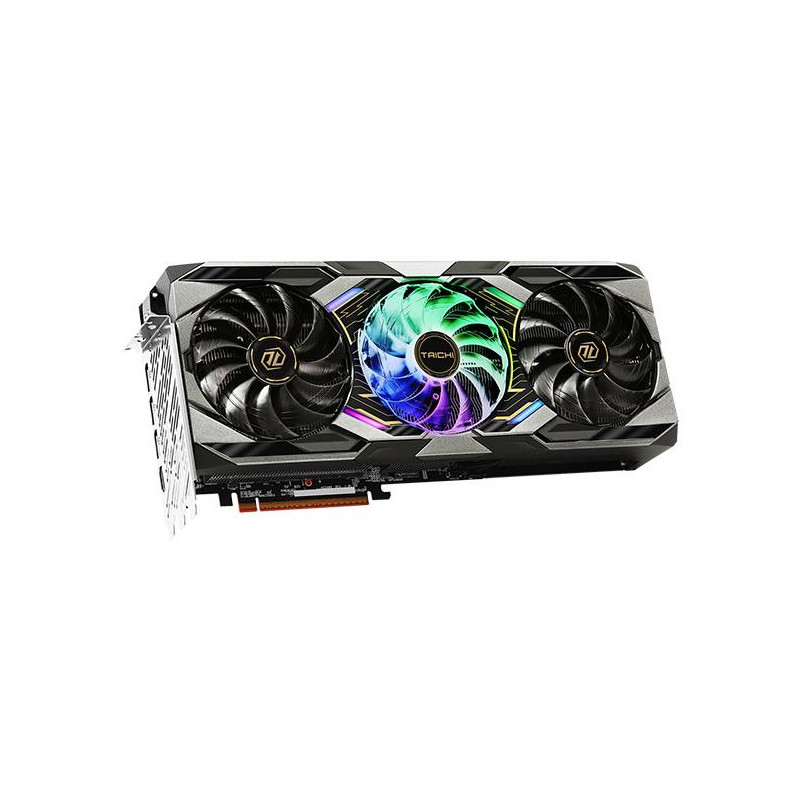

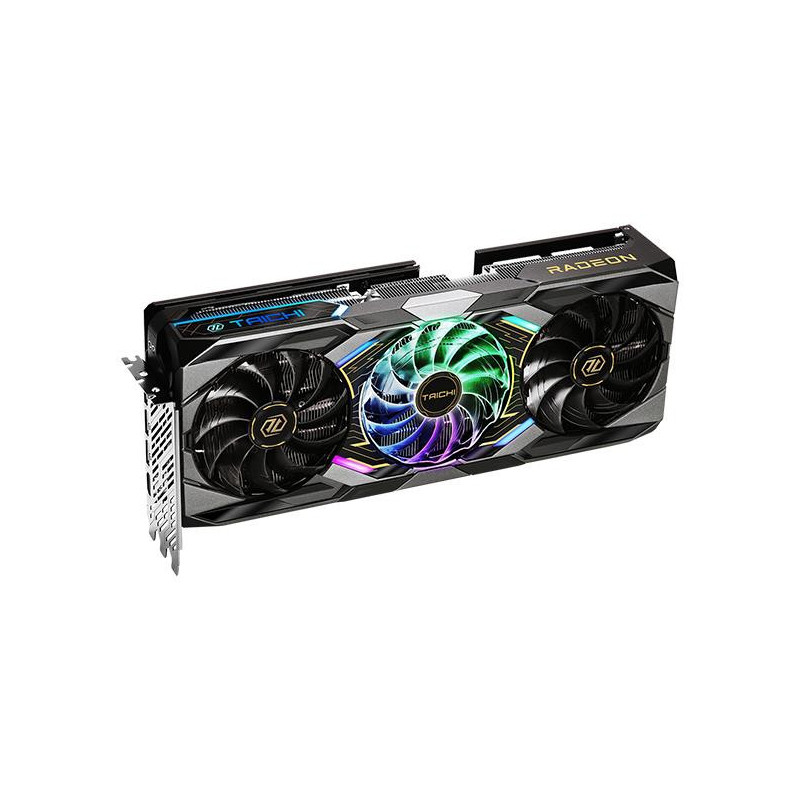

Graphics Card, ASROCK, AMD, Radeon RX 9070 XT, 16 GB, GDDR6, 256 bit, PCI Express x16 5.0, Active, RX9070XTTC16GO

Reverse Spin

The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.



Taichi 3X Cooling System

Crafted for the best balance between the thermal efficiency and silence by all the details improved.



Striped Ring Fan

Designed For Enhanced Airflow

ASRock's all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.



0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.



Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.



Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.



Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.



High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.



Honeywell PTM7950

Phase-change Thermal Pad

Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.



Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.



Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.



LED Switch

Switch on/off as you want.

You can switch LED on or off depends on the scenarios or your need.



ARGB Pin-header

More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.



16 Power Phase Design with SPS

More Power Phase Equipped to Deliver More Sufficient Power.

Featuring 16 power phases with SPS components to raise maximum current to GPU and memory to offer enhanced performance.



Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.



Dual BIOS

Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.
