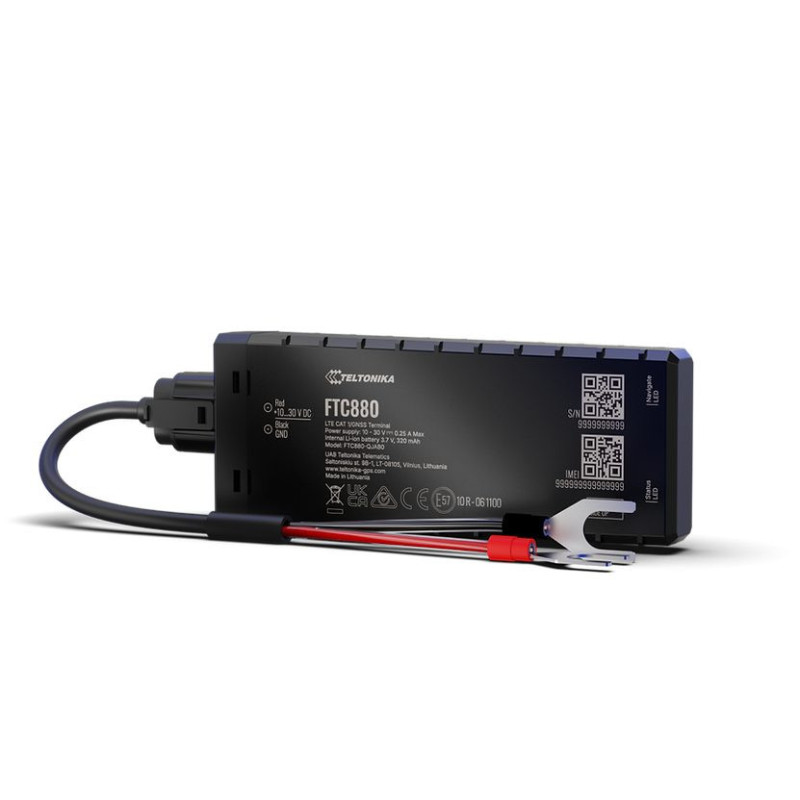

FTC880 GPS tracker, 4G, IP69, 320mAh battery TELTONIKA
Product reference: 44-4779027310626
  • New
FTC880 GPS tracker, 4G, IP69, 320mAh battery TELTONIKA

FTC880 GPS tracker, 4G, IP69, 320mAh battery TELTONIKA

Product reference: 44-4779027310626
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
62,77 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

! ATTENTION ! Registration is paid, see attachments below

New generation wide voltage range 4G LTE Cat 1 vehicle tracking device, mounted on a car battery and featuring higher GNSS accuracy and IP69K class resistance

Ways to use the tracker:

• By inserting a SIM card with a minimum Internet plan (e.g. Teledema, Tele2 telemetry ~2.5 EUR/month), when calling the device, you will receive an SMS response with a position reference on Google maps.
• By sending the appropriate SMS command to the tracker, you can receive responses with various technical parameters, e.g. position coordinates, battery level, information update frequency, etc.
• Using the online platform trackmap.lt ( registration is paid , see attachments below) you can monitor the movement of an object on a computer / phone in real time, see historical data. Monitor groups of vehicles or personnel. (You can see how it looks by logging in and entering the username and password "demo", without quotes). Brief instruction .

Product

Model name FTC880-QJAB0

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU
Receiver 135 tracking/acquisition channels
Tracking sensitivity -165 dBM
Position Accuracy < 1.8 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)

Communication technology
2G band GSM: B2/B3/B5/B8
4G LTE band
FTC880-QJAB0:
LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28

Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit power

Class 5 for GSM850/900: 30±5dBM
Class 3 for GSM1800/1900: 29±5dBM
Class 3 for LTE-FDD: 26±5dBM
Data support SMS (TEXT, PDU), Network protocols (TCP)

Data codec
Codec support Codec 8 Extended

Power
Input voltage range 10-30 V
Internal Back-up battery 320 mAh Li-Ion battery 3.7V (1.18 Wh)
Internal fuse 3 A

Physical characteristics

Dimensions 118 x 48 x 18.5 mm (L x W x H)
Weight 118 g
Operating environment
Operating temperature (without battery) -30 °C to +85 °C
Storage temperature (without battery) -30 °C to +85 °C
Operating temperature (with battery) 0 °C to +45 °C
Storage temperature (with battery) -20 °C to +45 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP69K

Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature
-10 °C to +50 °C for 1 month
-10 °C to +35 °C for 3 months
0 °C to +30 °C for 1 year

Interfaces
Connection U-Type cable
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 USB Type-C
LED indication 2 status LED lights
SIM Nano-SIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Crash Detection, Over Speeding, Trip, Odometer, Eco Driving, Excessive idling, Network Jamming Detection, Unplug Detection, Auto Geofence, Towing Detection, Static Navigation, Custom Scenarios

Sleep modes Deep Sleep, Online Deep Sleep, Power Off Sleep

Configuration and firmware update FOTA WEB, Teltonika Configuration Tool (TCT)

SMS Configuration, Debug
GPRS commands Configuration, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Accelerometer, External Power Voltage

User Manual - https://wiki.teltonika-gps.com/view/FTC880 (you can change the language change in the upper right corner).


User manual
Link to product description on manufacturer's website
