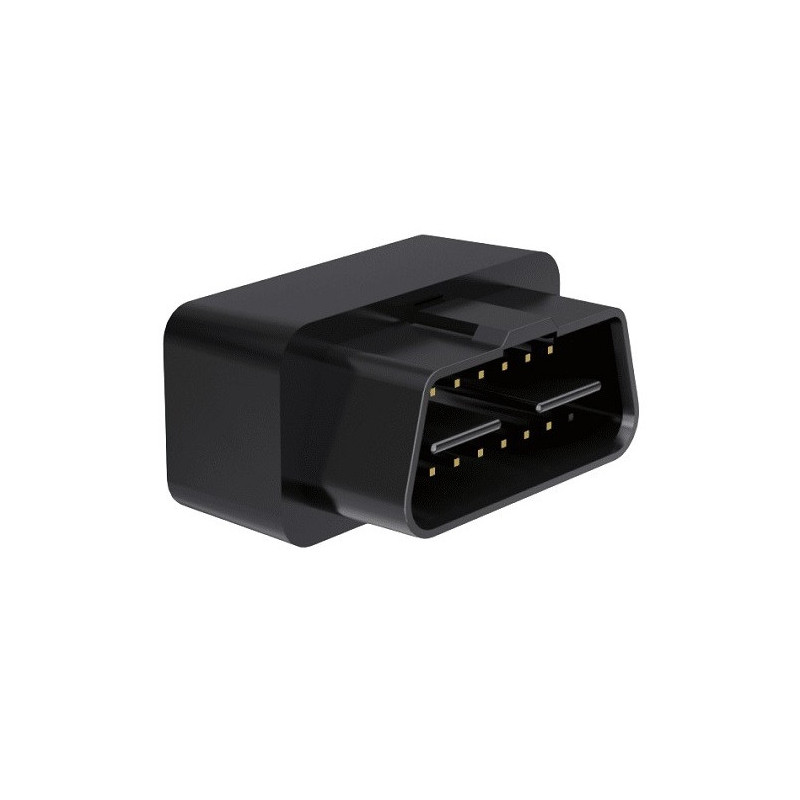

Car GPS tracking device to OBD connector

Compact and reliable car GPS tracking device for OBD II connection. Simple and easy to connect, does not require any additional installations.
Features:
VL505E is a compact and easy-to-install GPS tracking device for corporate cars, private cars or usage-based insurance solutions. The tracker uses multiple location technologies (GPS, BeiDou, AGPS- accelerated GPS, LBS), which allows you to accurately determine the location of the car and monitor its movement in real time.
Driving Behavior Analysis (DBA) allows you to detect and record unsafe driving events, such as sudden acceleration, sudden braking, sharp turns and collisions, thus helping to assess driving style and increase vehicle operation safety.
The integrated microphone allows you to remotely listen to and record sounds around the device.
The device does not require additional installation work, making it a reliable and versatile solution for both private use and professional transport monitoring.
The tracker requires a SIM card with internet data. The SIM card is purchased separately.
Features:
Precise location determination based on GPS+BDS+AGPS+LBS.
Disconnection alarm.
Speeding alarm.
Vibration alarm.
Virtual fence (Geo-fence, Geo fence).
Integrated microphone.
Driving behavior analysis (sudden acceleration, sudden braking, sharp turns, collision).
SIM card not included.
Technical data:
Mobile network: LTE Cat1.
Network frequency: LTE FDD: B1/B3/B7/B8/B20/B28; LTE TDD: B34/B38/B39/B40/B41.
Positioning accuracy: <2.5m CEP.
Microphone operating range: up to 5 m.
Tracking sensitivity: -163dBm.
Minimum signal level required for a set point during a cold start: -158dBm.
Time to first fix (TTFF):
Coordinate acquisition time when the time and the last location coordinate are known (hot start) <1 sec.
Coordinate acquisition time when the initial coordinate and time are not known (cold start) <28 sec.
Integrated GNSS antenna.
Battery: 50mAh/3.7V.
Operating voltage: 9-36VDC.
Consumption in standby mode: 2 mA.
Consumption in working mode: 35 mA (sending data every 10s).
Memory: up to 400 GPS records.
Connector: standard OBD II computer diagnostic car connector (found in almost all cars).
Supported SIM card: nano SIM.
LED indicators: power (red), GNSS (blue) and mobile (green).
Sensor: accelerometer.
Operating temperature: -20C~ +70C.
Humidity: 5~95%RH (non-condensing).
Size: 45 x 30 x 22.5 mm.
Weight: 26 g.
Coordinated and tested operation with the Tracksolidpro.com operating platform on Windows, Android, iOS systems. Free use for one year. There is an option to purchase further use of the platform.
The app allows you to configure the device and monitor all collected information - location, time, status, etc.
Importer: Eurodigital.
Warranty: 24 months.
