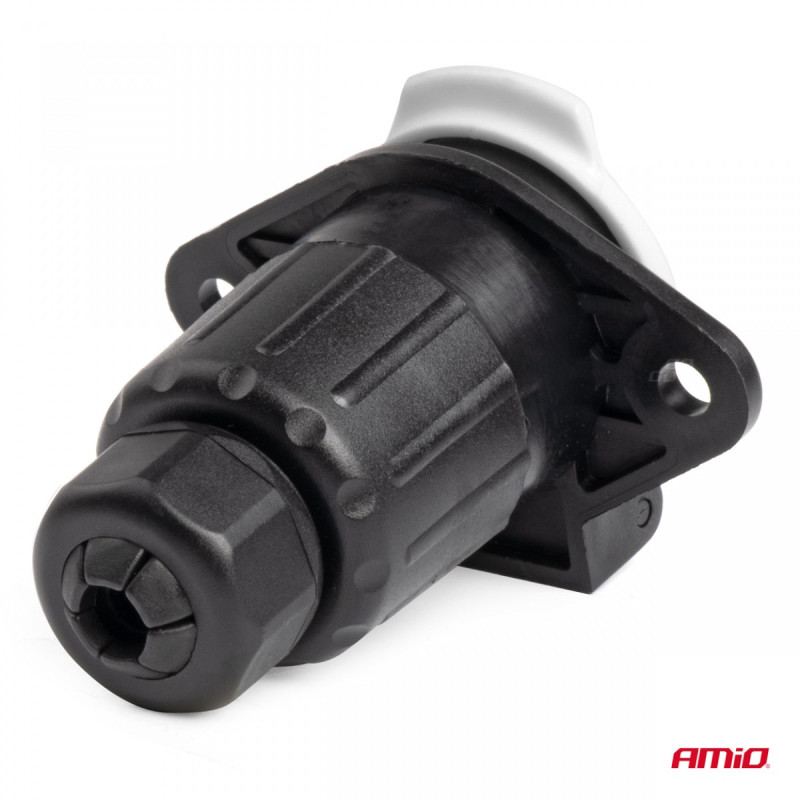

Gniazdo przyczepy 7 PIN typ S 24V TIR AMIO-03223

Plastic trailer socket 7-pin type S 24V

Universal 7-pin type S socket designed for connecting and powering 24V electrical systems in semi-trailers, heavy-duty trailers and other heavy vehicles.

It ensures a permanent connection between the trailer's electrical system and the towing vehicle, guaranteeing uninterrupted operation of available functions (e.g. lighting).

The 7-pin 24V connector is currently the most common system used to make electrical connections between trailers and tractors in standard applications.

Key features:

• Universal, fits any type of trailer/semi-trailer
• The design allows for easy assembly and disassembly
• Closed with a flap to protect against accidental opening and flooding when the cable is not connected
• Durable, damage-resistant and weather-resistant metal housing
• Metal contacts guarantee proper electrical connection in all conditions
• Rubber cover protecting the interior from dirt (applied to the back of the housing)
• Inserting the cable from the back of the socket through the hole in the cover
• It has two mounting holes

Specification:

• Type: 7-pin trailer socket type S
• Voltage: 24V
• Connector: 7-pin S-type socket, male connector without pin (white)
• Housing: plastic
• Connection: screwed
• Mounting holes: 2
• Max cable diameter (rubber cover): 10.3 mm
• Color: black
• Total length: 85 mm
• Connector diameter: 45 mm
• Mounting hole spacing: 75 mm
