Gniazdo przyczepy 7 PIN Typ N 24V TIR AMIO-03221

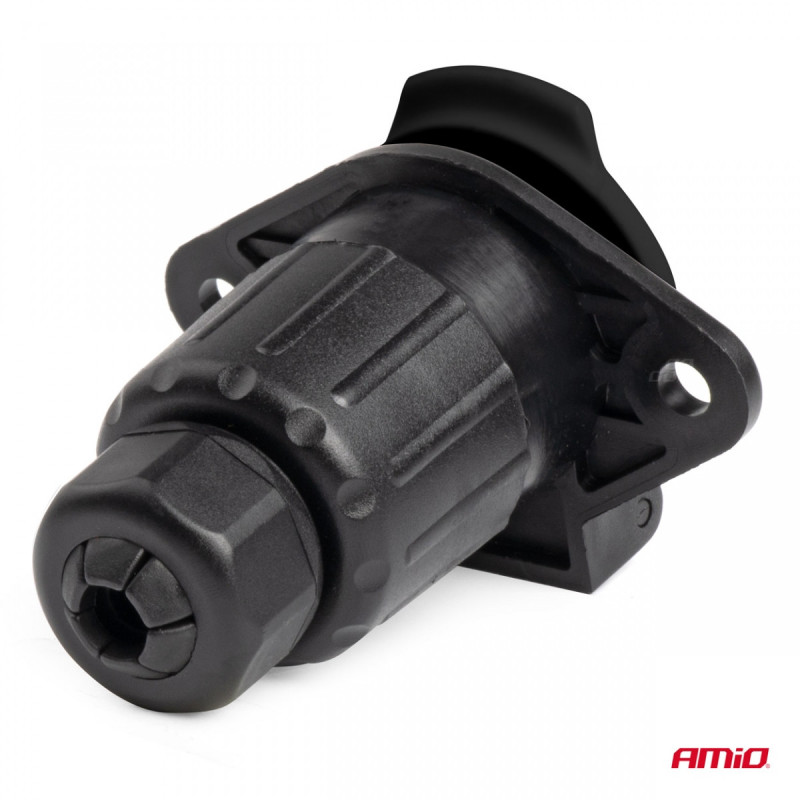

Plastic trailer socket 7-pin type N 24V

Universal 7-pin N-type socket designed for connecting and powering 24V electrical systems in semi-trailers, heavy-duty trailers and other heavy vehicles.

It ensures a permanent connection between the trailer's electrical system and the towing vehicle, guaranteeing uninterrupted operation of available functions (e.g. lighting).

The 7-pin 24V connector is currently the most common system used to make electrical connections between trailers and tractors in standard applications.

Key features:

• Universal, fits any type of trailer/semi-trailer
• The design allows for easy assembly and disassembly
• Closed with a flap to protect against accidental opening and flooding when the cable is not connected
• Durable, damage-resistant and weather-resistant hard plastic housing
• Metal contacts guarantee proper electrical connection in all conditions
• Inserting the cable from the back of the socket through the hole in the cover
• It has two mounting holes

Specification:

• Type: 7-pin trailer socket type N
• Voltage: 24V
• Connector: 7-pin N-type socket, male connector with pin (black)
• Housing: solid plastic
• Connection: screwed
• Mounting holes: 2
• Max cable diameter (rubber cover): 10.3 mm
• Color: black housing / black flap
• Total length: 85 mm
• Connector diameter: 45 mm
• Mounting hole spacing: 75 mm
• Weight: 140 g
