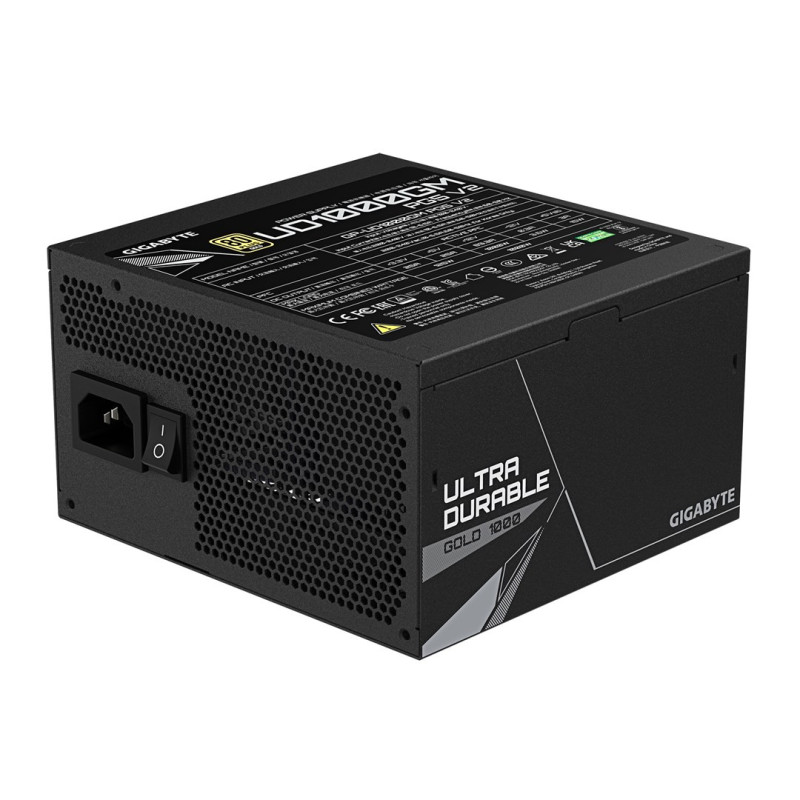

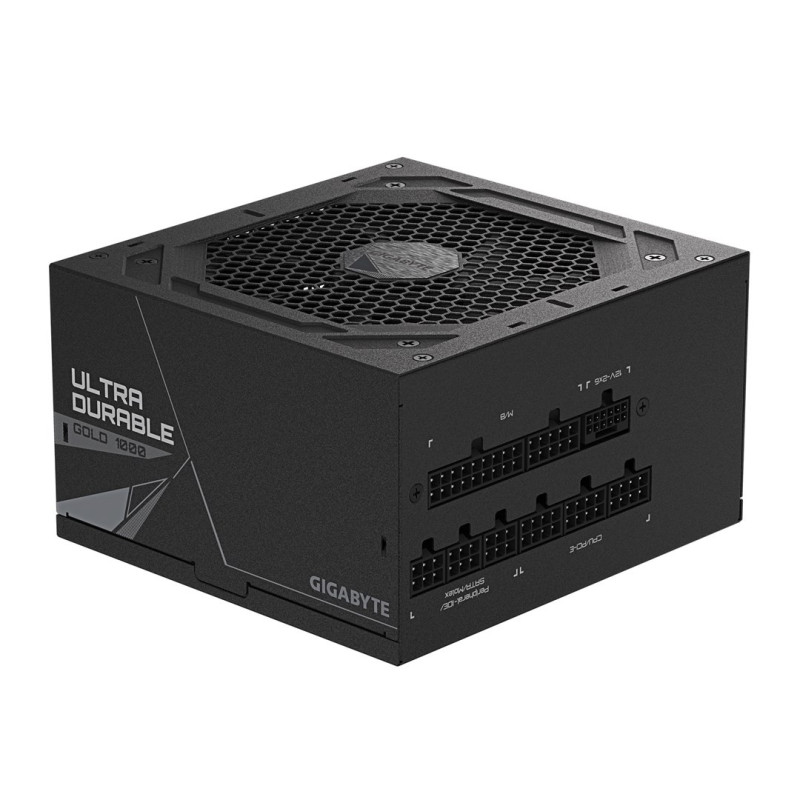

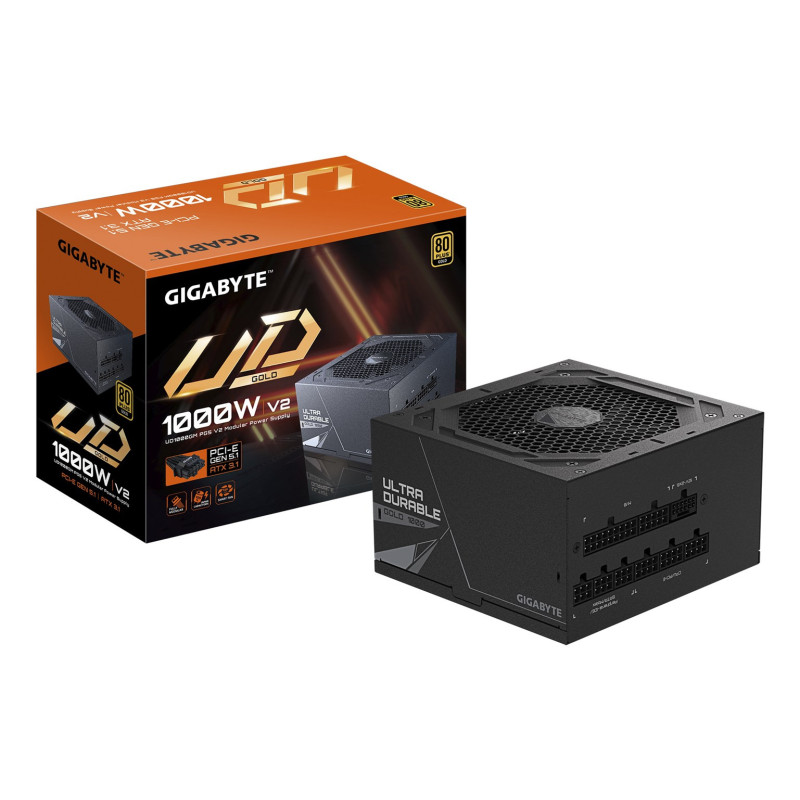

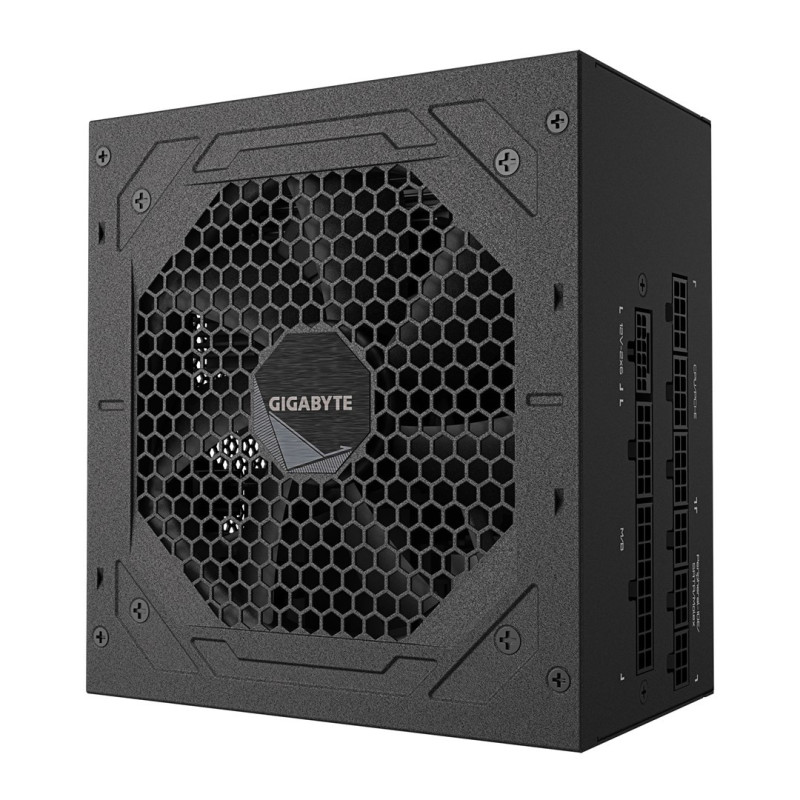

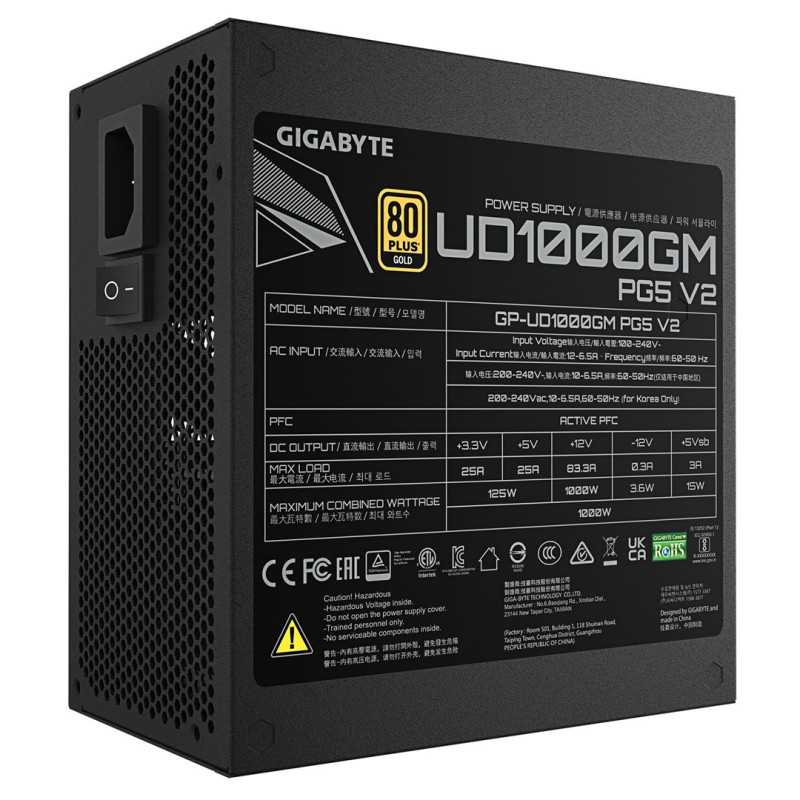

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compati
Product reference:
6-GP-UD1000GM PG5 V.2
GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compati
Product reference:
6-GP-UD1000GM PG5 V.2
GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
6 - 11
business days
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |

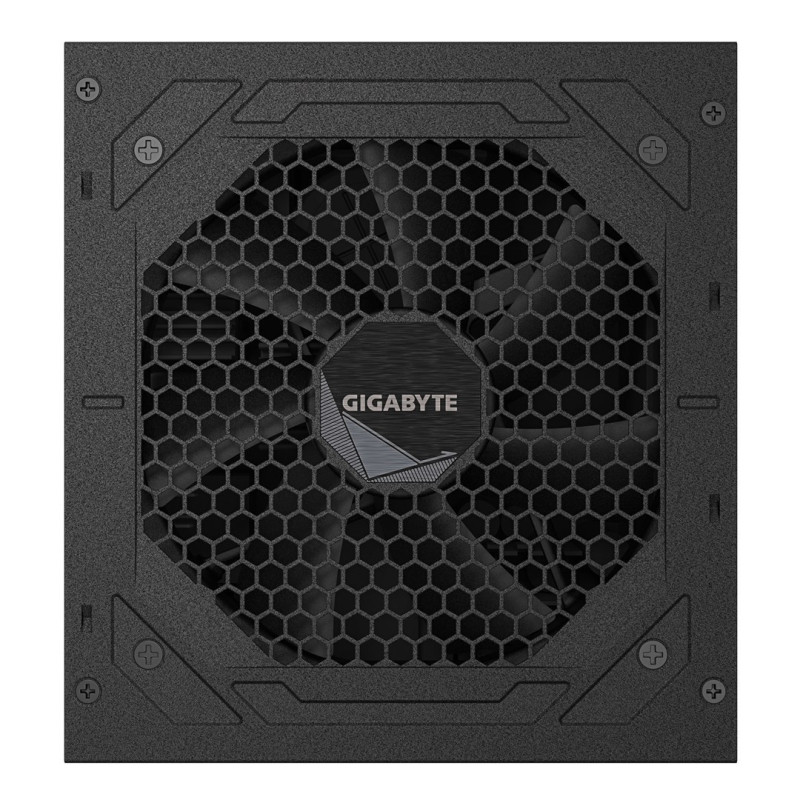

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Combined power (+5Vsb) | 15 W |
| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 125 W |
| Power Factor Correction (PFC) type | Active |
| Hold time | 16 ms |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (+12V) | 83.3 A |
| Efficiency | 90% |
| Max output current (-12V) | 0.3 A |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 125 W |
| Max output current (+3.3V) | 25 A |
| Input current | 15 - 6.5 A |
| AC input frequency | 50/60 Hz |
| Power protection features | Overheating Under voltage Over current Short circuit Over voltage Over power |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Power factor | 0.9 |
| Height | 86 mm |
| Weight | 2.48 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HYB |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Number of EPS connectors | 2 |
| Peripheral (Molex) power cable length | 120 500 mm 150 |
| PCI Express connector | Yes |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150 600 mm |
| CPU power cable length | 60 cm |

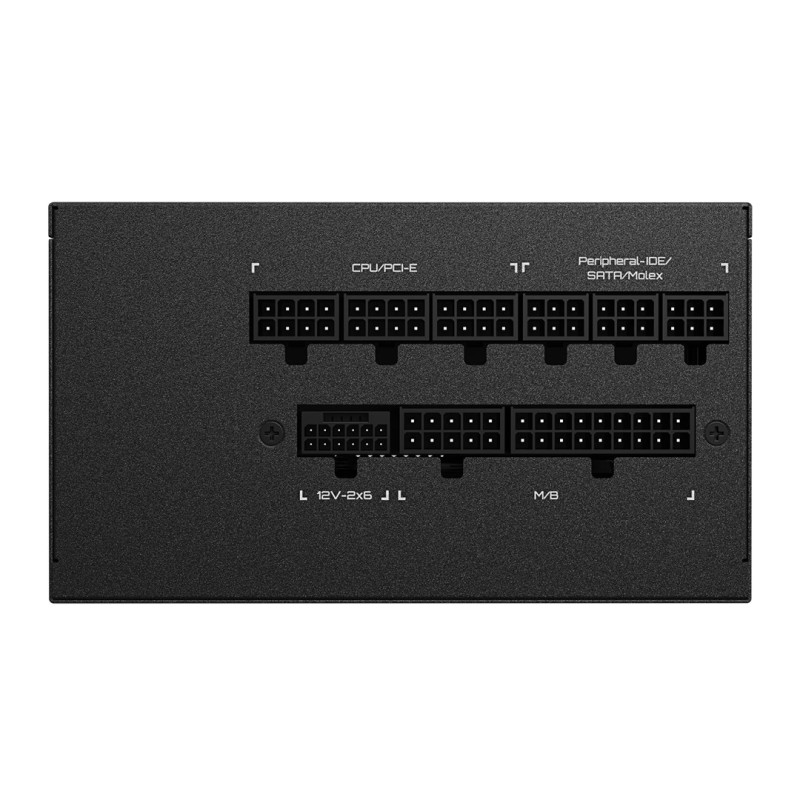

| Cabling type | Fully-Modular |
| Floppy drive power connector | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 61 cm |
| PCI Express power cable length | 70 cm |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Warranty period | 10 year(s) |
