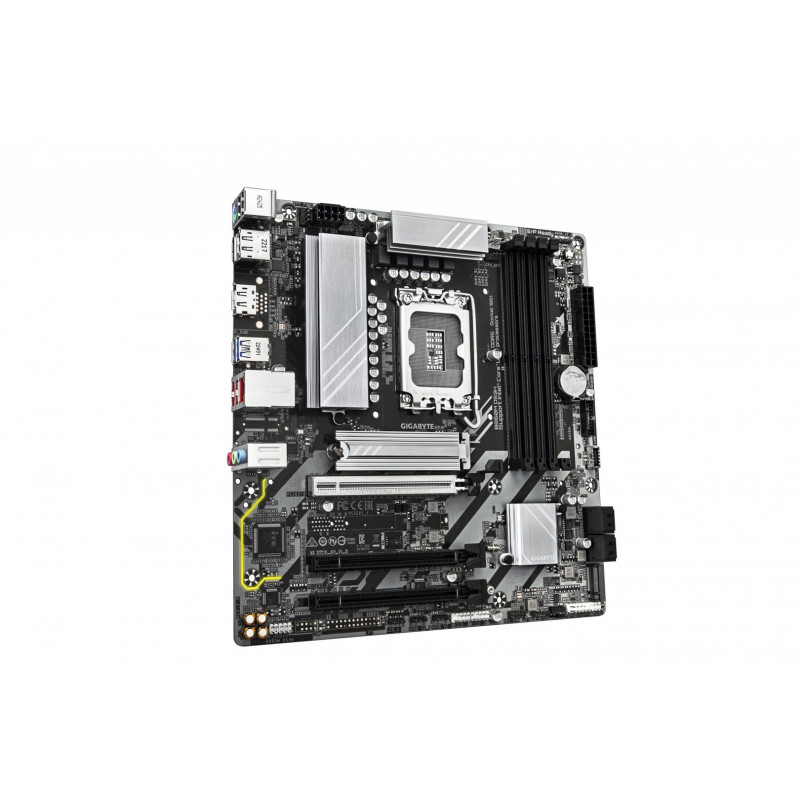

GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xP
Product reference:
6-B860M DS3H
GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xP
Product reference:
6-B860M DS3H
GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Warranty period | 3 year(s) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2), Intel® Core™ Ultra (Series 1) |
| Processor manufacturer | Intel |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Motherboard chipset | Intel B860 |
| PC health monitoring | Fan, Voltage, Temperature, Water cooling |
| Product colour | Dark brown |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Cooling type | Passive |
| Audio chip | Realtek ALC897 |
| Motherboard form factor | micro ATX |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 9066, 6400, 5600 |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Supported memory clock speed (max) | 9066 MHz |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Width | 244 mm |
| Height | 35 mm |
| Depth | 244 mm |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Batteries included | Yes |
| RAID levels | 1, 10, 5 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPort version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| Line-in | Yes |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Number of M.2 (M) slots | 2 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 5 |
| Lithium weight per battery | 0.07 g |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Battery type | CR2032 |
| Weight | 1 kg |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Warnings | Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician. |
