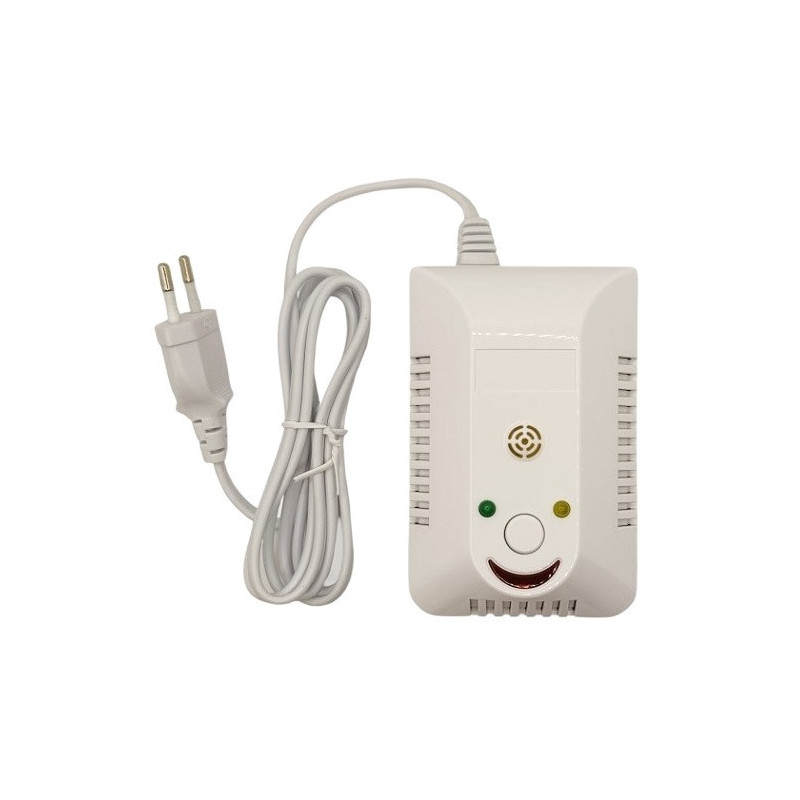

Gas detector, 230V

Gas leak sensor, 230V Features: The gas leak detector instantly detects harmful substances released into the environment and sends a warning. It can be used autonomously or connected to a wider security system. The gas leak detector instantly detects harmful substances released into the environment. When the gas concentration reaches 10% LEL (Lower Explosive Limit), an audible and LED alarm is activated. If the detector is connected to a system, a network signal is transmitted. If the detector is connected to a valve, the gas valve is closed to cut off the gas supply. A highly sensitive gas sensor is a reliable protection in the event of a combustion, explosion or poisoning gas leak. The gas detector is mounted on the wall, ~3m away from the gas source, to avoid false signals when using gas normally. For low-density gas detection, the detector is mounted ~0.3m-1m away from the ceiling. In the case of liquid gases, when the gas density is higher than air, the detector is mounted ~0.3m-1m above the floor. Notes: The gas detector must be tested at least once every 6 months. The gas detector requires maintenance: dust, grease, and other dirt that enters through the device's grille can contaminate the sensor head, causing it to malfunction. Technical data: Power supply: AC 220-250V, 2.5A. Power: 3W. Alarm condition: 10% LEL (Lower Explosive Limit). Signal strength: 85dBm. Alarm indicator: red flashing LED light and audible signal. Error indicator: yellow LED light and audible signal. Working status: green LED light. Test button: yes. Detectable gases: natural gas (methane, butane), LPG, biogas. Operating temperature: -10°C~+50°C. Relative humidity: <95% RH (non-condensing). Output: NO, COM, NC, Signal1, Signal2. Dimensions: 110mm x 72mm x 42.5mm. Weight: 154g. Installation: wall-mounted (set of mounting screws included). Warranty:24 months
