Extralink PoE Injector 24 Port 24x 100Mb/s RJ45, Rackmount, Fast Ethernet, 10,100 Mbit/s, 10/100, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Black, 1U
Extralink PoE Injector 24 Port 24x 100Mb/s RJ45, Rackmount, Fast Ethernet, 10,100 Mbit/s, 10/100, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Black, 1U





Extralink PoE Injector 24 Port 24x 100Mb/s RJ45, Rackmount, Fast Ethernet, 10,100 Mbit/s, 10/100, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Black, 1U
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Extralink PoE Injector 24 Port 24x 100Mb/s RJ45, Rackmount. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100. Product colour: Black, Rack capacity: 1U, LED indicators: Power. Power over Ethernet (PoE) voltage: 48 V, Input voltage: 24 - 57 V. Compliance certificates: CE. Size (imperial): 48.3 cm (19"), Width: 482.6 mm, Depth: 25 mm
PoE injector power strip, 24 ports - reliable power system

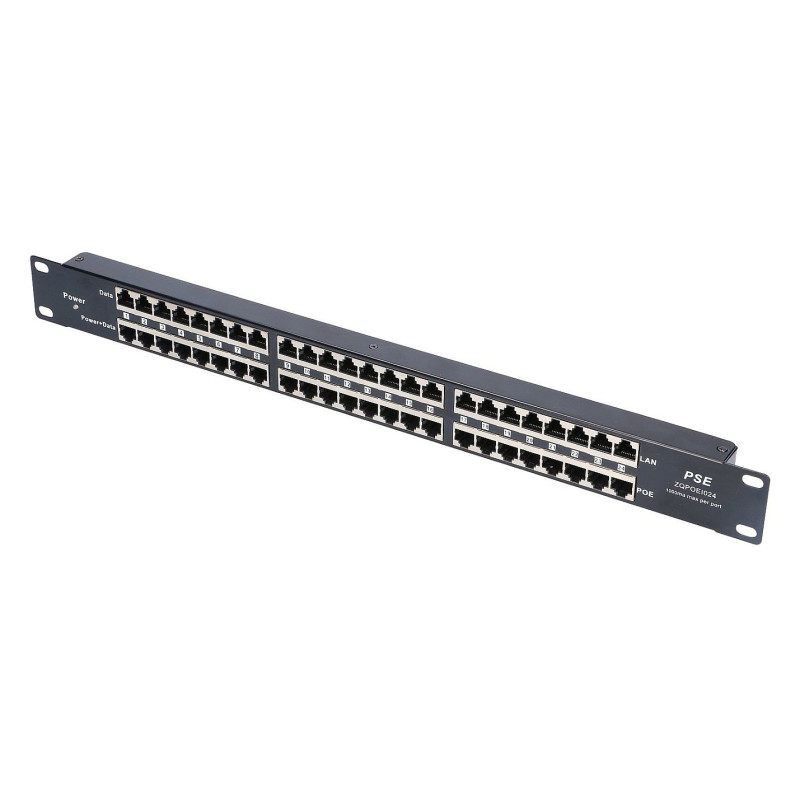

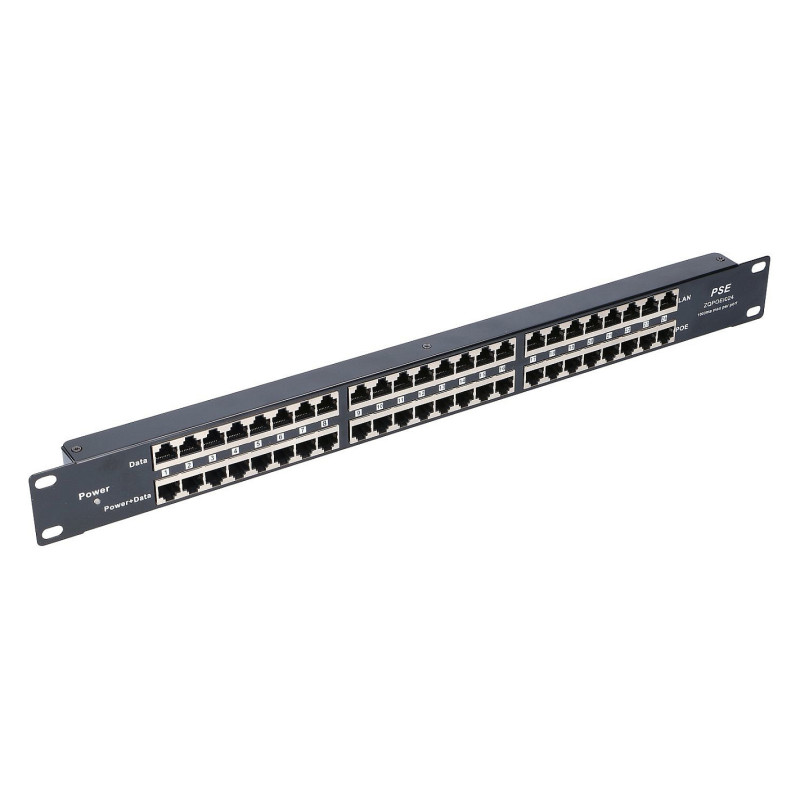

Extralink's power supply bar has 24 ports with a throughput of 10/100 Mbit/s. The upper RJ45 sockets are LAN/switch/PC ports, where pins 1/2 and 3/6 are used to transfer data. The sockets below are both data and power ports, where pins 1/2 and 3/6 are used to transfer data and pins 4/5 (+) and 7/8 (-) to transfer power. The size of the power strip: 1U (height), 19" (width) and 25 mm (thickness).
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Product colour: Black
Feature: Rack mounting
Rack capacity: 1U
LED indicators: Power
Ethernet LAN (RJ-45) ports: 48
RJ-45 input ports: 24
RJ-45 output ports: 24
Feature: DC-in jack
Power over Ethernet (PoE) voltage: 48 V
Input voltage: 24 - 57 V
Compliance certificates: CE
Feature: Sustainability compliance
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Size (imperial): 48.3 cm (19")
Width: 482.6 mm
Depth: 25 mm
Height: 44.3 mm
Weight: 670 g
Number of products included: 1 pc(s)
Package width: 450 mm
Package depth: 170 mm
Package height: 520 mm
Package weight: 26 kg
Customs product code (TARIC): 85369010
Country of origin: China
