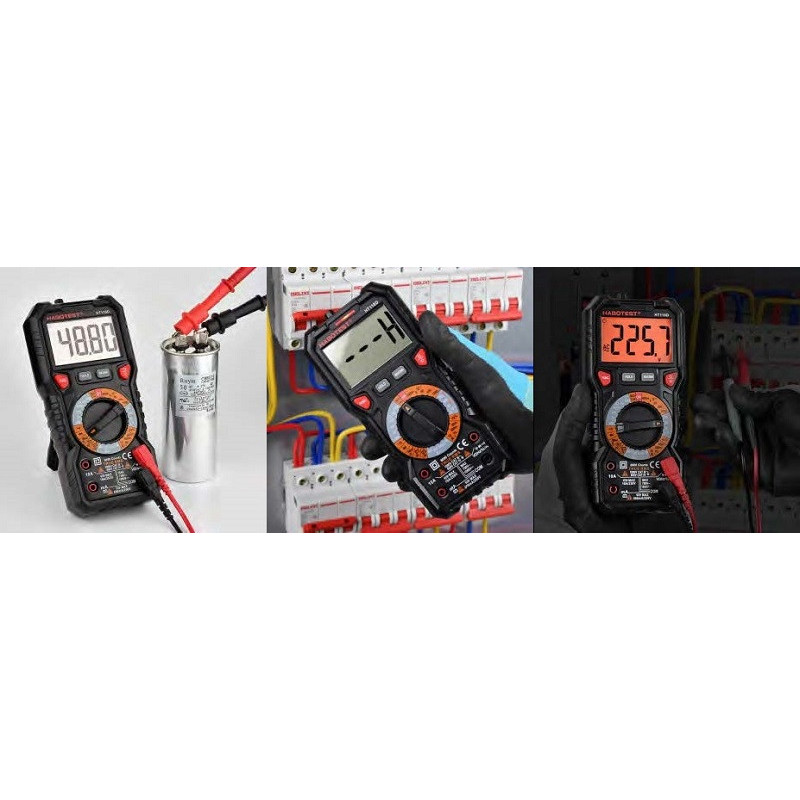

Multimeter DC1000V/10A, AC750V/10A

Multimeter DC1000V/10A, AC750V/10A
Features:

• The multimeter allows you to measure: direct current, alternating current, direct voltage, alternating voltage, resistance, capacitor capacitance up to 100mF, frequency up to 10MHz, and performs diode and circuit continuity tests.


• Has a non-contact voltage measurement (NCV) sensor (90V-1000V, 50/60Hz).


• With screen backlight, temperature measurement function, low battery warning.


• The stand on the back of the case allows you to position the device for better visibility of the readings.


• It has special holders for securing cables and a bracket for hanging the multimeter on the wall.


• Automatic shut-off saves battery.


• 6000-digit scale display.


• Compact, ergonomically shaped, comfortable to hold in your hand, the body is resistant to mechanical damage.


• Comes with test leads. Batteries not included.

Technical data:

• DC voltage measurement: 600mV / 6V / 60V / 600V / 1000V; measurement accuracy +/-(0.5%+3).


• DC current measurement: 60uA / 60mA / 600mA; accuracy +/-(0.8%+3) / 10A; accuracy +/-(1.2%+3).


• AC voltage measurement: 6V / 60V / 600V / 750V; measurement accuracy +/-(1.0%+5).


• AC current measurement: 60mA / 600mA; accuracy +/-(1.0%+3) / 10A; accuracy +/-(1.5%+3).


• Resistance measurement 600Om / 6kOm / 60kOm / 600kOm / 6MOm / 60MOm; accuracy +/-(0.8%+3).


• Capacitance measurement: 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF; accuracy +/-(4.0%+3) / 100mF; accuracy +/-(5.0%+5).


• Frequency measurement: 10 Hz / 100 Hz / 1 kHz / 10 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz; accuracy +/-(1.0 %+3).


• Working load: 1%-99%; accuracy +/-(1.0%+2).


• Temperature measurement range: -20°C ~ +1000°C; accuracy +/-(1.0%+3).


• Readings: 6000 numbers.


• Auto/manual measurement setting: yes.


• Circuit continuity check: yes (with sound and light signals).


• Diode test: yes.


• Data retention on screen: yes.


• NCV sensor: yes.


• Backlight: yes.


• Flashlight: yes


• Low battery indicator: yes.


• Automatic shut-off: yes.


• True RMS: yes.


• MAX/MIN: yes.


• Battery testing: 1.5V / 9V.


• Power supply: 2x 1.5 V AA batteries (not included).


• Weight: 325 g.


• Size: 190x88x53mm.


• Safety class: EN61010-1, EN61010-2-030, EN61010-2-033, EN61326-1 CATIII 1000V, CATIV 600V.
