Laser inclinometer

Laser inclinometer, digital display, rechargeable lithium-ion battery, USB-C interface
Features:

• A laser inclinometer is designed to indirectly measure the angle of inclination.


• The inclinometer has become an indispensable and important measurement tool in the fields of bridges, railway pavement, civil engineering, construction, decoration, industrial automation, smart platform, mechanical processing and other fields.


• Bidirectional laser scanning.


• The bright laser dot of the Class 2 meter will be easily visible in both daylight and darkness, making it extremely easy to measure the necessary data.


• A strong magnet is built into the five sides of the device.


• Clear illuminated display with battery level indicator.


• Rechargeable lithium-ion battery, convenient charging via USB Type-C interface. Charging cable included.


• Compact small shape, easy to carry, durable body.


• Note: Laser beam - avoid direct eye contact.

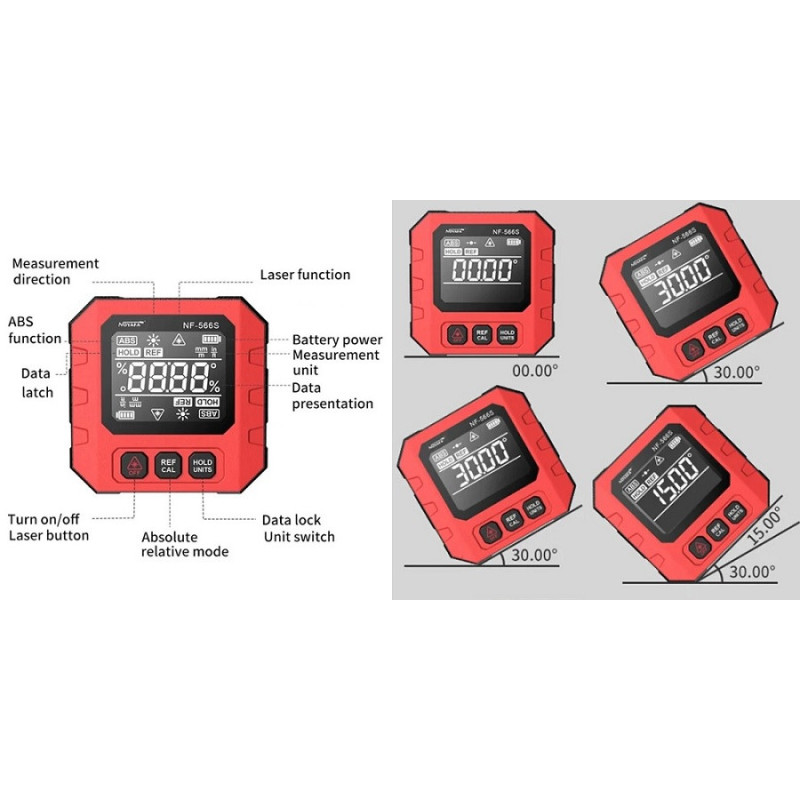

Features:

• Zero point measurement according to the horizontal plane.


• Angle lock function.


• Relative/absolute angle measurement.


• Battery level indicator.


• With data storage function.

Technical data:

• Measuring range: 4x 90°.


• Measurement accuracy +/- 2°.


• Measurement resolution: 0.02.


• Sensor type: 6-axis sensor.


• Laser class: II, beam length 630-670nm.


• Laser color: red.


• Power supply: rechargeable lithium-ion battery 3.7V 390mAh.


• Operating temperature: 0°C ~ +50°C.


• Automatic device shutdown: 30min.


• Material: ABS, magnet.


• Size: 60x60x30mm.


• Weight: 118g.

The set includes:: meter, built-in battery, charging cable USB Type-A to USB Type-C, user manual.
