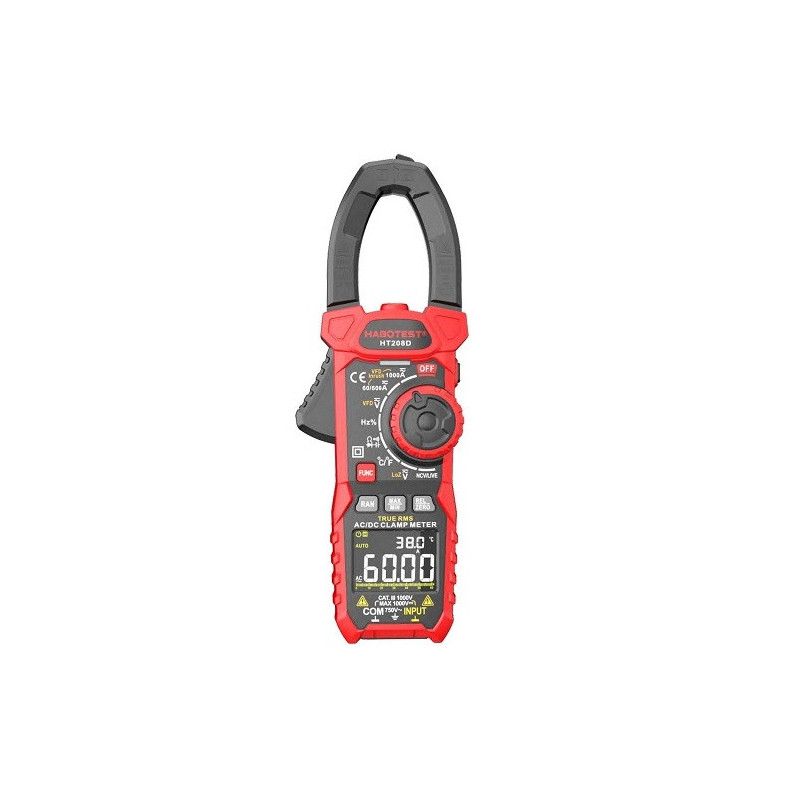

Current clamp DC1000V / 1000A, AC750V / 1000A

Current measuring clamp DC1000V/1000A, AC750V/1000A
Features:

• This multimeter allows you to measure: direct current, alternating current, direct voltage, alternating voltage, resistance, capacitor capacitance up to 100mF, frequency up to 10MHz, and performs diode and circuit continuity tests.

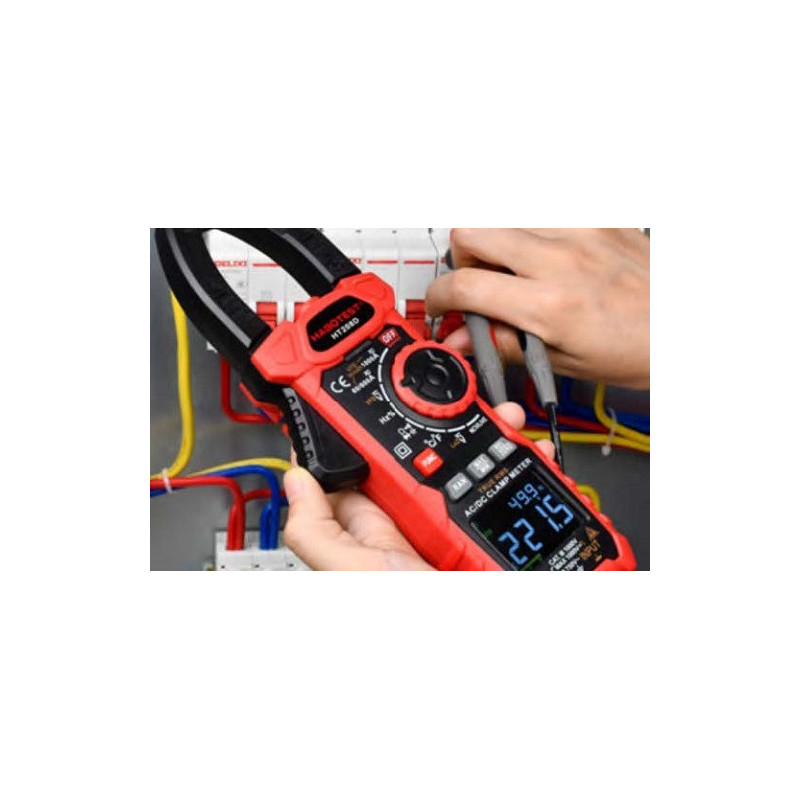

• The clamps are designed for non-contact current measurement.


• With screen backlight, temperature measurement function, low battery warning.


• It has special holders for securing cables and a bracket for hanging the multimeter on the wall.


• Automatic shut-off saves battery.


• 6000-digit scale display.


• Compact, ergonomically shaped, comfortable to hold in your hand, the body is resistant to mechanical damage.


• Comes with test leads and a convenient case. Batteries not included.

Technical data:

• DC voltage measurement: 600 mV / 6V / 60V / 600V / 1000V; measurement accuracy +/-(0.5%+3).


• DC current measurement: 60A / 600A / 1000A; accuracy +/-(2.5%+5).


• AC voltage measurement: 600 mV / 6V / 60V / 600V / 750V; measurement accuracy +/-(0.8%+3).


• AC current measurement: 60A / 600A / 1000A; accuracy +/-(2.5%+5).


• Resistance measurement: 600Om / 6kOm / 60kOm / 600kOm / 6MOm / 60MOm; accuracy +/-(0.8%+3).


• Capacitance measurement: 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF / 100mF; accuracy +/-(4.0%+5).


• Frequency measurement: 10 Hz / 100 Hz / 1 kHz / 10 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz; accuracy +/-(1.0 %+3).


• Working load: 1%-99%; accuracy +/-(1.0%+2).


• Temperature measurement range: -20°C ~ +1000°C; accuracy +/-(1.0%+2).


• Readings: 6000 numbers.


• Auto/manual measurement setting: yes.


• Circuit continuity check: yes.


• Diode test: yes.


• Data retention on screen: yes.


• NCV: yes.


• Backlight: yes.


• Flashlight: yes


• DCA ZERO: yes.


• Low battery indicator: yes.


• Automatic shut-off: yes.


• True RMS: yes.


• VFD: yes.


• INRUSH: yes.


• MAX/MIN: yes.


• REL: yes.


• LowZ: Yes.


• Power supply: 3x 1.5 V AAA batteries (not included).


• Weight: 380 g.


• Size: 240x85x47 mm.


• Terminal size: 35x35x60 mm.


• Safety class: EN61010-1, EN61010-2-030, EN61010-2-033, EN61326-1 CATIII 1000V, CATIV 600V.
