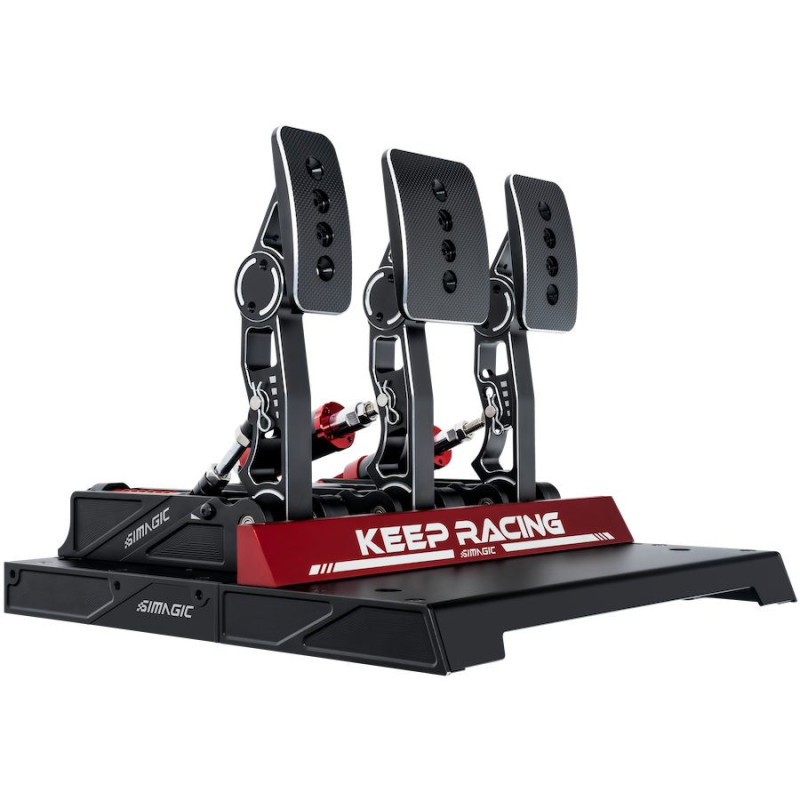

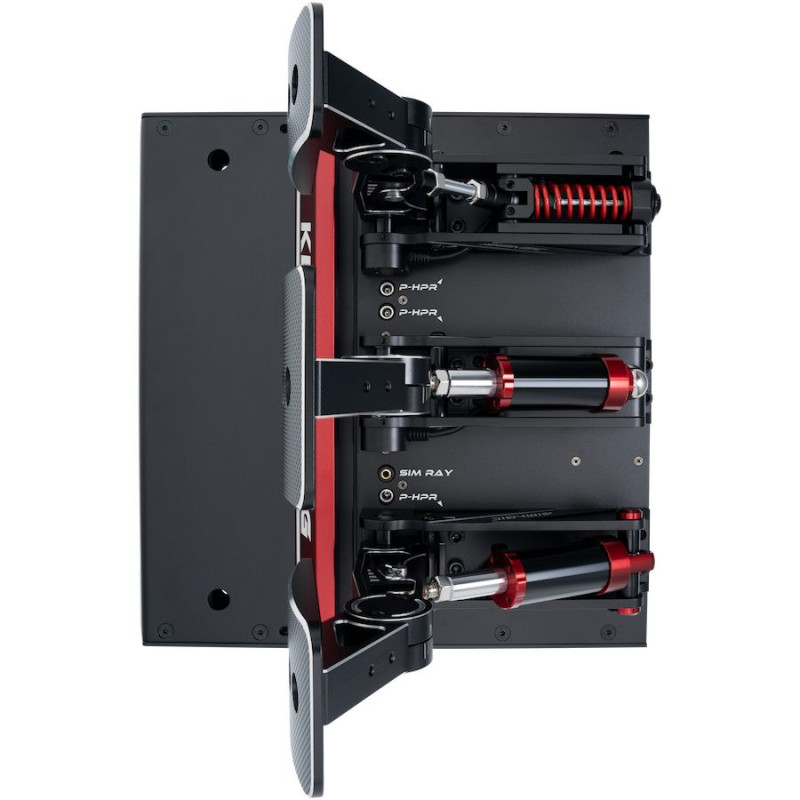

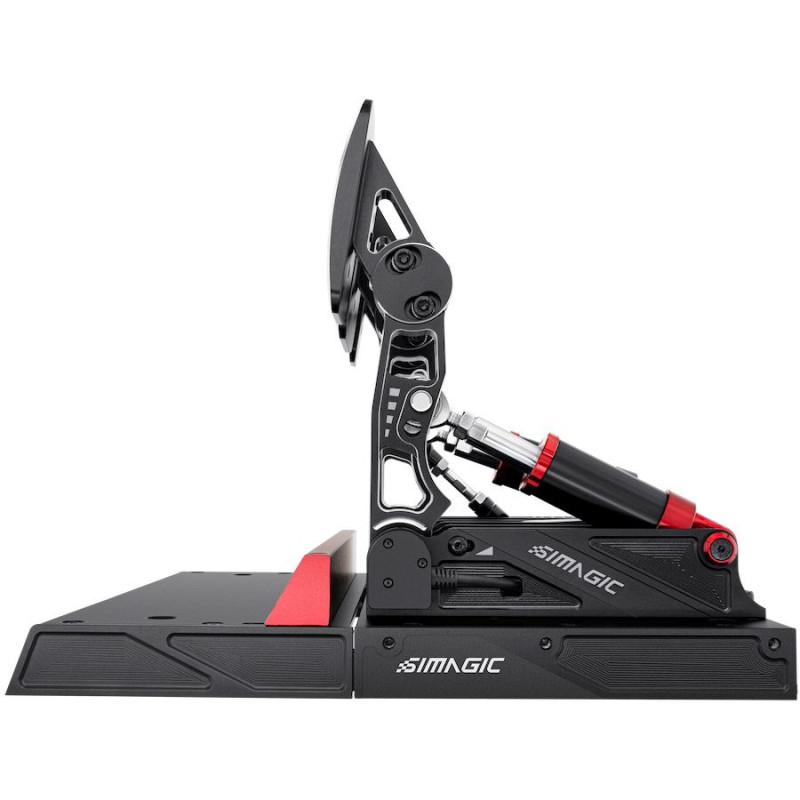

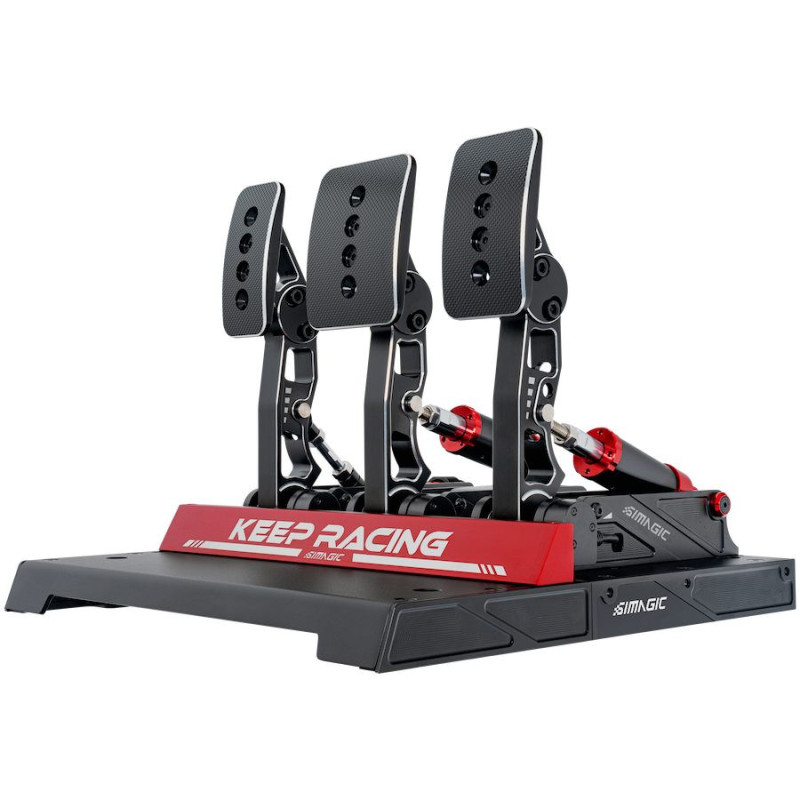

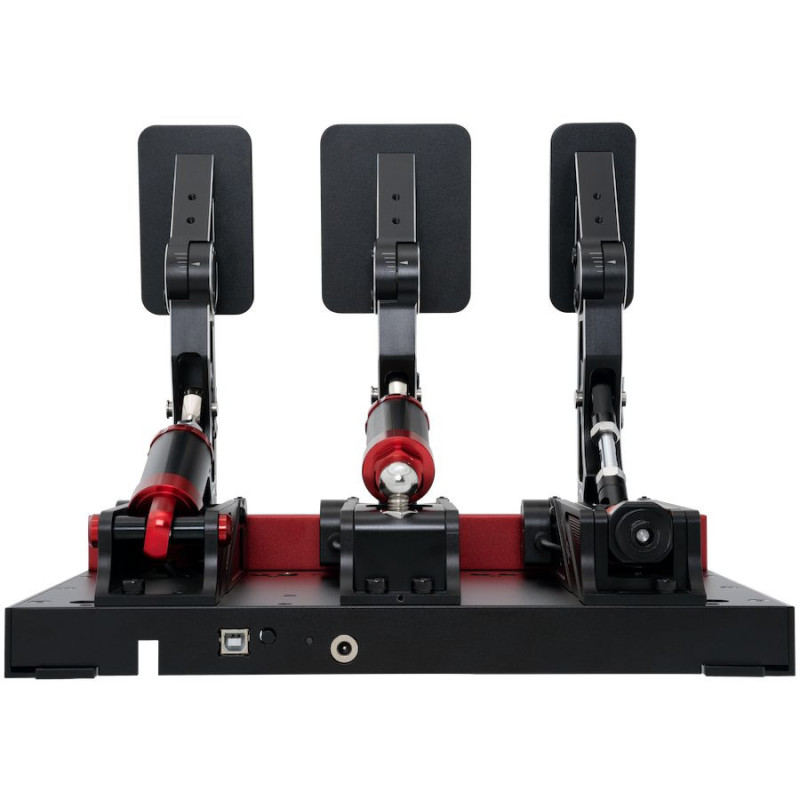

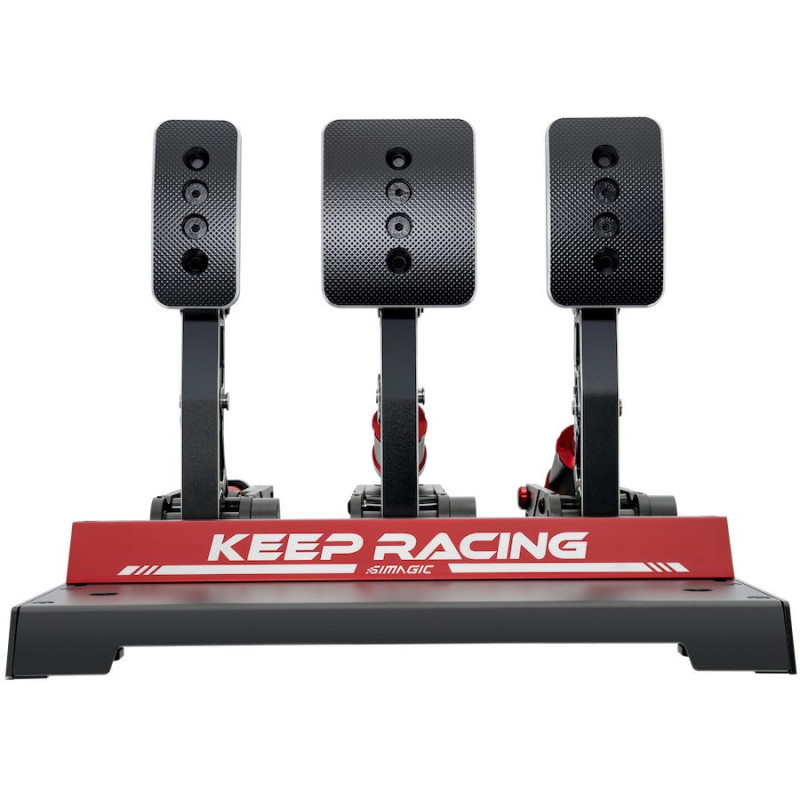

SIMAGIC Modular Pedal Set with 100 kg Load Cell and Hall Sensor, S303
Product reference:
16-6975472770994
SIMAGIC Modular Pedal Set with 100 kg Load Cell and Hall Sensor, S303
SIMAGIC Modular Pedal Set with 100 kg Load Cell and Hall Sensor, S303
Product reference:
16-6975472770994
SIMAGIC Modular Pedal Set with 100 kg Load Cell and Hall Sensor, S303
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
P1000 Modular Pedals
The new standard in performance.
Haptic Pedal Reactor
Hydraulic System
Inverted Installation Version
SIM RAY Lighting Module
Freely Customizable
Multiple Adjustments
Pro-Level Design,
Backed by
Real-World Experience
Jointly developed with real race engineers.
Ted Wang
Team KRC Technical Director, Chongqing Technology
Engineering Major, Masters from Oxford Brookes University
DJ
Director of SIMAGIC Motorsports Department,
Race chassis and data analysis engineer,
ACO SRO WSC Data Officer
FIA and CAMF Technical Delegate
Refreshed Design, Simplified Installation
- Installed and ready to race with just 8 screws.
- Comes complete with profile installation plate and wiring box.
- Easily matched and installed with profile brackets.
Pedals Built For Anything
Standard
Feel like you're strapped into a proper race car. The standard P1000 pedal setup mimics real-world race seating, delivering a direct, competitive driving experience with uncompromising pedal feel and control.
Inverted
Prefer the feel of a road car or GT-style cockpit? The P1000i inverted setup places the pedals in a hanging position, replicating passenger car ergonomics for added comfort and realism in endurance stints or casual sessions.
Dual Pedal Power. Formula
Ready.
P1000-F
A clean, compact dual-pedal setup made for formula-style rigs. Precision-tuned for throttle and brake performance, with modularity at its core. Upgrade or expand as your rig evolves.
P1000-FRS
Take it up a gear. The P1000-FRS adds hydraulic brake feedback for those who want a firmer, more realistic pedal feel under pressure. Ideal for serious sim racers who demand race-grade consistency.
Versatility for a Modern
Generation
Modular integrated design, with included rubber pads for quicker installation.
Customize and tune the P1000's to your liking.
Race Engineer Recomended
Setups
Opt for these setups for a better feel under braking.
GT4
Note: Select Loadcell sensor
TCR
Note: Select Loadcell sensor
For Sports Cars (Soft)
Note: Select Angle sensor
Dominate the Race Track
Load cell sensor and Hall angle sensor ready.
Use the Hall angle sensor for long travel, better for standard production cars,
or utilize the Load cell sensor for short travel, best for motorsports and formula-style cars
Full Metal Structure
- It's all about the details.
- Machined aluminum housing,
- polished and oxidized.
Meticulously Crafted for
Durability
Peak performance, every session.
CNC technology for maximum precision.
Built to last with meticulous durability testing.
An all-aluminum alloy metal structure ensures outstanding performance under intense usage.
Built to Adapt to Your Setup
Pedal spacing and height?
Fully adjustable,
with the option to configure
throttle and brake travel, too
Whatever Your Style,
Just Race.
- Pitch angle,
- pedal inputs...
- All configurable.
Take Immersion Even Further.
P-HPR (Haptic Pedal Reactors)
SIMAGIC's newly patented linear motor simulates the same forces experienced in real automobiles, offering truly realistic feedback. Fully adjustable via our intuitive SimPro Manager, the haptics are tunable to perfection, giving unprecedented immersion into anything you're racing.
P-HYS (Hydraulic System)
Provides accurate reproduction of damping and
rebound of genuine car brakes.
P-HTS (Hydraulic Throttle
System)
A 6-step adjustable damper that gives the throttle a configurable, weighty feeling.
Tune to your liking for the best driving experience.
Sim Ray Lighting Module
The optional *RGB heel stop (P-SRH) and *RGB bottom strip (P-SRB) supports telemetry data feedback and customizable lighting colors eg. red flashes on brakes and green on throttle. *P-SRB will receive future updates to support this.
SimPro Manager 2.0
SIMAGIC's signature suite for freedom in how you approach your racing.
Adjust deadzones, output curves, with support for the community-loved SimHub app
Upgrade As You Go
Some modular upgrades requires P-APS accessories power supply, for more details please contact customer service (all optional equipments only need 1 external battery)
P-SRH (Sim Ray - Heel Stop)
P-SRB (Sim Ray - Bar)
P-HPR (Haptic Pedals Reactor)
P-HYS (Hydraulic System)
P1000 Inversion Kit
P-HTS (Hydraulic Throttle System)
Technical Parameters
| Device Type | Modular Pedals |
| Device Location | External |
| Resolution | 12Bit (4096) |
| Connectivity Technology | Wired |
| Interface | USB |
| Adjustable Travel | Supported |
| Adjustable Spring Force Level | Clutch Brake |
| Loadcell Sensor | 100 kg |
| External Color | Black |
| Length (mm) | 334.8 mm |
| Width | 336 mm |
| Height | 267 mm |
| Nominal Weight | 5.65 kg |
| In the Box | USB Cable Quick Start Guide Installation Kit Pedal Springs Pedal Control Box |
| Warranty Term (month) | 24 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Length (mm) | 400 mm |
| Pack Width (mm) | 280 mm |
| Pack Height (mm) | 360 mm |
| Weight | 8.4 kg |
| Pack Weight Netto (kg) | 2.75 kg |
| Pieces in pack | 1 |
| Package Type | Retail |
| EAN Code | 6975472770994 |
