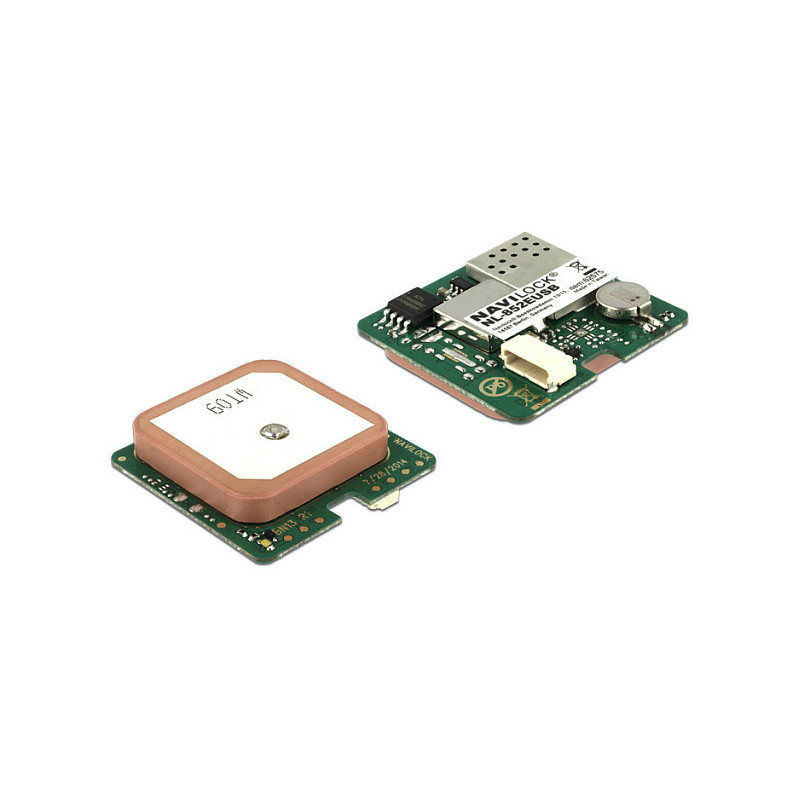

Navilock NL-852EUSB GPS receiver module

Navilock NL-852EUSB. Interface: USB, Sensitivity: -167 dBmW, Chipset: u-blox 8. Width: 30 mm, Depth: 30 mm, Height: 7.9 mm
GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses USB 2.0.
- Connector: WTB USB 2.0
- Chipset: u-blox 8 UBX-M8030-KT
- Frequency:
- GPS: L1, 1575.4200 MHz
- GLONASS: L1, 1602 (k x 0,5625) MHz
- BEIDOU COMPASS: B1, 1561.0980 MHz
- GALILEO E1, 1575.4200 MHz
- QZSS L1, 1575.4200 MHz
- Accepts the signals of up to 72 satellites at the same time
- Supports AssistNow online/offline,
- SBAS (WAAS, EGNOS, QZSS and MSAS)
- Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
- USB specification 2.0
- Auto Baud Rate up to 115200 bps
- Update rate:
- single GNSS: 18 Hz (e.g. GPS solo)
- multi GNSS: 10 Hz (e.g. GPS+GLONASS)
- Sensitivity: -167 dBm
- LED-indicator for GPS-status
- Operating temperature:
- 40 °C ~ 85 °C without battery
- 20 °C ~ 60 °C with battery
- Power supply: 5 Volt
- Current consumption: max. 45 mA
- Cold start in ca. 26 seconds
- Hot start in ca. 1 second
- Positioning accuracy:
- 2.5 m CEP (Circular Error Probable) and
- 2.0 m CEP with SBAS
- Dimension (LxWxH): ca. 30 x30 x 7.90 mm

GPS Performance

Interface: USB
Chipset: u-blox 8
Navigation signals supported: B1, E1, L1
Frequency: 1575.42 MHz
Sensitivity: -167 dBmW
Acquisition times - cold: 26 s
Acquisition times - hot: 1 s
Navigation protocols: GGA, GSA, GSV, RMC, VTG

Technical details

Product colour: Brown, Green, White
WAAS capability: Yes

Weight dimensions

Width: 30 mm
Depth: 30 mm
Height: 7.9 mm

Indication

LED indicators: Yes
