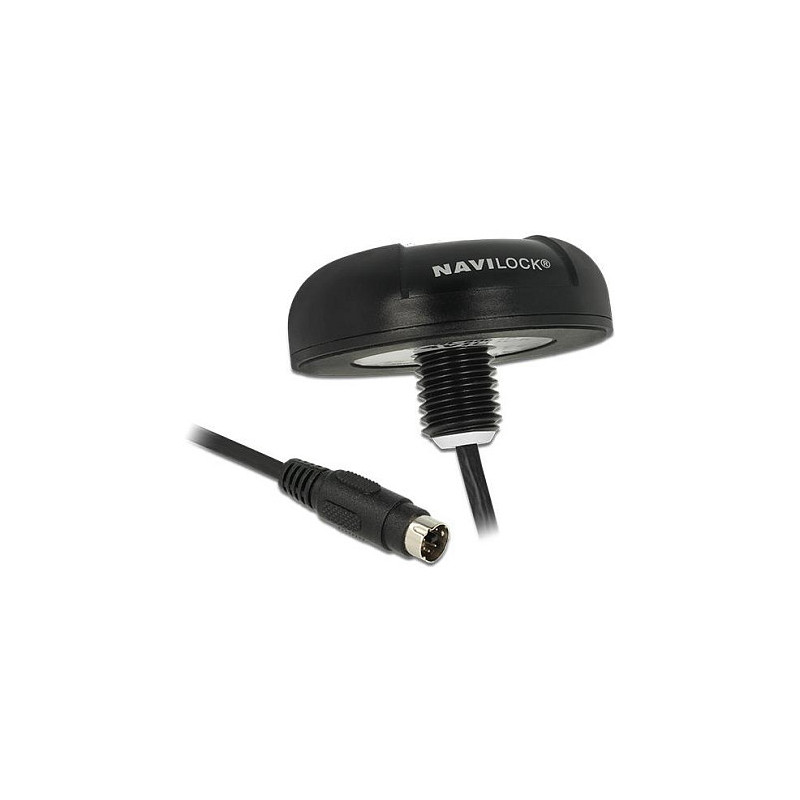

Navilock NL-8004P GPS receiver module

Navilock NL-8004P. Interface: MD6 Navilock, Sensitivity: -167 dBmW, Channels quantity: 72 channels. Width: 62 mm, Depth: 62 mm, Height: 21 mm. Windows operating systems supported: Windows 10 Home, Windows 10 Pro, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7...
The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-8004P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.

GPS Performance

Interface: MD6 Navilock
Chipset: u-blox 8
Navigation signals supported: L1
Frequency: 1575.42 MHz
Sensitivity: -167 dBmW
Channels quantity: 72 channels
Acquisition times - cold: 26 s
Acquisition times - hot: 1 s
GPS accuracy - position: 2.5 m
Update rate: 18 Hz
Baud rate: 115.2 Kbit/s
Navigation protocols: GGA, GSA, GSV, NMEA 0183, RMC, VTG
Antenna: Internal

Technical details

Product colour: Black
WAAS capability: Yes

Weight dimensions

Width: 62 mm
Depth: 62 mm
Height: 21 mm

Software

Windows operating systems supported: Windows 10 Home, Windows 10 Pro, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 8, Windows 8.1
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Packaging content

Manual: Yes
