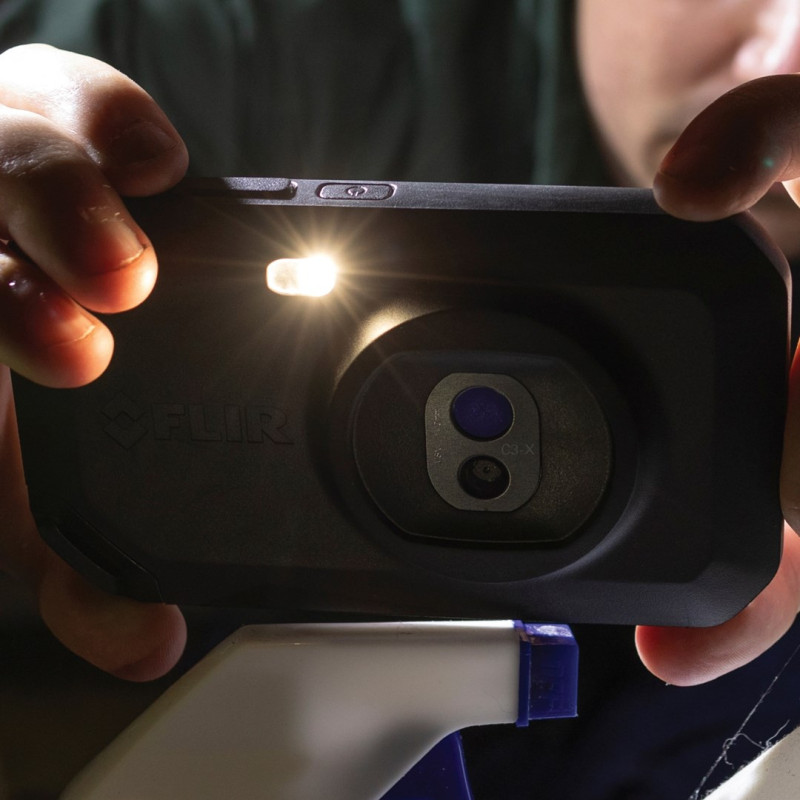

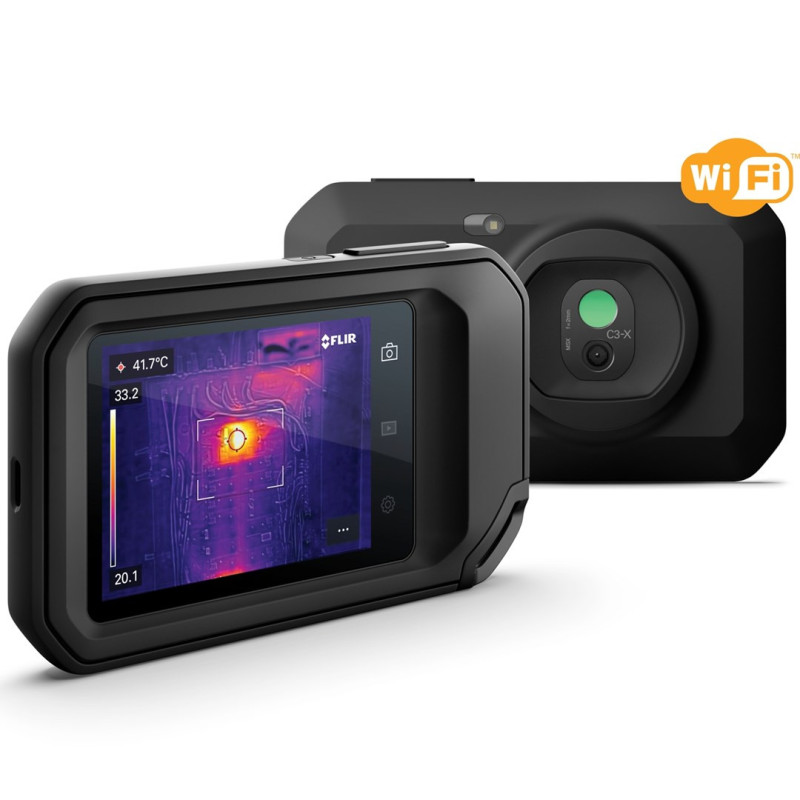

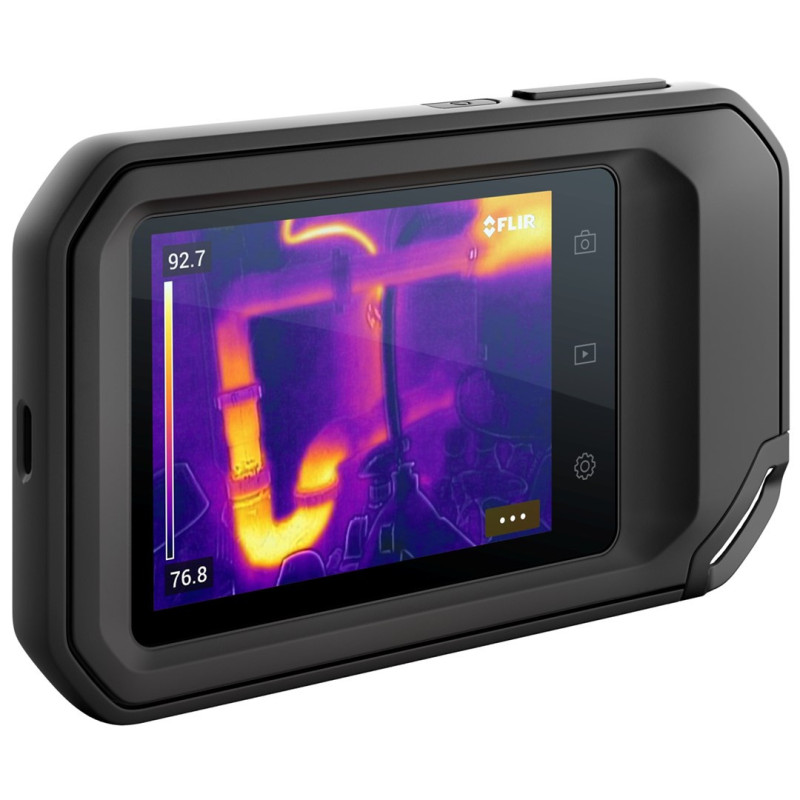

FLIR C3-X thermal imaging camera Black 1800 mAh Vanadium Oxide Uncooled Focal Plane Arrays Built-in display 128 x 96 pix
Product reference:
6-C3-X
FLIR C3-X thermal imaging camera Black 1800 mAh Vanadium Oxide Uncooled Focal Plane Arrays Built-in display 128 x 96 pixels LCD 640 x 480 pixels
FLIR C3-X thermal imaging camera Black 1800 mAh Vanadium Oxide Uncooled Focal Plane Arrays Built-in display 128 x 96 pix
Product reference:
6-C3-X
FLIR C3-X thermal imaging camera Black 1800 mAh Vanadium Oxide Uncooled Focal Plane Arrays Built-in display 128 x 96 pixels LCD 640 x 480 pixels
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
6 - 11
business days
| Sustainability certificates | RoHS |
| Certification | EN 301 487-1, EN 301 489-17, CC 47 CFR Part 15 Class B, EN 61000-4-8 level 5, ETSI EN 300 328EN 301 489, FCC Title 47 CFR Part 15, RSS-247 Issue 2, UL 1642, EN 62133 ed 2, BC Title 20, 10 CFR Section 430.23 (aa), EN 62368-1, REACH Regulation EC 1907/2006 |
| Package type | Box |
| Product colour | Black |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -10 - 50 °C |
| International Protection (IP) code | IP54 |

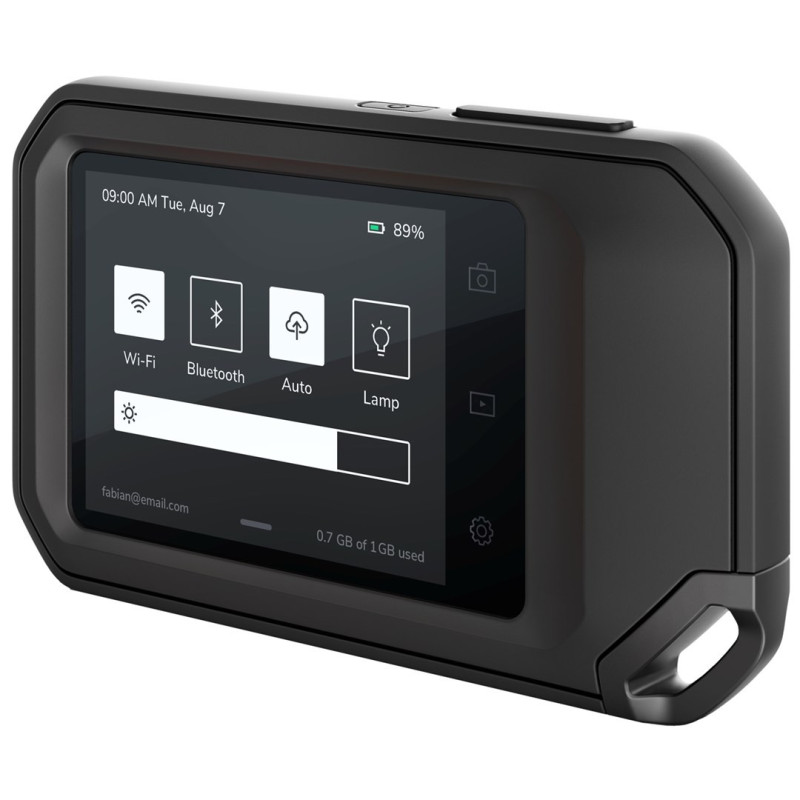

| Display diagonal | 8.89 cm (3.5") |
| Built-in display | Yes |
| Display resolution | 640 x 480 pixels |
| Display type | LCD |
| Housing material | Aluminium |
| Package weight | 517 g |
| Package height | 94 mm |
| Weight | 190 g |
| Package depth | 117 mm |
| Package width | 160 mm |
| Width | 138 mm |
| Depth | 84 mm |
| Height | 24 mm |
| Compatible memory cards | Not supported |
| Wi-Fi | Yes |
| Sensor resolution (thermal module) | 128 x 96 pixels |
| Temperature measurement range | -20 - 300 °C |
| GPS (satellite) | No |
| Thermal frame rate | 8.7 Hz |
| Standard palettes | Grayscale, High Contrast, Hot metal, Ironbow |
| IFOV (spatial resolution) | 7.9 mRad |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal sensitivity (NETD) | 70 mK |
| Horizontal field of view | 53.6° |
| Infrared spectral band | 8 - 14 µm |
| Cables included | USB Type-C |
| Wrist strap included | Yes |
| Batteries included | Yes |
| Manual | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| USB port | Yes |
| Input current | 1 A |
| Battery technology | Lithium-Ion (Li-Ion) |
| Input voltage | 3.7 V |
| Battery recharge time | 2 h |
| Battery capacity | 1800 mAh |
| Battery life (max) | 4 h |
| Rechargeable battery | Yes |
| Fixed focus | Yes |
